[Simplified Adjustments] Z-Axis / Feed Screw / High Load
![[Simplified Adjustments] Z-Axis / Feed Screw / High Load](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/10302036850.jpg?$product_main$)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information

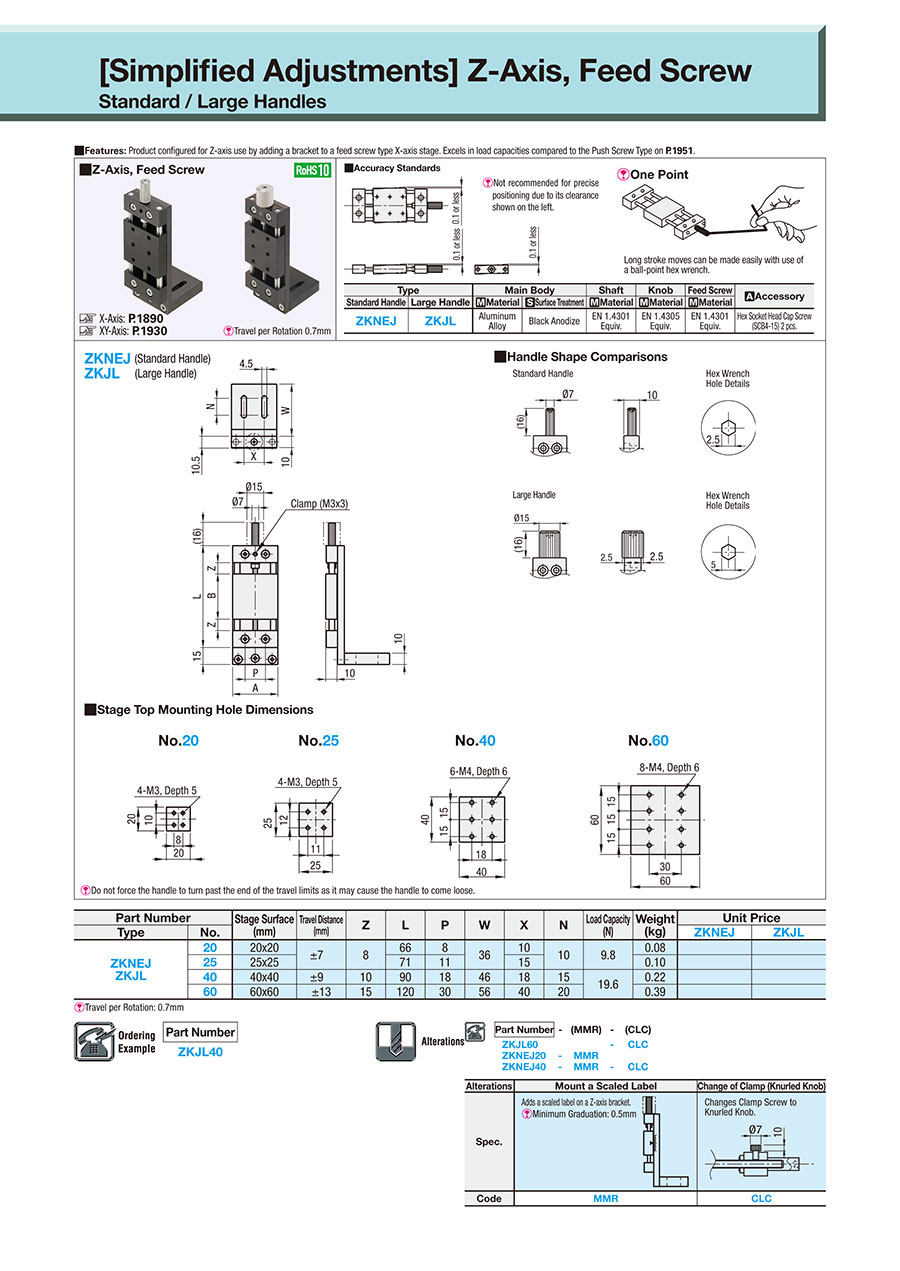

![[Simplified Adjustments] Z-Axis/Feed Screw/High Load:Related Image](http://uk.misumi-ec.com/linked/item/10302036850/img/drw_01.gif)
| Type | Main Body | Shaft | Knob | Feed Screw | Accessory | ||
| Standard Handle | Large Handle | Material | Surface Treatment | Material | Material | Material | |
| ZKNEJ | ZKJL | Aluminum Alloy | Black Anodize | EN 1.4301 Equiv. | EN 1.4305 Equiv. | EN 1.4301 Equiv. | Hex Socket Head Cap Screw (SCB4-15) 2 pcs. |
Specifications
| Part Number |
| ZKJL40 |
| Part Number | Stage Surface (mm) | Travel Distance (mm) | Z | L | P | W | X | N | Load Capacity (N) | Weight (kg) | Unit Price | ||
| Type | No. | ZKNEJ | ZKJL | ||||||||||
| ZKNEJ ZKJL | 20 | 20x20 | ±7 | 8 | 66 | 8 | 36 | 10 | 10 | 9.8 | 0.08 | ||
| 25 | 25x25 | 71 | 11 | 15 | 0.10 | ||||||||
| 40 | 40x40 | ±9 | 10 | 90 | 18 | 46 | 18 | 15 | 19.6 | 0.22 | |||
| 60 | 60x60 | ±13 | 15 | 120 | 30 | 56 | 40 | 20 | 0.39 | ||||
Alterations

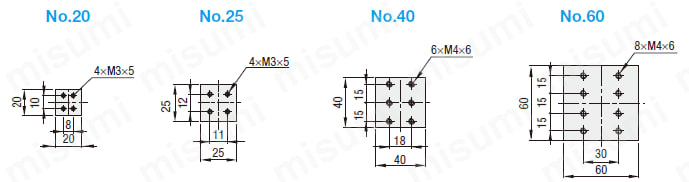

![[Simplified Adjustments] Z-Axis/Feed Screw/High Load:Related Image](http://uk.misumi-ec.com/linked/item/10302036850/img/alt_01.gif)
