    MISUMI

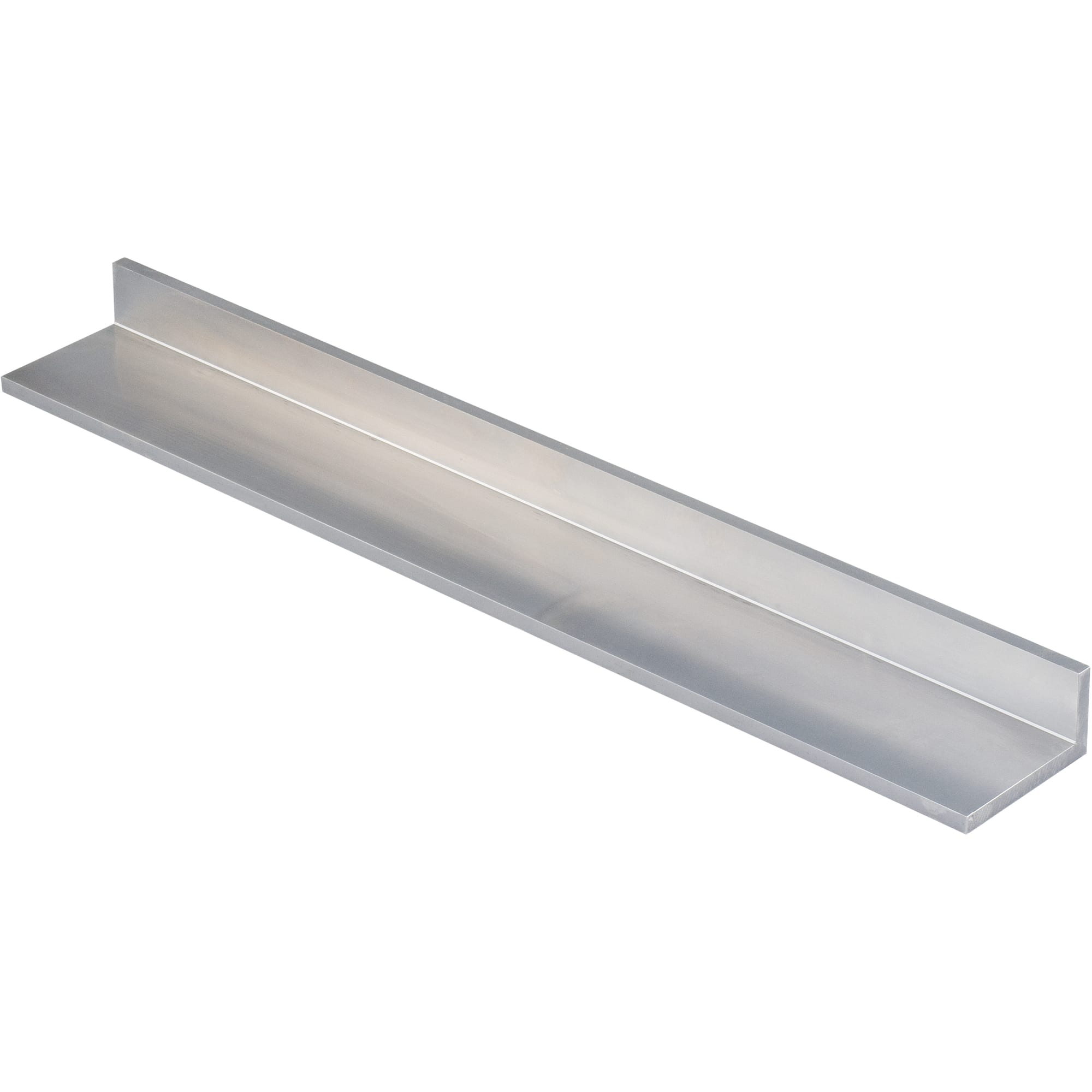

    L-Shaped Angles / Outside Datum Fixed Type

    L-Shaped Angles / Outside Datum Fixed Type
    • L-Shaped Angles / Outside Datum Fixed Type
    • L-Shaped Angles / Outside Datum Fixed Type

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

    Outline drawing and specifications table

    L-Shaped Angles/Outside Datum Fixed Type:Related Image

    TypeMaterial
    LAJSEN 1.0038 Equiv.
    LAJCEN 1.1206 Equiv.

    Specifications

    Part Number-A-B-L
    LAJS10-A50-B50-L1000
    Part NumberABLUnit Price
    TypeTL20~50L51~75L76~100L101~200L201~400L401~600L601~800L801~1000L1001~1200
    LAJS
    (EN 1.0038 Equiv.)    		5505020~1200      ---
    7550      ---
    70      ---
    65050      ---
    7550      ---
    70      ---
    105050
    7570
    100
    125050
    7570
    100
    155050
    7570
    100

    Part NumberABLUnit Price
    TypeTL20~50L51~75L76~100L101~200L201~400L401~600L601~800L801~1000L1001~1200
    LAJC
    (EN 1.1206 Equiv.)    		5505020~1200      ---
    7550      ---
    70      ---
    65050      ---
    7550      ---
    70      ---
    105050
    7570
    100
    125050
    7570
    100
    155050
    7570
    100

    Part number list

    Number of items
  • 1
    • Part number
    LAJC6-A[50,75]-B[50,70]-L[20-600/1]
    LAJC12-A[50,75,100]-B[50,70]-L[20-1200/1]
    LAJC15-A[50,75,100]-B[50,70]-L[20-1200/1]
    LAJS5-A[50,75]-B[50,70]-L[20-600/1]
    LAJS6-A[50,75]-B[50,70]-L[20-600/1]
    LAJS10-A[50,75,100]-B[50,70]-L[20-1200/1]
    LAJS12-A[50,75,100]-B[50,70]-L[20-1200/1]
    LAJS15-A[50,75,100]-B[50,70]-L[20-1200/1]

    Material

    T (Plate Thickness)

    (mm)

    A

    (mm)

    B

    (mm)

    L

    (mm)

    		RoHS?Minimum order quantity
    [Carbon steel] EN 1.1206 Equiv.
    6
    50 ～ 75
    50 ～ 70
    20 ～ 600
    10
    1 pieces
    [Carbon steel] EN 1.1206 Equiv.
    12
    50 ～ 100
    50 ～ 70
    20 ～ 1200
    10
    1 pieces
    [Carbon steel] EN 1.1206 Equiv.
    15
    50 ～ 100
    50 ～ 70
    20 ～ 1200
    10
    1 pieces
    [Carbon steel] EN 1.0038 Equiv.
    5
    50 ～ 75
    50 ～ 70
    20 ～ 600
    10
    1 pieces
    [Carbon steel] EN 1.0038 Equiv.
    6
    50 ～ 75
    50 ～ 70
    20 ～ 600
    10
    1 pieces
    [Carbon steel] EN 1.0038 Equiv.
    10
    50 ～ 100
    50 ～ 70
    20 ～ 1200
    10
    1 pieces
    [Carbon steel] EN 1.0038 Equiv.
    12
    50 ～ 100
    50 ～ 70
    20 ～ 1200
    10
    1 pieces
    [Carbon steel] EN 1.0038 Equiv.
    15
    50 ～ 100
    50 ～ 70
    20 ～ 1200
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
    -
    ( - )
    7 working days
  • 1

    • More Information

    Basic information

    [Features] Precision machined from equal angle steel that can support lengths up to 1,200 mm.
