Roller Pushers / Low Particle Generation Type
Mouse over image to enlarge
Part number:

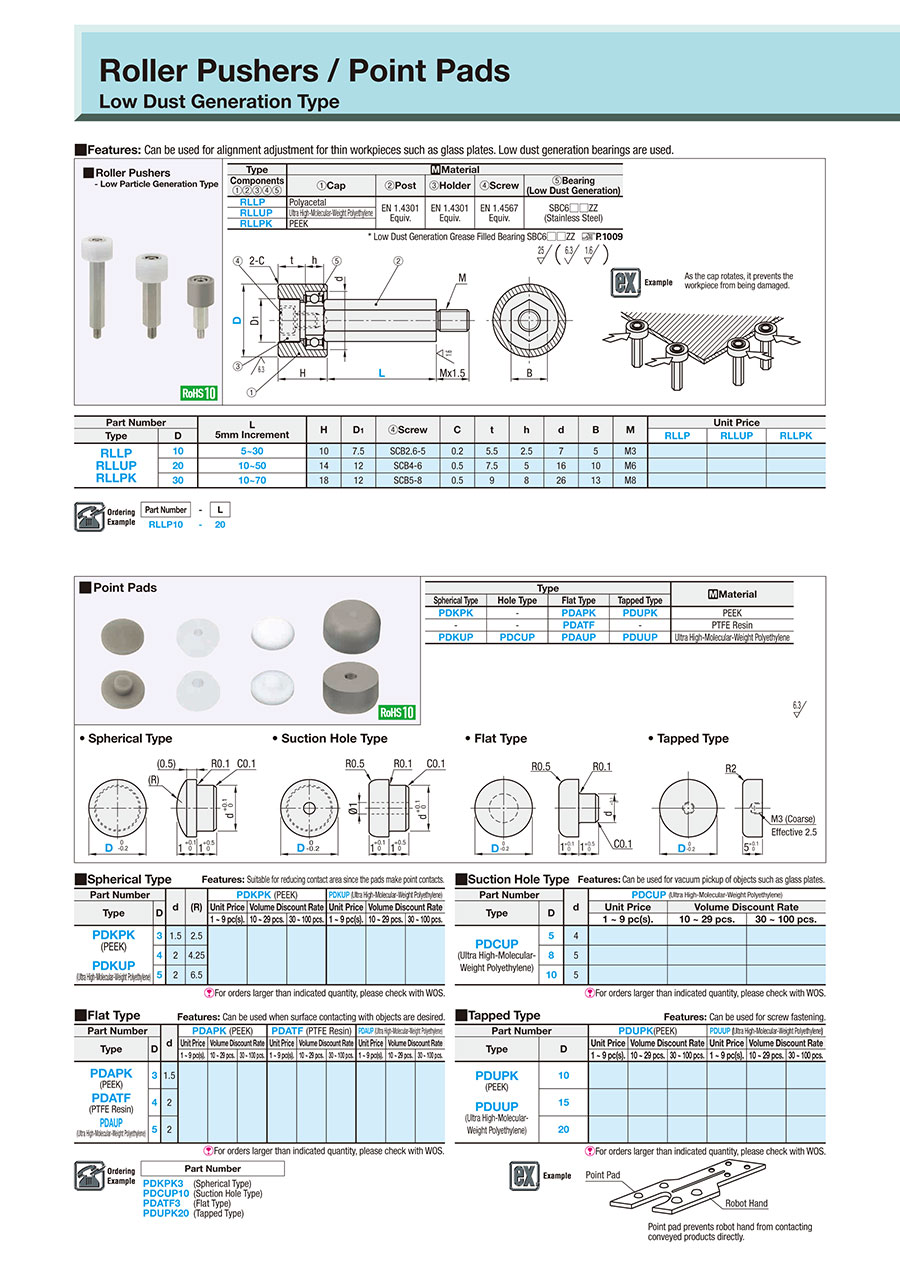

possible part numbers found.Outline drawing and specifications table
| Type | [M] Material | ||||
| Components (1)(2)(3)(4)(5) | (1) Cap | (2) Post | (3) Holder | (4) Screw | (5) Bearing (For low dust generation) |
| RLLP | Polyacetal | EN 1.4301 Equiv. | EN 1.4301 Equiv. | EN 1.4567 Equiv. | SBC6□□ZZ (Stainless Steel) |
| RLLUP | Ultra High-Molecular-Weight Polyethylene | ||||
| RLLPK | PEEK | ||||
Specification Table
| Part Number | — | L |
| RLLP10 | — | 20 |
| Part Number | L 5 mm Increments | H | D1 | (4) Screw | C | t | h | d | B | M | |
| Type | D | ||||||||||
| RLLP RLLUP RLLPK | 10 | 5 to 30 | 10 | 7.5 | SCB2.6−5 | 0.2 | 5.5 | 2.5 | 7 | 5 | M3 |
| 20 | 10 to 50 | 14 | 12 | SCB4−6 | 0.5 | 7.5 | 5 | 16 | 10 | M6 | |
| 30 | 10 to 70 | 18 | 12 | SCB5−8 | 0.5 | 9 | 8 | 26 | 13 | M8 | |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 6 working days |
- ( - ) | 6 working days |
- ( - ) | 6 working days |
- ( - ) | 6 working days |
- ( - ) | 6 working days |
- ( - ) | 6 working days |
- ( - ) | 6 working days |
- ( - ) | 6 working days |
- ( - ) | 6 working days |
More Information
Outline and specifications
App. Example
As the cap rotates, it prevents the workpiece from being damaged.
