[Simplified Adjustments] XY-Axis / Feed Screw / Large Lead Type

[Simplified Adjustments] XY-Axis / Feed Screw / Large Lead Type

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

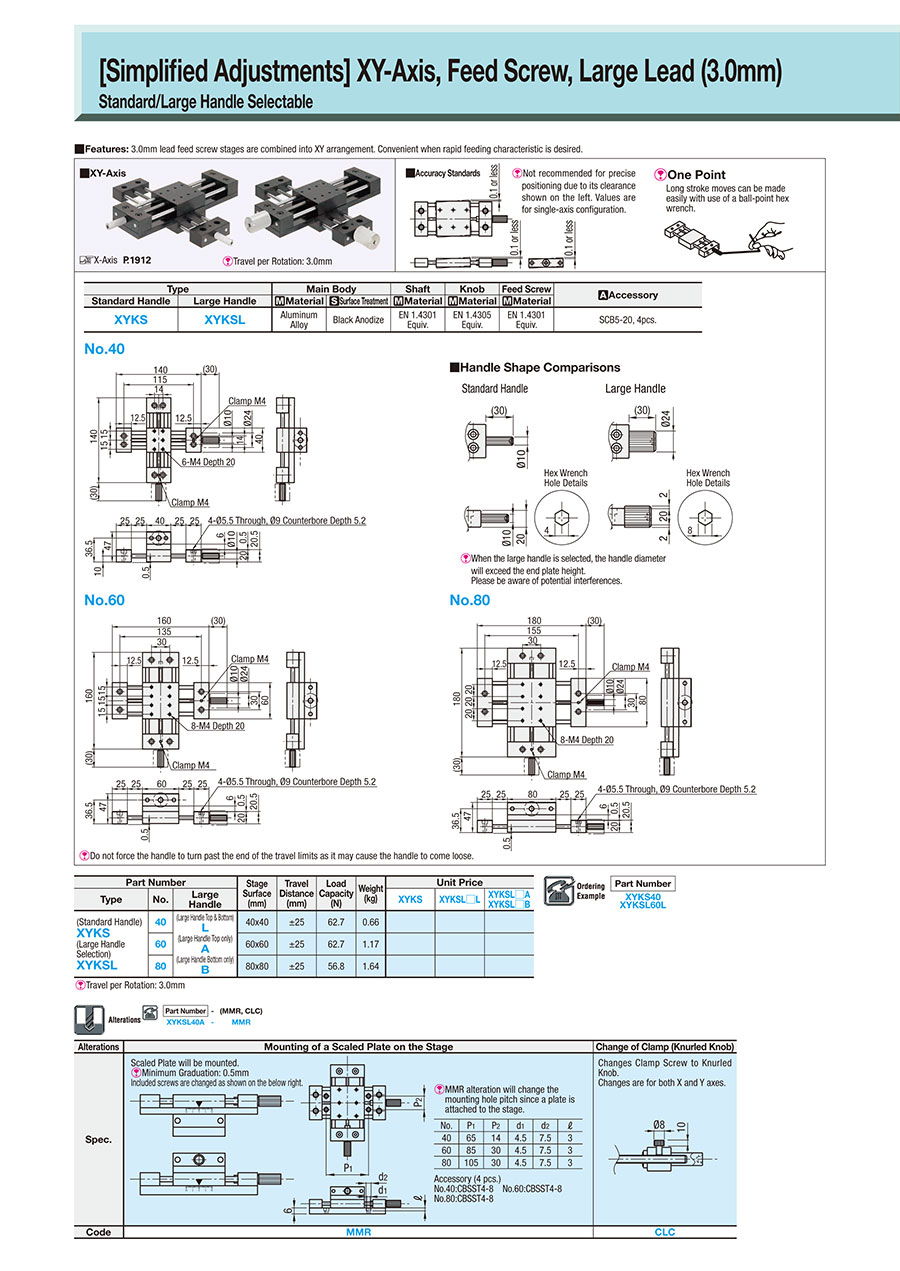

Outline drawing and specifications table

No. 40 No. 60 No. 80
■ Knob Shape Comparisons Standard Knob Hex Wrench
 Hole Details Large Knob Hex Wrench
 Hole Details [Simple Adjustment]X-Axis Push Screw - Standard: Related Image
[ ! ] Do not force the knob to turn past the end of the travel limits as it may cause the knob to come loose.
[!] When the large knob is selected, the handle diameter will exceed the end plate height. Please be aware of potential interferences.
[ ! ] Travel per Rotation 3.0 mm
■ Accuracy Standards
[ ! ] Not recommended for precise positioning due to its clearance shown on the left.
      Values are for single-axis configuration.

[ ! ] One Point

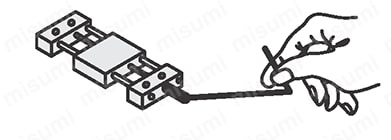

Long stroke moves can be made easily with use of a ball-point hex wrench.
TypeMain BodyShaftKnobFeed ScrewAccessory
Standard KnobLarge KnobMaterialSurface TreatmentMaterialMaterialMaterial
XYKSXYKSLAluminum AlloyBlack AnodizeEN 1.4301 Equiv.EN 1.4305 Equiv.EN 1.4301 Equiv.SCB5-20 × 4 pcs.

Specification Table

Part Number
XYKS40
XYKSL60L

Part NumberStage Surface
(mm)		Travel Distance
(mm)		Load Capacity
(N)		Weight
(kg)
TypeNo.Large Knob
When large knob is selected
(Standard Knob)
XYKS
(Large Knob Selection)
XYKSL		40(Large Knob: Top & Bottom)
L
(Large Knob: Top only)
A
(Large Knob: Bottom only)
B		40 × 40±2562.70.66
6060 × 60±2562.71.17
8080 × 80±2556.81.64
Travel per Rotation: 3.0 mm

Alterations

Part Number—(MMR·CLC)
XYKSL40A—MMR


AlterationsMounting of Plate with Scale StickerChange of Clamp (Knurled Knob)

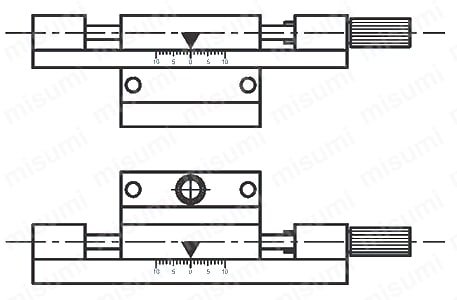

Spec.Plate with Scale Sticker will be attached.
"!" Resolution: 0.5 mm
Included screws are changed as shown on the below right.

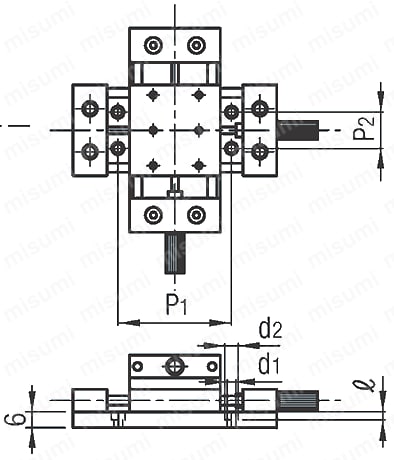

[ ! ] MMR alteration will change the mounting hole pitch
since a plate is attached to the stage
.
No.P1P2d1d2ℓ
4065144.57.53
6085304.57.53
80105304.57.53
Accessories (4 pcs.)
No. 40: CBSST4-8 No. 60: CBSST4－8
No. 80: CBSST4－8

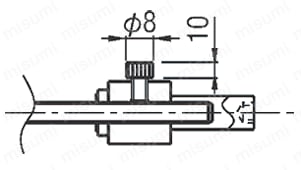

Changes Clamp Screw to Knurled Knob.
Changes are for both X and Y axes.
CodeMMRCLC

Part number list

Number of items
  • 1
    • Part number
    XYKS40
    XYKS60
    XYKS80
    XYKSL40A
    XYKSL40B
    XYKSL40L
    XYKSL60A
    XYKSL60B
    XYKSL60L
    XYKSL80A
    XYKSL80B
    XYKSL80L

    Table Size (Length) L

    (mm)

    Table Size (Width) W

    (mm)

    Handle Shape

    		Minimum order quantity
    40
    40
    Standard Handle
    1 pieces
    60
    60
    Standard Handle
    1 pieces
    80
    80
    Standard Handle
    1 pieces
    40
    40
    A (Large Handle Top only)
    1 pieces
    40
    40
    B (Large Handle Bottom only)
    1 pieces
    40
    40
    L (Large Handle Top & Bottom)
    1 pieces
    60
    60
    A (Large Handle Top only)
    1 pieces
    60
    60
    B (Large Handle Bottom only)
    1 pieces
    60
    60
    L (Large Handle Top & Bottom)
    1 pieces
    80
    80
    A (Large Handle Top only)
    1 pieces
    80
    80
    B (Large Handle Bottom only)
    1 pieces
    80
    80
    L (Large Handle Top & Bottom)
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    207.81 €
    ( 247.29 € )
    10 working days
    220.40 €
    ( 262.28 € )
    10 working days
    233.00 €
    ( 277.27 € )
    10 working days
    211.57 €
    ( 251.77 € )
    10 working days
    211.57 €
    ( 251.77 € )
    10 working days
    215.35 €
    ( 256.27 € )
    10 working days
    224.16 €
    ( 266.75 € )
    10 working days
    224.16 €
    ( 266.75 € )
    10 working days
    227.95 €
    ( 271.26 € )
    10 working days
    236.77 €
    ( 281.76 € )
    10 working days
    236.77 €
    ( 281.76 € )
    10 working days
    240.54 €
    ( 286.24 € )
    10 working days
