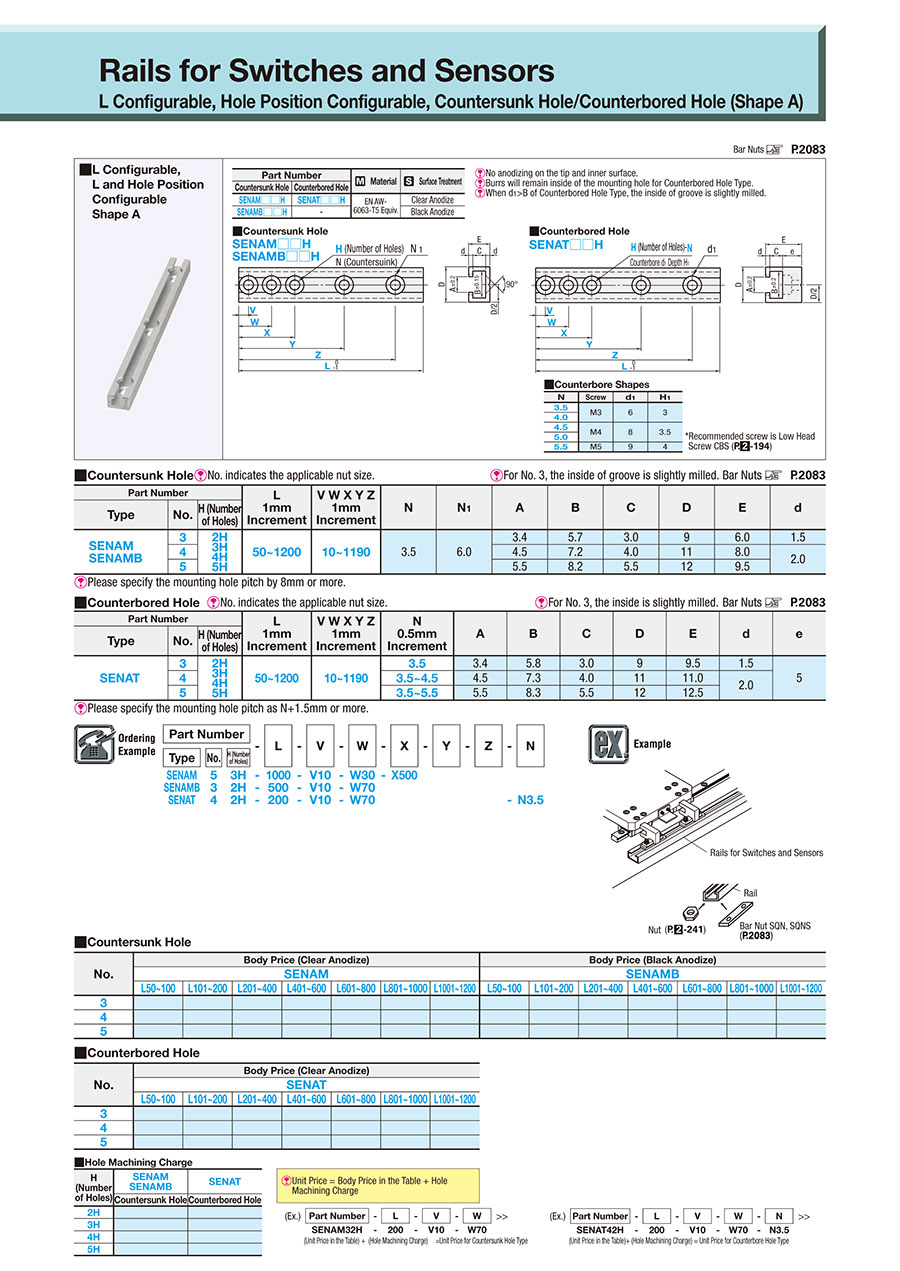

Rails for Switch and Sensor / L Dimension Hole Position Configurable
Part number:
possible part numbers found.Outline drawing and specifications table
■Countersunk hole
SENAM□□H
SENAMB□□H
SENAM□□H
SENAMB□□H
■Counterbored hole
SENAT□□H
SENAT□□H
■Counterbore shapes
* Recommended screw is low head screw CBS.
| N | Screw | d1 | H1 |
| 3.5 | M3 | 6 | 3 |
| 4.0 | |||
| 4.5 | M4 | 8 | 3.5 |
| 5.0 | |||
| 5.5 | M5 | 9 | 4 |
| Part Number | [M] Material | [S] Surface Treatment | |
| Countersunk Hole | Counterbored Hole | ||
| SENAM□□H | SENAT□□H | EN AW−6063−T5 Equiv. | Clear Anodize |
| SENAMB□□H | — | Black Anodize | |
[ ! ] Burrs will remain inside of the mounting hole for counterbored hole type.
[ ! ] When d1 > B of counterbored hole type, the inside of groove is slightly milled.
Specification Table
| Part Number | — | L | — | V | — | W | — | X | — | Y | — | Z | — | N | ||||
| Type | No. | H (Number of holes) | ||||||||||||||||
| SENAM SENAMB SENAT | 5 3 4 | 3H 2H 2H | — — — | 1000 500 200 | — — — | V10 V10 V10 | — — — | W30 W70 W70 | — | X500 | — | N3.5 | ||||||
■Countersunk hole [!] No. indicates the applicable nut size.
[ ! ] For No. 3, the inside of groove is slightly milled.
[ ! ] Please specify the mounting hole pitch by 8 mm or more.
[ ! ] For No. 3, the inside of groove is slightly milled.
| Part Number | L 1 mm increments | VWXYZ 1 mm increments | N | N1 | A | B | C | D | E | d | ||
| Type | No. | H (Number of holes) | ||||||||||
| SENAM SENAMB | 3 | 2H 3H 4H 5H | 50 to 1200 | 10 to 1190 | 3.5 | 6.0 | 3.4 | 5.7 | 3.0 | 9 | 6.0 | 1.5 |
| 4 | 4.5 | 7.2 | 4.0 | 11 | 8.0 | 2.0 | ||||||
| 5 | 5.5 | 8.2 | 5.5 | 12 | 9.5 | |||||||
■Counterbored hole [!] No. indicates the applicable nut size.
[ ! ] For No. 3, the inside is slightly milled.
[ ! ] Please specify the mounting hole pitch as N + 1.5 mm or more.
[ ! ] For No. 3, the inside is slightly milled.
| Part Number | L 1 mm increments | VWXYZ 1 mm increments | N 0.5 mm increments | A | B | C | D | E | d | e | ||
| Type | No. | H (Number of holes) | ||||||||||
| SENAT | 3 | 2H 3H 4H 5H | 50 to 1200 | 10 to 1190 | 3.5 | 3.4 | 5.8 | 3.0 | 9 | 9.5 | 1.5 | 5 |
| 4 | 3.5 to 4.5 | 4.5 | 7.3 | 4.0 | 11 | 11.0 | 2.0 | |||||
| 5 | 3.5 to 5.5 | 5.5 | 8.3 | 5.5 | 12 | 12.5 | ||||||
App. Example
Compact nut
Bar nut SQN, SQNS
- ·Recommended mounting screws for the countersunk holes are cross recessed flat head machine screws M3.
- ·Recommended mounting bolts for the counterbored holes are the low head screws CBS.
- ·Applicable nuts for rail grooves are compact nuts and bar nuts SQN and SQNS.
