    Compact Contact Switches / NC Type

    Compact Contact Switches / NC Type

    Mouse over image to enlarge

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

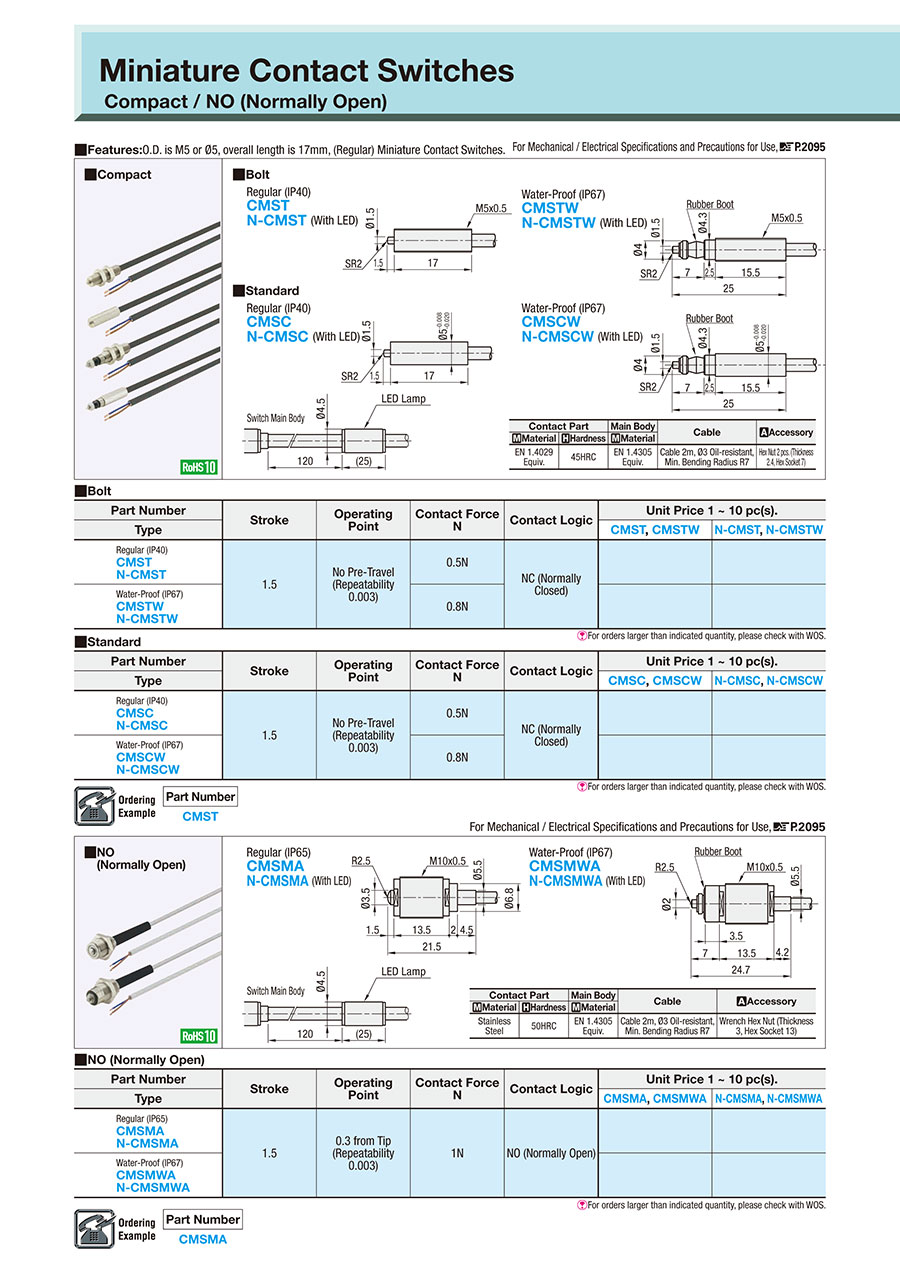

    Outline drawing and specifications table

    ■BoltGeneral Type (IP40)
    CMST
    N－CMST (With LED)    Waterproof (IP67)
    CMSTW
    N－CMSTW (With LED)    ■StandardGeneral Type (IP40)
    CMSC
    N－CMSC (With LED)    Waterproof (IP67)
    CMSCW
    N－CMSCW (With LED)    Switch body[ ! ] Please use it with 24 V DC/10 mA or lower.

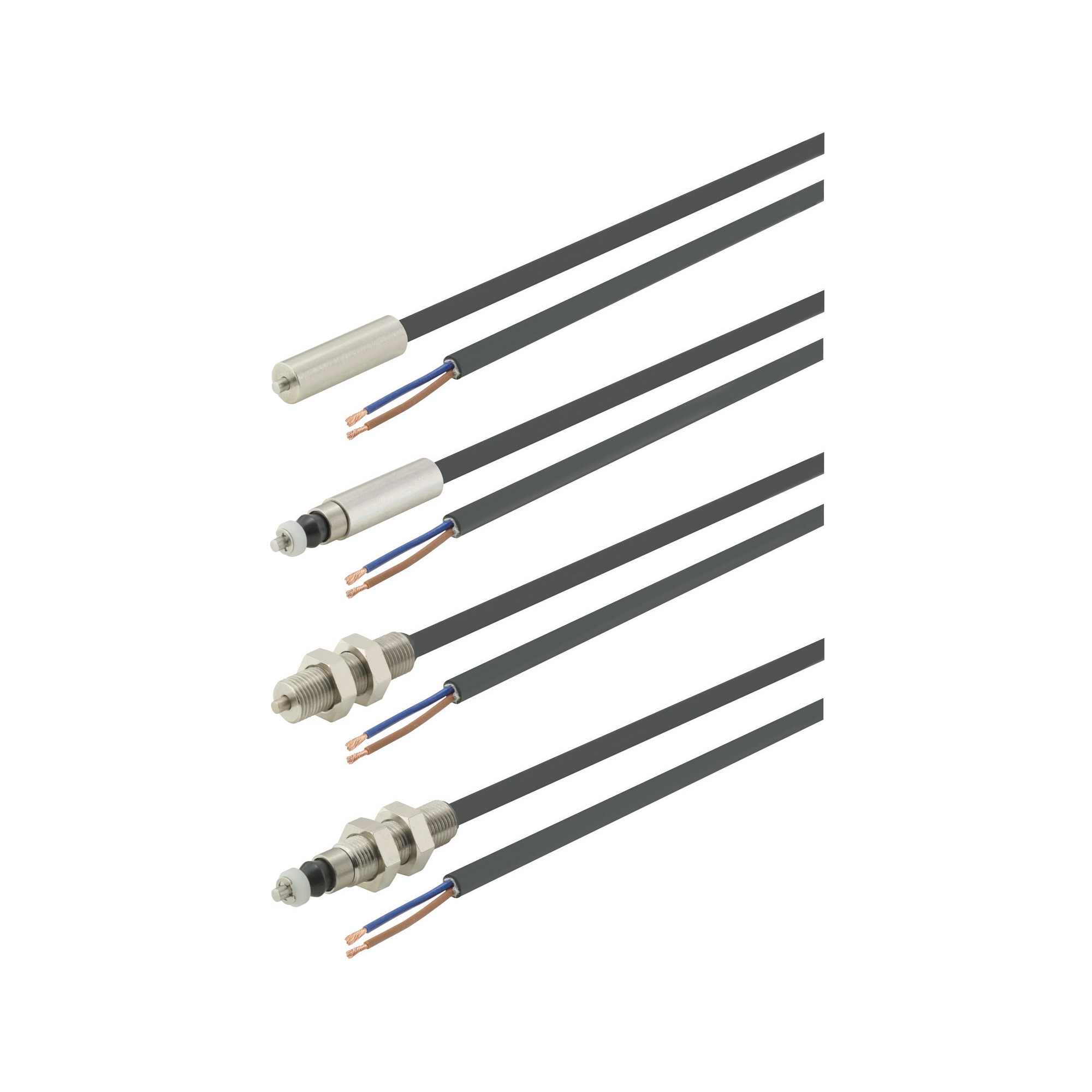

      　    Miniature Contact Switches - NC Type: Related Image


    Contact PartMain BodyCable[A] Accessory
    [M] Material[H] Hardness[M] Material
    EN 1.4029 Equiv.45HRCEN 1.4305 Equiv.ø3 Oil-resistance cable
    2 m Min. Bending Radius R7    		Hex Nut 2 pcs.
    (Thickness 2.4, Hex Socket 7)



    Specification Table

    Part Number
    CMST
    ■Bolt
    Part NumberStrokeOperating PointContact Force
    N    		Contact Logic
    Type
    Regular (IP40)
    CMST
    N−CMST    		1.5No Pre-Travel
    (Repeatability 0.003)    		0.5 NNC
    (Normally Closed)
    Water-Proof (IP67)
    CMSTW
    N−CMSTW    		0.8 N

    ■Standard
    Part NumberStrokeOperating PointContact Force
    N    		Contact Logic
    Type
    Regular (IP40)
    CMSC
    N−CMSC    		1.5No Pre-Travel
    (Repeatability 0.003)    		0.5 NNC
    (Normally Closed)
    Water-Proof (IP67)
    CMSCW
    N−CMSCW    		0.8 N

    Part number list

    Number of items
  • 1
    • Part number
    CMSC
    CMSCW
    CMST
    CMSTW
    N-CMSC
    N-CMSCW
    N-CMST
    N-CMSTW

    Main Body Shape

    Environment

    Cylinder O.D.

    (mm)

    Screw Nominal (M)

    Contact Force

    (N)

    Protection Structure

    LED

    		RoHS?Minimum order quantity
    Standard Type
    Standard
    5
    -
    0.5
    IP40
    W/o LED
    10
    1 pieces
    Standard Type
    Waterproof Type
    5
    -
    0.8
    IP67
    W/o LED
    10
    1 pieces
    Screw Type
    Standard
    -
    M5x0.5
    0.5
    IP40
    W/o LED
    10
    1 pieces
    Screw Type
    Waterproof Type
    -
    M5x0.5
    0.8
    IP67
    W/o LED
    10
    1 pieces
    Standard Type
    Standard
    5
    -
    0.5
    IP40
    With LED
    10
    1 pieces
    Standard Type
    Waterproof Type
    5
    -
    0.8
    IP67
    With LED
    10
    1 pieces
    Screw Type
    Standard
    -
    M5x0.5
    0.5
    IP40
    With LED
    10
    1 pieces
    Screw Type
    Waterproof Type
    -
    M5x0.5
    0.8
    IP67
    With LED
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    62.59 €
    ( 74.48 € )
    Stock item: 1 working dayAvailable for same-day shipping
    68.90 €
    ( 81.99 € )
    5 working days
    66.50 €
    ( 79.14 € )
    Stock item: 1 working dayAvailable for same-day shipping
    72.79 €
    ( 86.62 € )
    5 working days
    66.37 €
    ( 78.98 € )
    5 working days
    72.67 €44.33 €
    ( 52.75 € )
    Stock item: 1 working dayAvailable for same-day shipping
    70.28 €
    ( 83.63 € )
    Stock item: 1 working dayAvailable for same-day shipping
    76.57 €
    ( 91.12 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Outline and specifications
