Toggle Clamp, Horizontal Type, Straight Base, Tip Bolt Slide Adjustment, Clamping Force 882 N

Toggle Clamp, Horizontal Type, Straight Base, Tip Bolt Slide Adjustment, Clamping Force 882 N MC01-3S

Mouse over image to enlarge

Part number:

MC01-3S
Clear
Quantity:
Loading...

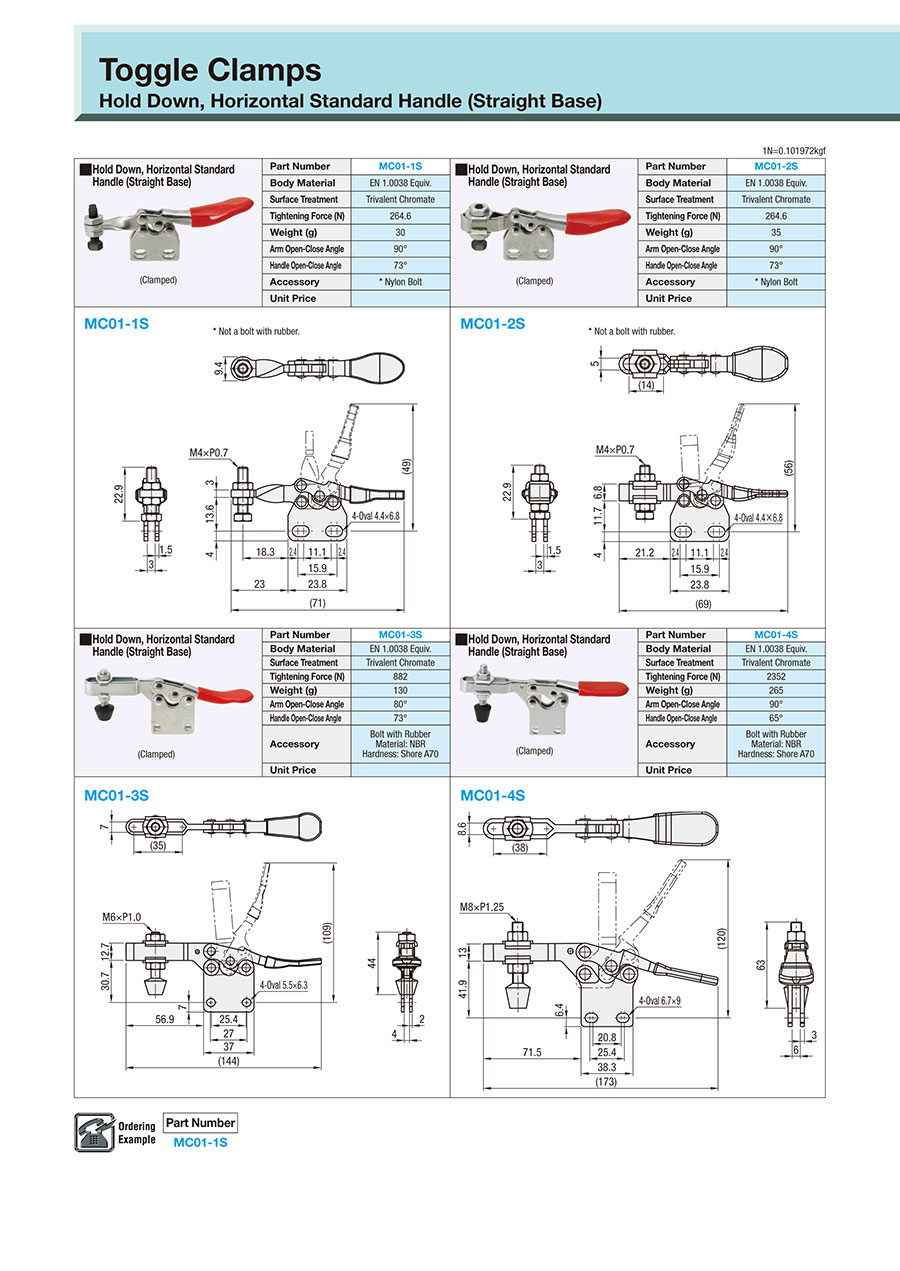

Outline drawing and specifications table

MC013S

Specification Table

Part Number
MC01−3S
Part NumberMC01−3S
Body MaterialEN 1.0038 Equiv.
Surface TreatmentTrivalent Chromate
Tightening Force (N)882
Weight (g)130
Arm Open-Close Angle80°
Handle Open-Close Angle73°
AccessoryBolt with Rubber
Material: NBR
Hardness: Shore A70

[ ! ]The tightening pressure listed in the catalog is the value when the end bolt is positioned closest to the handle.
If the bolt has a rubber tip, the tightening pressure is reduced by approximately half due to the force being absorbed by the rubber.
Sliding the end bolt will tend to decrease the tightening pressure.
Data showing the relationship between amount of sliding and tightening pressure is not available.

Part number list

Number of items
Part number
MC01-3S
Minimum order quantity
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
10.52 €
( 12.52 € )
Stock item: 1 working dayAvailable for same-day shipping
