Conversion Pipe Fittings / L-Shape / T-Shape

CatalogP.2-1282

Part number:

Still undefined. 1,116 possible part numbers found.

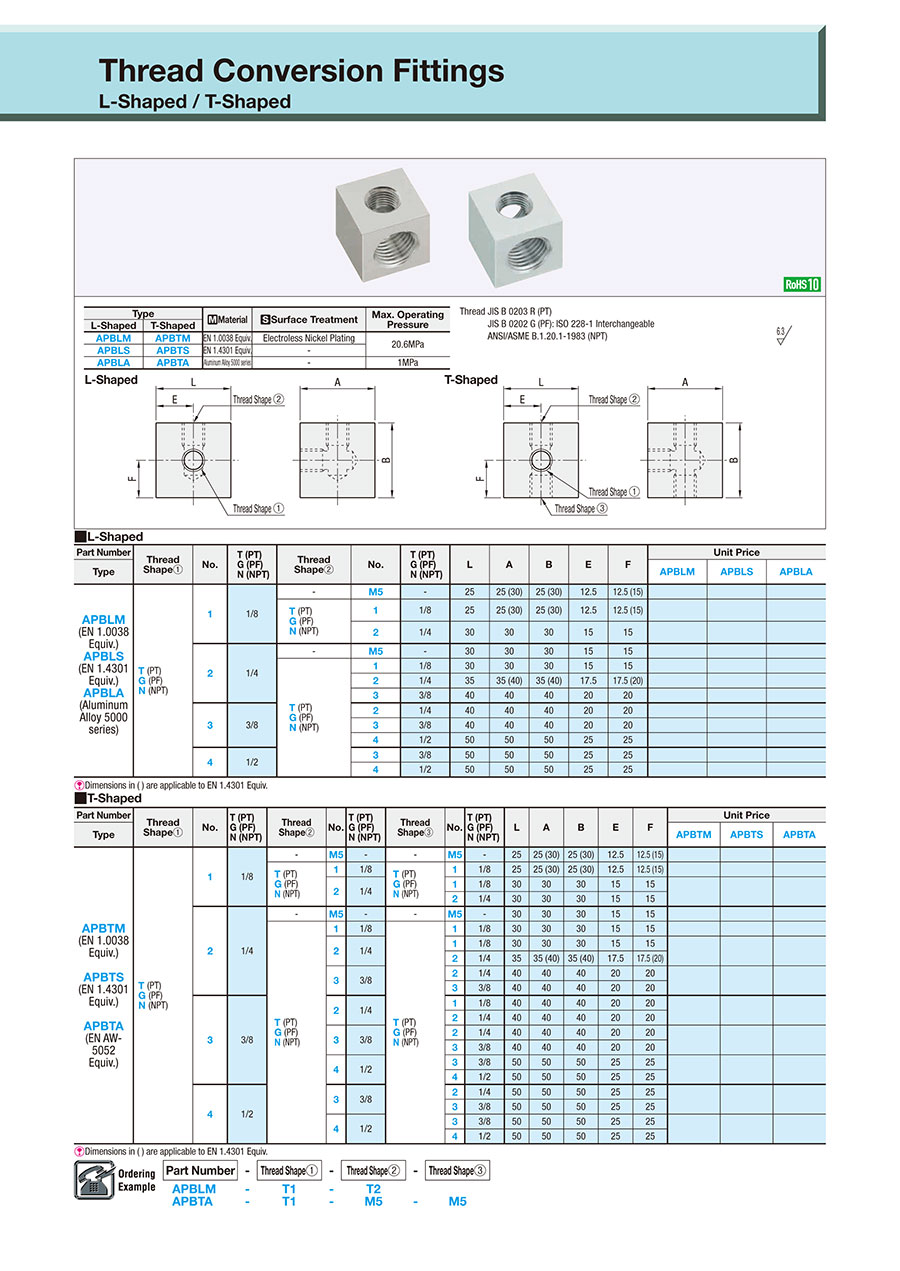

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

L-Shaped T-Shaped

Thread: JIS B0203 R (PT)

JIS B 0202 G (PF): ISO 228-1 Interchangeable
ANSI/ASME B.1.20.1－1983 (NPT)

Type		[M] Material	[S] Surface Treatment	Max. Operating Pressure
L-Shaped	T-Shaped	[M] Material	[S] Surface Treatment	Max. Operating Pressure
APBLM	APBTM	Steel for General Structure	Electroless Nickel Plating	20.6 MPa
APBLS	APBTS	EN 1.4301 Equiv.	—	20.6 MPa
APBLA	APBTA	Aluminum Alloy	—	1 Mpa

Specification Table

Part Number	—	Thread Shape (1)	—	Thread Shape (2)	—	Thread Shape (3)
APBLM APBTA	— —	T1 T1	— —	T2 M5	—	M5

■L-Shaped

Part Number	Thread Shape (1)	No.	T (PT) G (PF) N (NPT)	Thread Shape (2)	No.	T (PT) G (PF) N (NPT)	L	A	B	E	F
Type	Thread Shape (1)	No.	T (PT) G (PF) N (NPT)	Thread Shape (2)	No.	T (PT) G (PF) N (NPT)	L	A	B	E	F
APBLM APBLS APBLA	T (PT) G (PF) N (NPT)	1	1/8	—	M5	—	25	25 (30)	25 (30)	12.5	12.5 (15)
				T (PT) G (PF) N (NPT)	1	1/8	25	25 (30)	25 (30)	12.5	12.5 (15)
				T (PT) G (PF) N (NPT)	2	1/4	30	30	30	15	15
		2	1/4	—	M5	—	30	30	30	15	15
				T (PT) G (PF) N (NPT)	1	1/8	30	30	30	15	15
					2	1/4	35	35 (40)	35 (40)	17.5	17.5 (20)
					3	3/8	40	40	40	20	20
		3	3/8		2	1/4	40	40	40	20	20
					3	3/8	40	40	40	20	20
					4	1/2	50	50	50	25	25
		4	1/2		3	3/8	50	50	50	25	25
		4	1/2		4	1/2	50	50	50	25	25

[ ! ] Dimensions in ( ) are applicable to EN 1.4301 Equiv.
■T-Shaped
