Butt-Weld Pipe Fittings / Tees

Butt-Weld Pipe Fittings / Tees

Mouse over image to enlarge

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

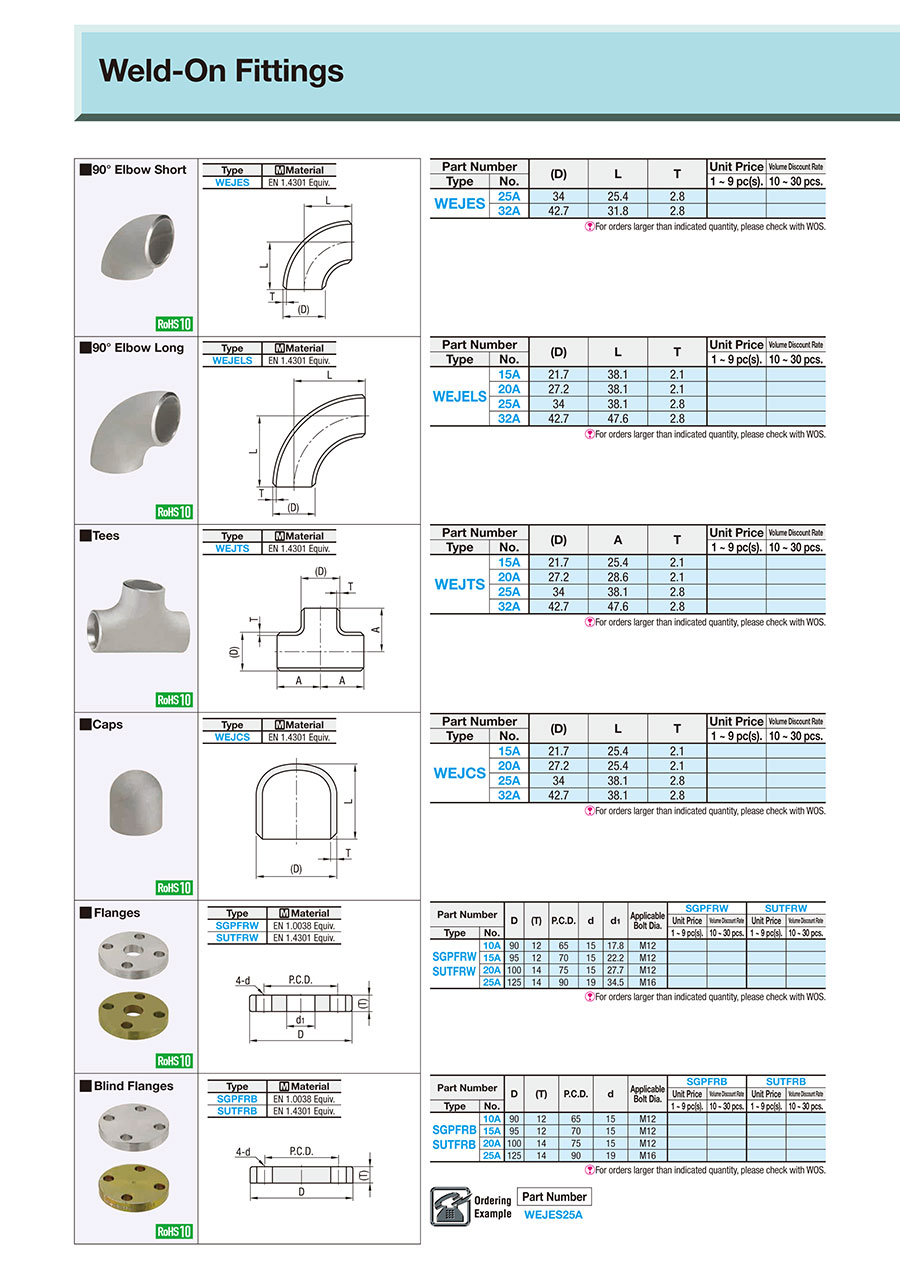

Outline drawing and specifications table

Type[M] Material
WEJTSEN 1.4301 Equiv.

Specification Table

Part Number
WEJES25A
Part Number(D)AT
TypeNo.
WEJTS15 A21.725.42.1
20 A27.228.62.1
25 A3438.12.8
32 A42.747.62.8

Features

  • A weld-on fitting that is connected by welding and can change the direction and flow rate between pipes.
  • Products with bending, branching, and tapering are available in various sizes.
  • Three types of materials are available: black tube type, white tube type (plated tube) and stainless steel.
  • The black tube type is not plated and in blackish color. Used for steam and drain pipes.
  • The beveled surface of the white tube type is non-plated.
  • Stainless steel is acid-resistant and rust-resistant.
Weld-On Fittings - Tees Related Image 1_Features

Effect of Chamfering (Bevel)

When chamfered

When not chamfered

Weld-On Fittings - Tees Related Image 1_Effect of Chamfering (Bevel)

Part number list

Number of items
  • 1
    • Part number
    WEJTS15A
    WEJTS20A
    WEJTS25A
    WEJTS32A

    Nominal Dia.

    		RoHS?Minimum order quantity
    1/2B(15A)
    10
    1 pieces
    3/4B(20A)
    10
    1 pieces
    1B(25A)
    10
    1 pieces
    1 1/4B(32A)
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    19.91 €
    ( 23.69 € )
    5 working days
    20.79 €
    ( 24.74 € )
    5 working days
    21.40 €
    ( 25.47 € )
    5 working days
    22.03 €
    ( 26.22 € )
    5 working days
  • 1

    • More Information

    Basic information

    This welded fitting is joined by welding and can change the direction and flow rate between pipes. Various sizes of bending, branching and drawing products are available. -3 types of materials are available: "black pipe", "white pipe (coated pipe)" and "stainless steel". - The black pipe is not coated and appears black. It is used for steam and condensate pipes. -The bevelled surface of the white pipes is not coated. -Stainless steel is acid and rust resistant.
