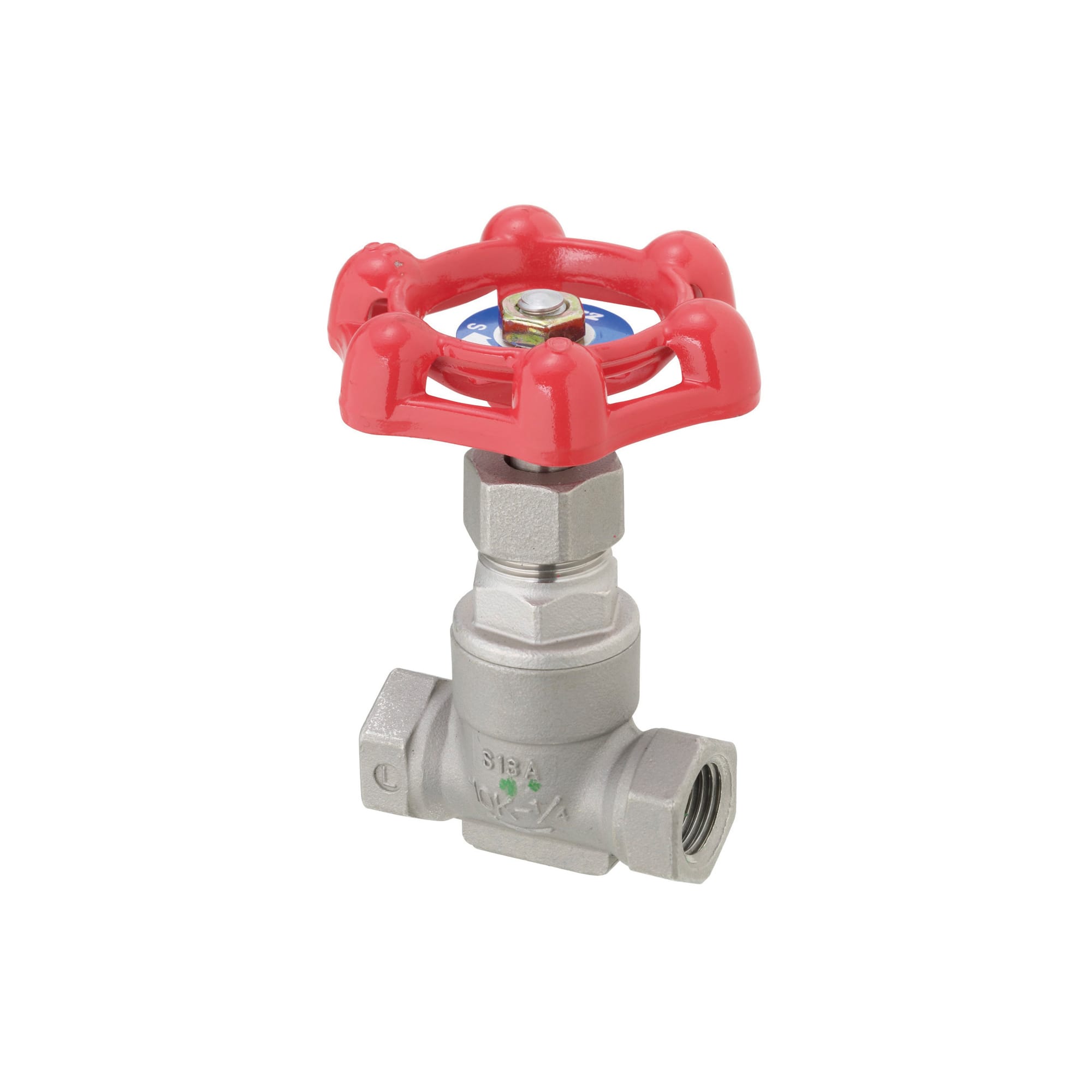

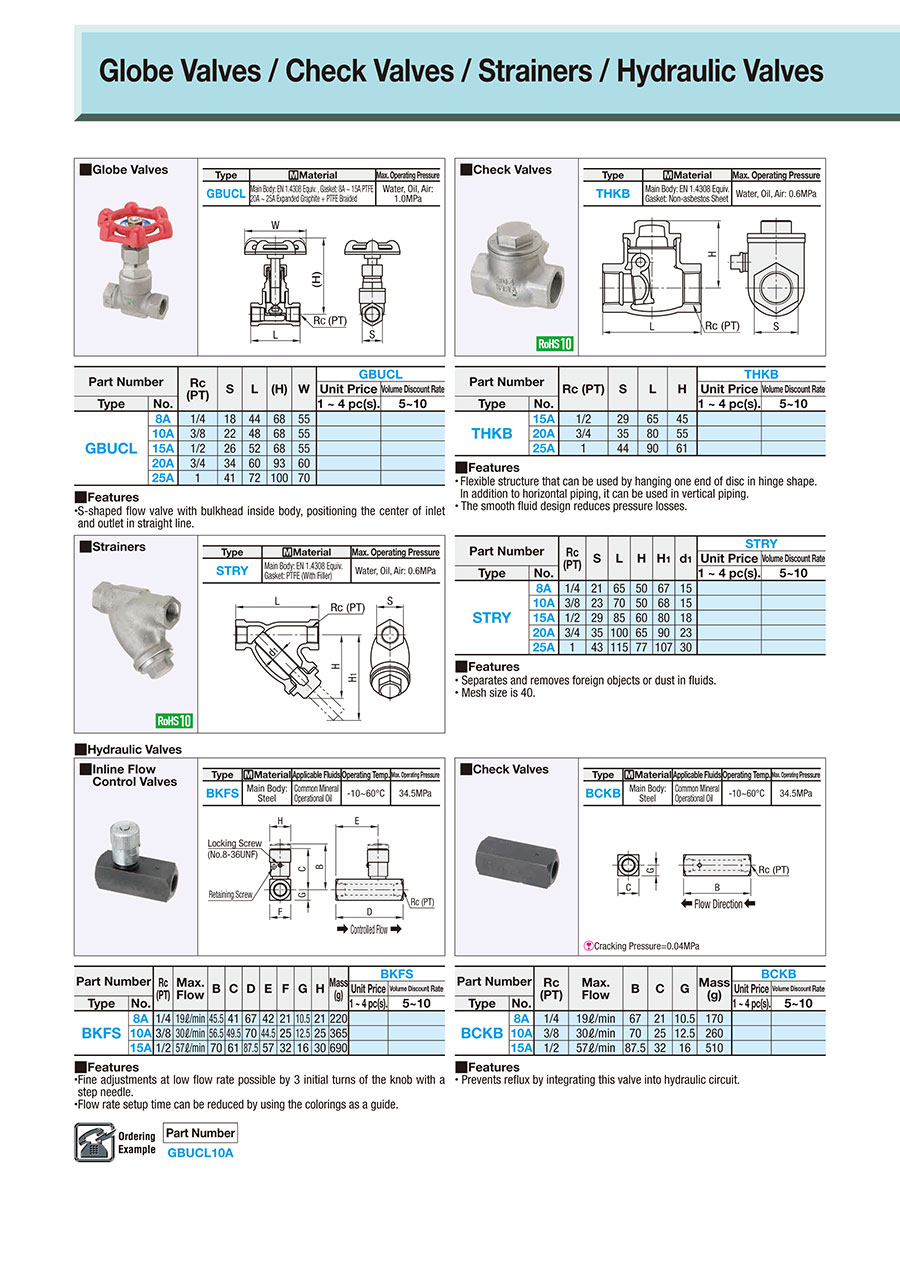

Globe Valves
Part number:
possible part numbers found.Outline drawing and specifications table
Dimensional Drawing
| Type | No. | [M] Material | |
| Main Body | Gasket | ||
| GBUCL | 8 A to 15 A | EN 1.4308 Equiv. | PTFE |
| 20 A·25 A | Expanded Graphite + PTFE Braided | ||
Specification Table
| Part Number |
| GBUCL10A |
| Part Number | Rc (PT) | S | L | (H) | W | |
| Type | No. | |||||
| GBUCL | 8 A | 1/4 | 18 | 44 | 68 | 55 |
| 10 A | 3/8 | 22 | 48 | 68 | 55 | |
| 15 A | 1/2 | 26 | 52 | 68 | 55 | |
| 20 A | 3/4 | 34 | 60 | 93 | 60 | |
| 25 A | 1 | 41 | 72 | 100 | 70 | |
Pressure, Temperature Standards Unit: MPa
| Fluid State | W | G1 | G2 |
| Temperature | 120°C or less | 150°C or less | 180°C |
| pressure | 1.4 | 1.1 | 1.0 |
G1～G2: Steam, Air, Incombustible Gas, Oil (Lubricant, Operational Oil), etc.
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
66.50 € ( 79.14 € ) | 6 working days |
68.38 € ( 81.37 € ) | 6 working days |
69.27 € ( 82.43 € ) | 6 working days |
87.01 € ( 103.54 € ) | 6 working days |
119.77 € ( 142.53 € ) | Stock item: 1 working dayAvailable for same-day shipping |
More Information
Basic information
[Features] A straight through valve.
Outline and specifications
Specifications/Overview
■ Features
·S-shaped flow valve with bulkhead inside body, positioning the center of inlet and outlet in straight line.
·S-shaped flow valve with bulkhead inside body, positioning the center of inlet and outlet in straight line.
