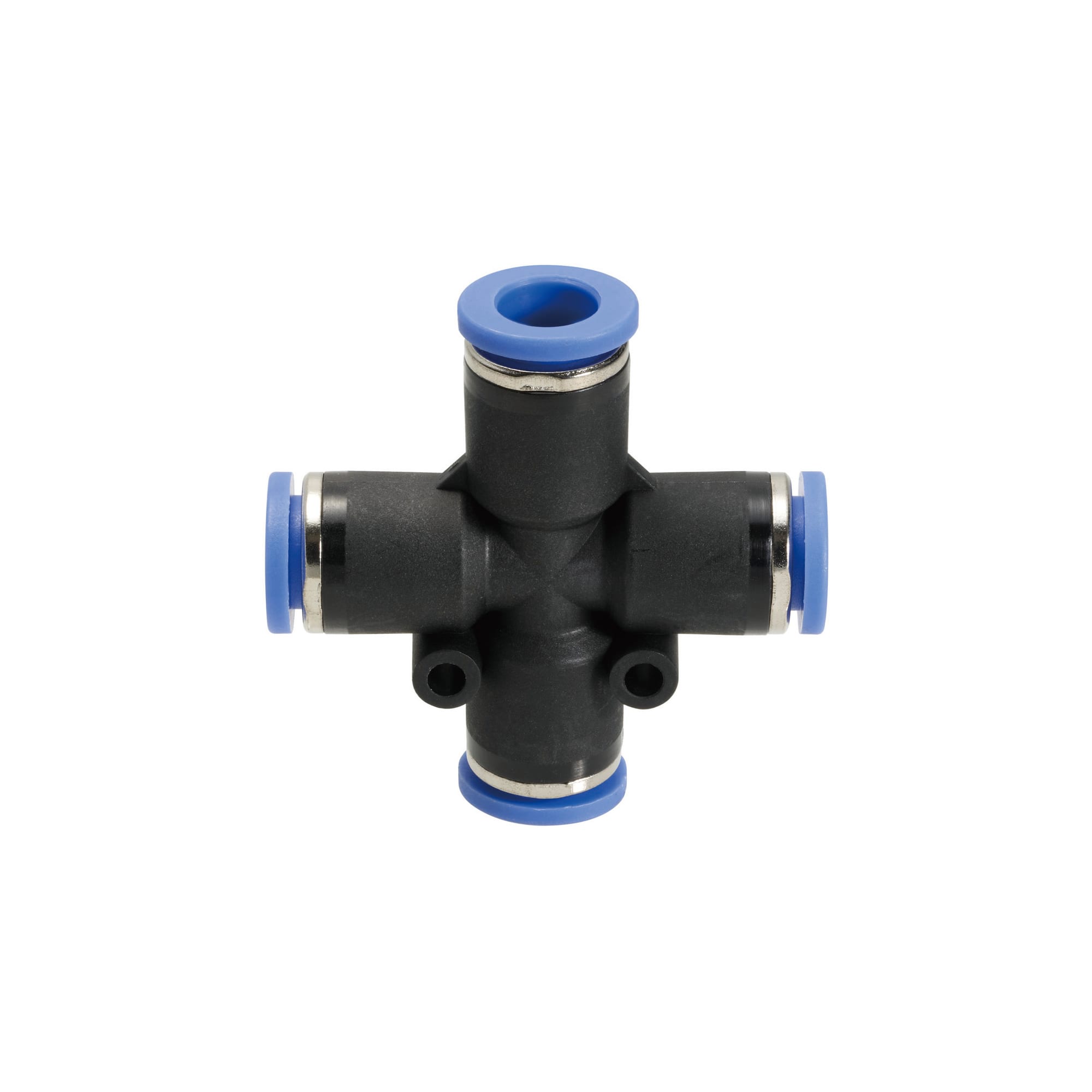

One-Touch Couplings / Cross Union
Part number:
possible part numbers found.Outline drawing and specifications table
USCRS
[M]Material: PBT (Polybutylene Terephthalate)
Specification Table
| Part Number |
| USCRS8 |
| Part Number | L | C | E | N | Mass (g) | |
| Type | D | |||||
| USCRS | 8 | 23.6 | 13.6 | 3.2 | 17 | 14.5 |
| 10 | 25 | 16.3 | 4.2 | 20 | 20.5 | |
| 12 | 32.2 | 19.7 | 4.2 | 24 | 38 | |
More Information
Basic information
[Features] Quick connect fitting with same connection diameter. [Material] PBT (polybutylene terephthalate).
Outline and specifications
Specifications / Overview
Specifications
*No freezing
| Applicable Fluid | Air |
| Operating Temperature Range* | 0 to 60°C |
| Max. Operating Pressure | 0.9 MPa |
| Operating Vacuum Level | -100 kPa |
