    Vacuum Pad Spring Holder, Side: Single-Action Type (L Shape) Sponge Type / Bellows Type

    Vacuum Pad Spring Holder, Side: Single-Action Type (L Shape) Sponge Type / Bellows Type

    Mouse over image to enlarge

    • Vacuum Pad Spring Holder, Side: Single-Action Type (L Shape) Sponge Type / Bellows Type
    • Vacuum Pad Spring Holder, Side: Single-Action Type (L Shape) Sponge Type / Bellows Type

    Part number:

    Still undefined. 13 possible part numbers found.
    Quantity:

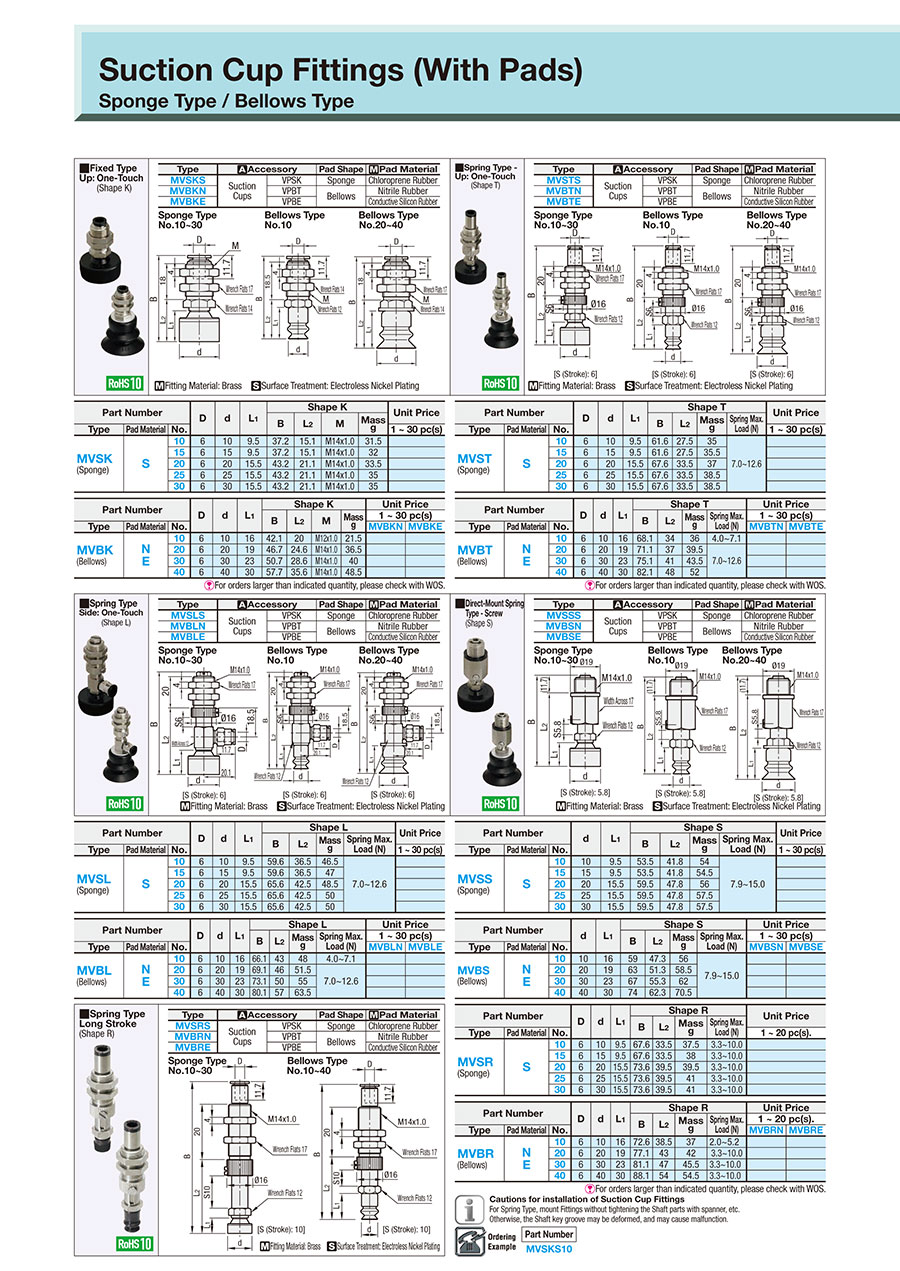

    Outline drawing and specifications table

    Sponge Type
    No.10 to 30
    Bellows Type
    No. 10
    Bellows Type
    No.20 to 40
    "S (Stroke): 6"
    "S (Stroke): 6"
    "S (Stroke): 6"
    Type[A] AccessoryPad Shape[M]Pad Material
    MVSLSSuction CupsVPSKSpongeChloroprene Rubber
    MVBLNVPBTBellowsNitrile Rubber
    MVBLEVPBEConductive Silicon Rubber
    [M]Metal Fittings Material: Brass "S" Surface Treatment: Electroless Nickel Plating 

    Specification Table

    Part Number
    MVSLS10
    Part NumberDdL1Shape L
    BL2Mass
    g    		Spring
    Max. Load (N)
    TypePad MaterialNo.
    MVSL
    (Sponge)    		S106109.559.636.546.57.0 to 12.6
    156159.559.636.547
    2062015.565.642.548.5
    2562515.565.642.550
    3063015.565.642.550

    Part NumberDdL1Shape L
    BL2Mass
    g    		Spring
    Max. Load (N)
    TypePad MaterialNo.
    MVBL
    (Bellows)    		N
    E    		106101666.143484.0 to 7.1
    206201969.14651.57.0 to 12.6
    306302373.15055
    406403080.15763.5

    Part number list

    Number of items
  • 1
    • Part number
    MVBLE10
    MVBLE20
    MVBLE30
    MVBLE40
    MVBLN10
    MVBLN20
    MVBLN30
    MVBLN40
    MVSLS10
    MVSLS15
    MVSLS20
    MVSLS25
    MVSLS30

    Pad Type

    Material

    Rubber Group Material

    Usage Environment

    Heat Resistance Temperature, Max. Operating Temperature, Min. Operating Temperature

    (°C)

    O.D. (d)

    (Ø)

    		RoHS?Minimum order quantity
    Bellows
    Rubber Group
    [Silicone Rubber] Conductive Silicon Rubber
    Standard / Oil Resistance / Heat Resistance / Weather Resistance
    -40～180
    10
    10
    1 pieces
    Bellows
    Rubber Group
    [Silicone Rubber] Conductive Silicon Rubber
    Standard / Oil Resistance / Heat Resistance / Weather Resistance
    -40～180
    20
    10
    1 pieces
    Bellows
    Rubber Group
    [Silicone Rubber] Conductive Silicon Rubber
    Standard / Oil Resistance / Heat Resistance / Weather Resistance
    -40～180
    30
    10
    1 pieces
    Bellows
    Rubber Group
    [Silicone Rubber] Conductive Silicon Rubber
    Standard / Oil Resistance / Heat Resistance / Weather Resistance
    -40～180
    40
    10
    1 pieces
    Bellows
    Rubber Group
    [Nitrile Rubber] Nitrile Rubber
    Standard / Oil Resistance
    -30～110
    10
    10
    1 pieces
    Bellows
    Rubber Group
    [Nitrile Rubber] Nitrile Rubber
    Standard / Oil Resistance
    -30～110
    20
    10
    1 pieces
    Bellows
    Rubber Group
    [Nitrile Rubber] Nitrile Rubber
    Standard / Oil Resistance
    -30～110
    30
    10
    1 pieces
    Bellows
    Rubber Group
    [Nitrile Rubber] Nitrile Rubber
    Standard / Oil Resistance
    -30～110
    40
    10
    1 pieces
    Sponge
    Chloroprene Rubber
    -
    Standard / Weather Resistance
    -45～80
    10
    10
    1 pieces
    Sponge
    Chloroprene Rubber
    -
    Standard / Weather Resistance
    -45～80
    15
    10
    1 pieces
    Sponge
    Chloroprene Rubber
    -
    Standard / Weather Resistance
    -45～80
    20
    10
    1 pieces
    Sponge
    Chloroprene Rubber
    -
    Standard / Weather Resistance
    -45～80
    25
    10
    1 pieces
    Sponge
    Chloroprene Rubber
    -
    Standard / Weather Resistance
    -45～80
    30
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    31.24 €
    ( 37.18 € )
    5 working days
    32.50 €
    ( 38.67 € )
    5 working days
    33.75 €
    ( 40.16 € )
    Stock item: 1 working dayAvailable for same-day shipping
    36.77 €
    ( 43.76 € )
    5 working days
    29.47 €
    ( 35.07 € )
    5 working days
    30.35 €
    ( 36.12 € )
    5 working days
    31.24 €
    ( 37.18 € )
    5 working days
    33.24 €
    ( 39.56 € )
    5 working days
    41.44 €
    ( 49.31 € )
    5 working days
    41.81 €
    ( 49.75 € )
    5 working days
    43.96 €
    ( 52.31 € )
    5 working days
    44.84 €
    ( 53.36 € )
    5 working days
    46.09 €
    ( 54.85 € )
    5 working days
  • 1

    • More Information

    Basic information

    One absorption bracket, spring-loaded, horizontal, single-acting (L-shaped). -Sponge type / bellows type.

    Outline and specifications

    Specifications / Overview

    Cautions for installation of Suction Cup Fittings
    For Spring Type, mount Fittings without tightening the Shaft parts with spanner, etc.
    Otherwise, the Shaft key groove may be deformed, and may cause malfunction.
