Vacuum Fittings / Soft / Soft Bellows / Spring Type / T-Shape
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information

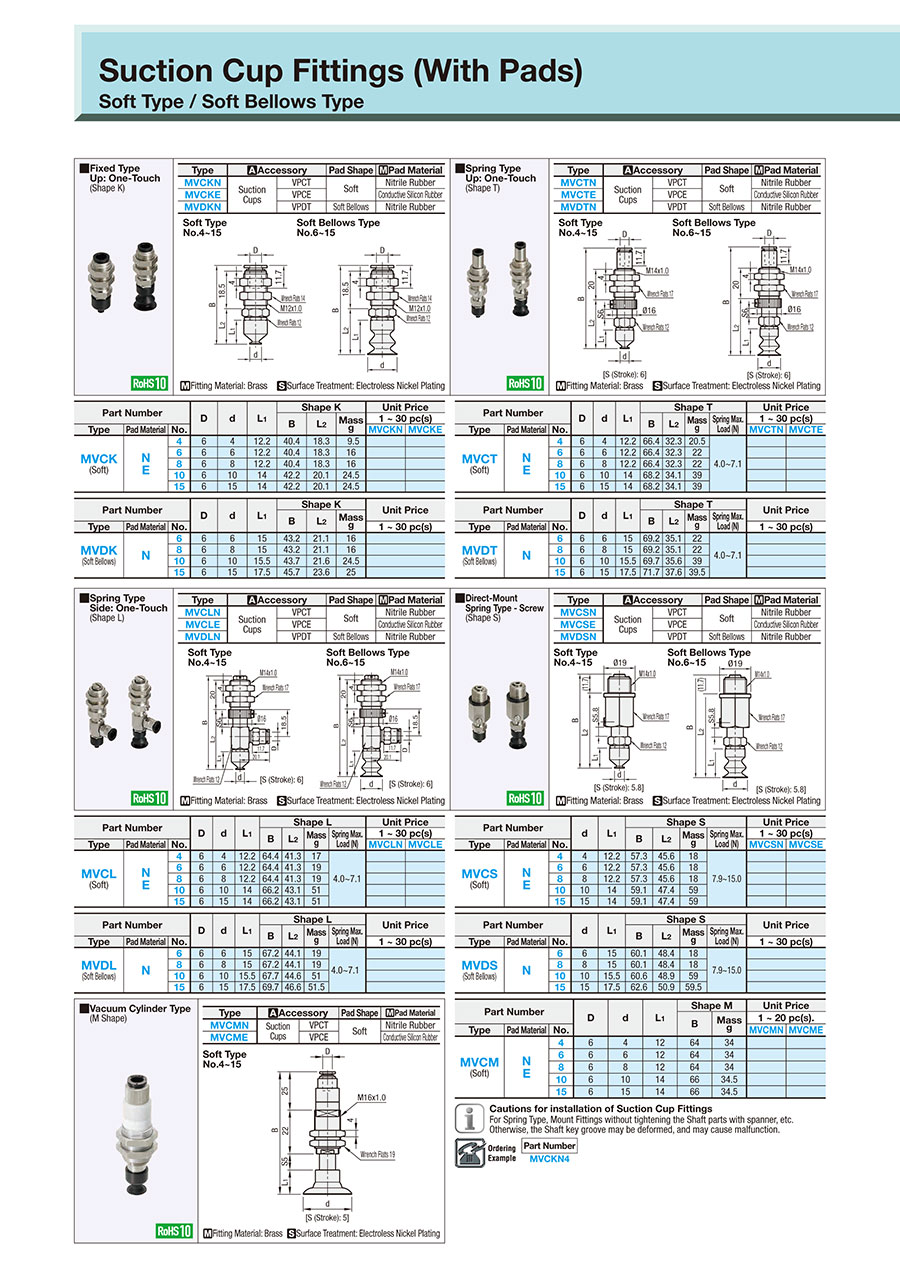

- Catalog
| Type | Accessory | Pad Shape | Pad Material | |
| MVCTN | Suction Cups | VPCT | Soft | Nitrile Rubber |
| MVCTE | VPCE | Conductive Silicon Rubber | ||
| MVDTN | VPDT | Soft Bellows | Nitrile Rubber | |
Specifications
| Part Number |
| MVCKN4 |
| Part Number | D | d | L1 | Shape T | Unit Price | ||||||
| B | L2 | Mass g | Spring Max. Load (N) | 1 ~ 30 pc(s) | |||||||
| Type | Pad Material | No. | MVCTN | MVCTE | |||||||
| MVCT (Soft) | N E | 4 | 6 | 4 | 12.2 | 66.4 | 32.3 | 20.5 | 4.0~7.1 | ||
| 6 | 6 | 6 | 12.2 | 66.4 | 32.3 | 22 | |||||
| 8 | 6 | 8 | 12.2 | 66.4 | 32.3 | 22 | |||||
| 10 | 6 | 10 | 14 | 68.2 | 34.1 | 39 | |||||
| 15 | 6 | 15 | 14 | 68.2 | 34.1 | 39 | |||||
| Part Number | D | d | L1 | Shape T | Unit Price | |||||
| B | L2 | Mass g | Spring Max. Load (N) | |||||||
| Type | Pad Material | No. | 1 ~ 30 pc(s) | |||||||
| MVDT (Soft Bellows) | N | 6 | 6 | 6 | 15 | 69.2 | 35.1 | 22 | 4.0~7.1 | |
| 8 | 6 | 8 | 15 | 69.2 | 35.1 | 22 | ||||
| 10 | 6 | 10 | 15.5 | 69.7 | 35.6 | 39 | ||||
| 15 | 6 | 15 | 17.5 | 71.7 | 37.6 | 39.5 | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MVCTE4 |
| MVCTE6 |
| MVCTE8 |
| MVCTE10 |
| MVCTE15 |
| MVCTN4 |
| MVCTN6 |
| MVCTN8 |
| MVCTN10 |
| MVCTN15 |
| MVDTN6 |
| MVDTN8 |
| MVDTN10 |
| MVDTN15 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Pad Type | Rubber Group Material | Usage Environment | Heat Resistance Temperature, Max. Operating Temperature, Min. Operating Temperature (°C) | O.D. (d) (Ø) | |
|---|---|---|---|---|---|---|---|---|---|---|
27.33 € | 1 | 5 Days | 10 | Soft | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 4 | ||
27.33 € | 1 | 5 Days | 10 | Soft | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 6 | ||
27.33 € | 1 | 5 Days | 10 | Soft | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 8 | ||
27.33 € | 1 | 5 Days | 10 | Soft | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 10 | ||
27.72 € | 1 | 5 Days | 10 | Soft | [Silicone Rubber] Conductive Silicon Rubber | Standard / Oil Resistance / Heat Resistance / Weather Resistance | -40～180 | 15 | ||
26.07 € | 1 | 5 Days | 10 | Soft | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 4 | ||
26.07 € | 1 | 5 Days | 10 | Soft | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 6 | ||
26.07 € | 1 | 5 Days | 10 | Soft | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 8 | ||
26.07 € | 1 | 5 Days | 10 | Soft | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 10 | ||
26.44 € | 1 | 5 Days | 10 | Soft | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 15 | ||
27.33 € | 1 | 5 Days | 10 | Soft Bellows | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 6 | ||
27.33 € | 1 | 5 Days | 10 | Soft Bellows | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 8 | ||
27.33 € | 1 | 5 Days | 10 | Soft Bellows | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 10 | ||
27.72 € | 1 | 5 Days | 10 | Soft Bellows | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | -30～110 | 15 |
Loading...
More Information
For Spring Type, Mount Fittings without tightening the Shaft parts with spanner, etc.
Otherwise, the Shaft key groove may be deformed, and may cause malfunction.
Basic information
| Pad type | Holder Set | Mounting Type | Attachment Type | Material | Rubber Group |
|---|---|---|---|---|---|
| Vacuum Outlet Port | Single-Action Coupling | Color | Black |
Configure
Basic Attributes
-
Pad Type
- Soft
- Soft Bellows
-
Rubber Group Material
- Nitrile Rubber
- Silicone Rubber
- Nitrile Rubber
-
Usage Environment
- Standard
- Oil Resistance
- Heat Resistance
- Weather Resistance
-
O.D. (d)(Ø)
-
Type
- MVCTE
- MVCTN
- MVDTN
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
