Fingers for Air Grippers / Direct Mounting / Flat

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

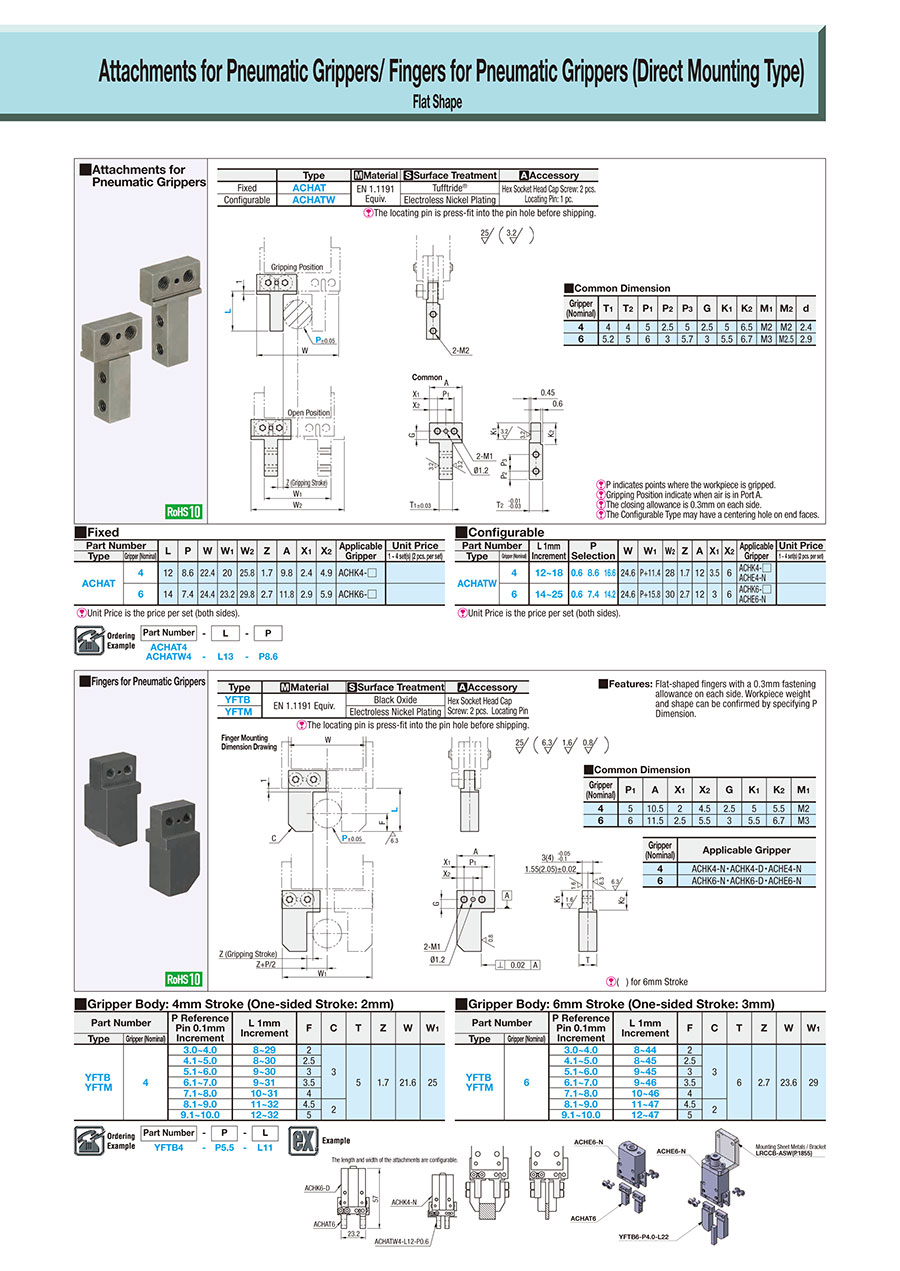

Fingers for Air Grippers/Direct Mounting/Flat:Related Image

TypeMaterialSurface TreatmentAccessory
YFTBEN 1.1191 Equiv.Black OxideHex Socket Head Cap Screw: 2 pcs. Locating Pin
YFTMElectroless Nickel Plating
The locating pin is press-fit into the pin hole before shipping.

Specifications

Part Number-P-L
YFTB4-P5.5-L11
■Common Dimension
Gripper (Nominal)P1AX1X2GK1K2M1
4510.524.52.555.5M2
6611.52.55.535.56.7M3

Gripper (Nominal)Applicable Gripper
4ACHK4-N • ACHK4-D • ACHE4-N
6ACHK6-N • ACHK6-D • ACHE6-N
■Gripper Body: 4mm Stroke (One-sided Stroke: 2mm)
Part NumberP Reference Pin 0.1mm IncrementL 1mm IncrementFCTZWW1
TypeGripper (Nominal)
YFTB
YFTM
43.0~4.08~292351.721.625
4.1~5.08~302.5
5.1~6.09~303
6.1~7.09~313.5
7.1~8.010~314
8.1~9.011~324.52
9.1~10.012~325
■Gripper Body: 6mm Stroke (One-sided Stroke: 3mm)
Part NumberP Reference Pin 0.1mm IncrementL 1mm IncrementFCTZWW1
TypeGripper (Nominal)
YFTB
YFTM
63.0~4.08~442362.723.629
4.1~5.08~452.5
5.1~6.09~453
6.1~7.09~463.5
7.1~8.010~464
8.1~9.011~474.52
9.1~10.012~475

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
YFTB4-P[3-10/0.1]-L[8-32/1]
YFTB6-P[3-10/0.1]-L[8-47/1]
YFTM4-P[3-10/0.1]-L[8-32/1]
YFTM6-P[3-10/0.1]-L[8-47/1]
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSSurface Treatment Workpiece Dia. P
(mm)
Nominal L
(mm)

-

1 9 Days 10Black Oxide3 ~ 1048 ~ 32

-

1 9 Days 10Black Oxide3 ~ 1068 ~ 47

-

1 9 Days 10Electroless Nickel Plating3 ~ 1048 ~ 32

-

1 9 Days 10Electroless Nickel Plating3 ~ 1068 ~ 47

Loading...

  1. 1

More Information

■Features: Flat-shaped fingers with a 0.3mm fastening allowance on each side. Workpiece weight and shape can be confirmed by specifying P Dimension.

Example of Use

Fingers for Air Grippers/Direct Mounting/Flat:Related Image

Basic information

Type Claw Material EN 1.1191 Equiv. Claw Tip Shape Flat Shape
Claw Mounting Dimensional Direct Mounting
