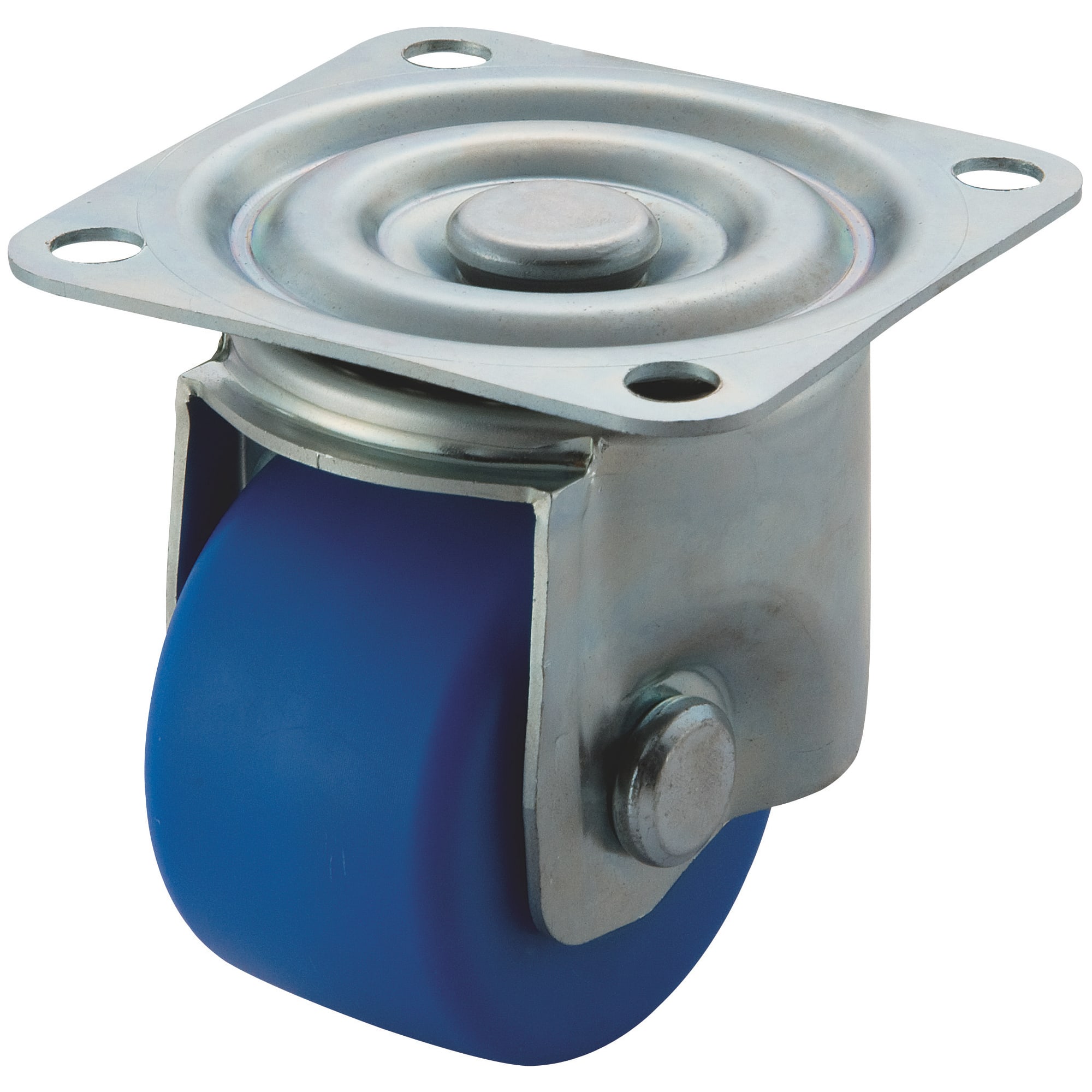

Castors / Super Heavy Load / Low Profile and Lightweight
Mouse over image to enlarge
Part number:

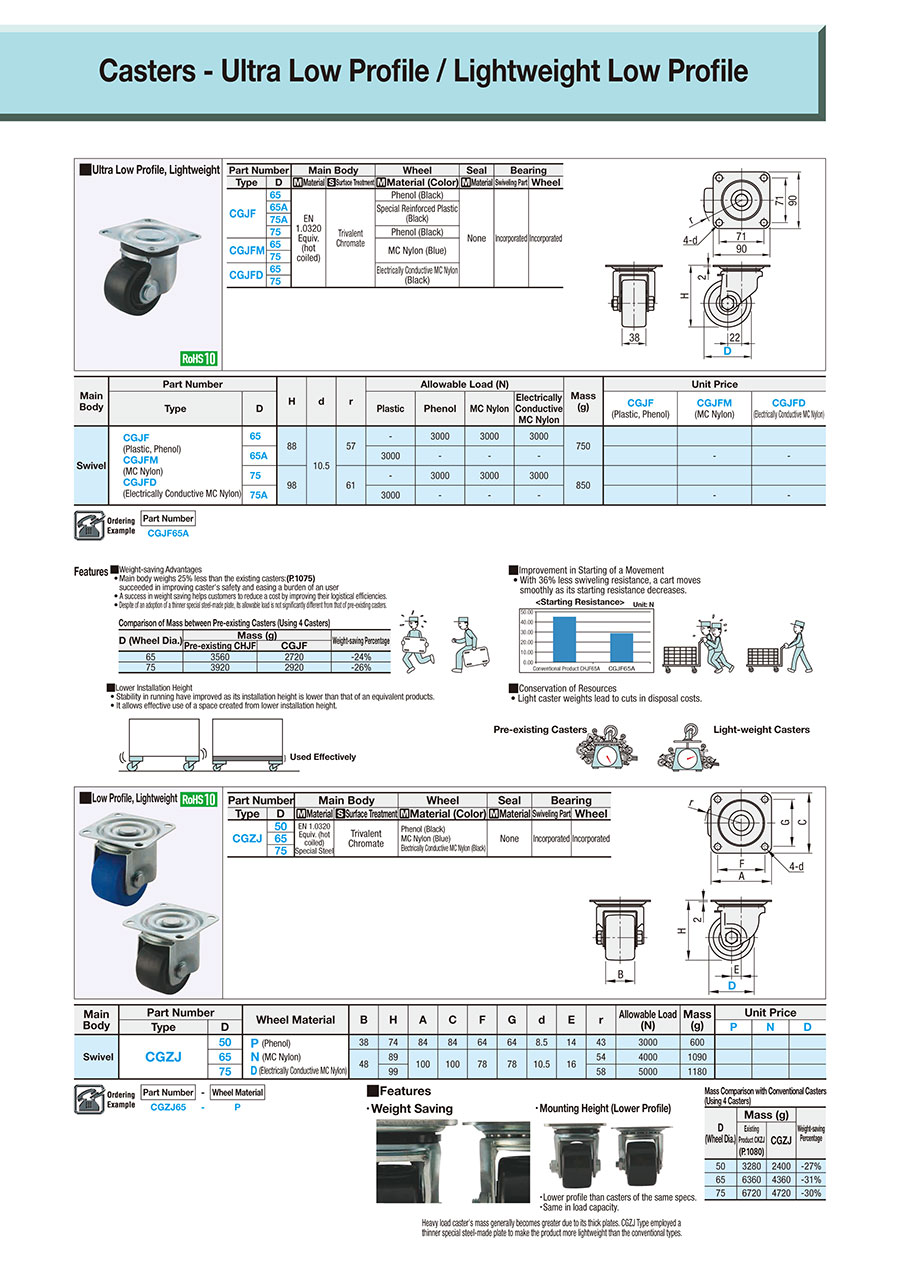

possible part numbers found.Outline drawing and specifications table
| Part Number | Main Body | Wheel | Seal | Bearing | |||
| Type | D | [M] Material | [S] Surface Treatment | [M]Material (Color) | [M] Material | Swiveling Part | Wheel |
| CGZJ | 50 | EN 1.0320 Equiv. (hot coiled) Special Steel | Trivalent Chromate | Phenol (Black) Monomer Casting Nylon (Blue) Electrically Conductive Monomer Cast Nylon (Black) | Not Provided | Provided | Provided |
| 65 | |||||||
| 75 | |||||||
Specification Table
| Part Number | — | Wheel Material |
| CGZJ65 | — | P |
| Main Body Type | Part Number | Wheel Material | B | H | A | C | F | G | d | E | r | Allowable Load (N) | Mass (g) | |
| Type | D | |||||||||||||
| Swivel Type | CGZJ | 50 | P (Phenol) N (Monomer Cast Nylon) D (Electrically Conductive Monomer Cast Nylon) | 38 | 74 | 84 | 84 | 64 | 64 | 8.5 | 14 | 43 | 3000 | 600 |
| 65 | 48 | 89 | 100 | 100 | 78 | 78 | 10.5 | 16 | 54 | 4000 | 1090 | |||
| 75 | 99 | 58 | 5000 | 1180 | ||||||||||
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
89.32 € ( 106.29 € ) | 5 working days |
49.64 € ( 59.07 € ) | Stock item: 1 working dayAvailable for same-day shipping |
44.77 € ( 53.28 € ) | 5 working days |
119.58 € ( 142.30 € ) | 5 working days |
75.72 € ( 90.11 € ) | 5 working days |
71.30 € ( 84.85 € ) | 5 working days |
142.25 € ( 169.28 € ) | 5 working days |
94.31 € ( 112.23 € ) | 5 working days |
89.32 € ( 106.29 € ) | 5 working days |
More Information
Basic information
This caster has an even lower bottom and weight compared to conventional products.
Outline and specifications
Specifications/Overview
■ Features
· Weight Saving
·Mounting Height (Lower Profile)
·Lower profile than casters of the same specs
·Same in load capacity.
Heavy load caster's mass generally becomes greater due to its thick plates.
CGZJ Type employed a thinner special steel-made plate to make the product more lightweight than the conventional types.
Mass Comparison with Conventional Casters
(Using 4 Casters)
(Using 4 Casters)
| D (Wheel Diameter) | Mass (g) | Weight-saving Percentage | |
| Conventional Product CKZJ | CGZJ | ||
| 50 | 3280 | 2400 | −27% |
| 65 | 6360 | 4360 | −31% |
| 75 | 6720 | 4720 | −30% |
