    Micro Spring Plungers Short

    Micro Spring Plungers Short

    Part number:

    Still undefined. 10 possible part numbers found.
    Quantity:

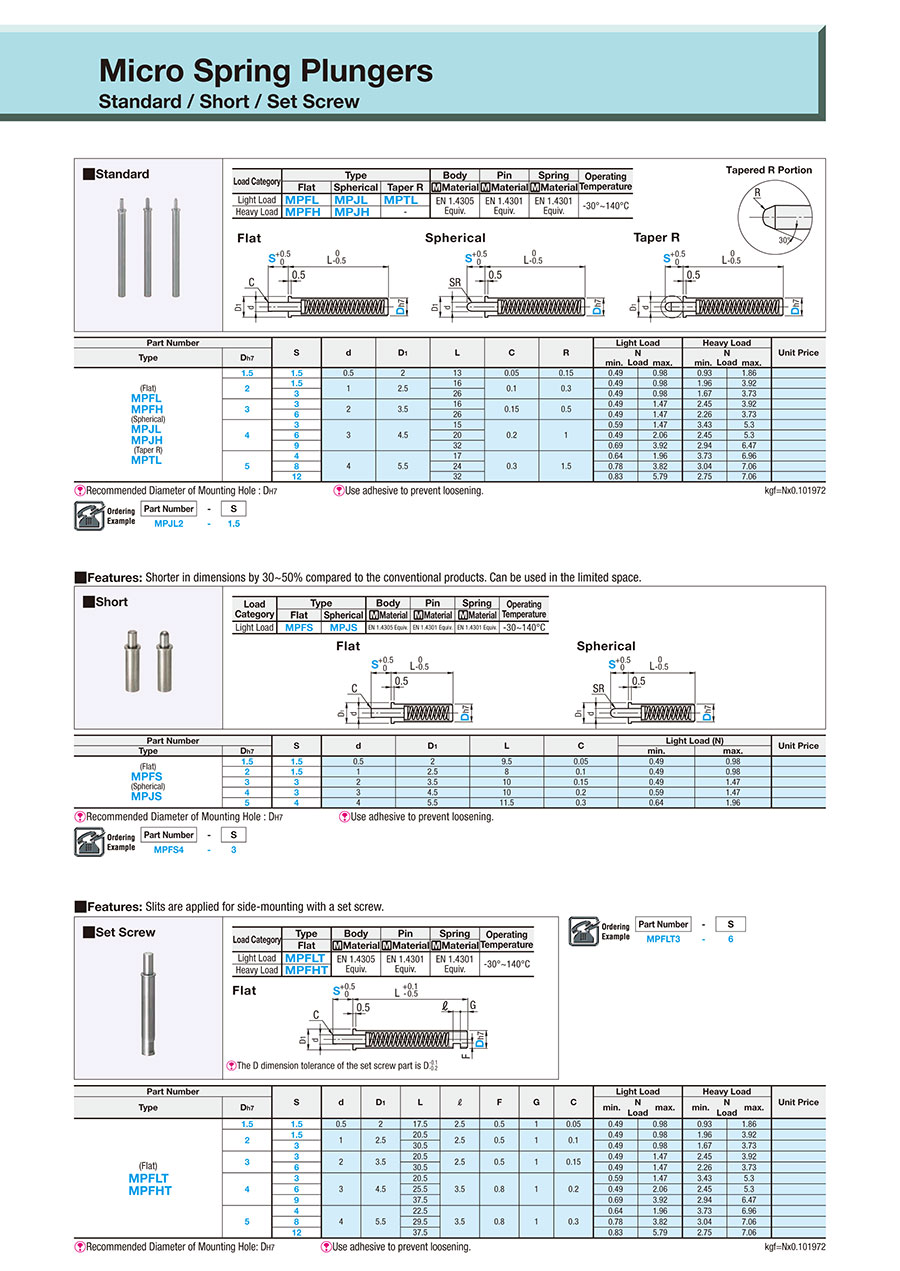

    Outline drawing and specifications table

    Micro Spring Plungers - Short: Dimensional Drawing

    Flat

    Spherical Type

    Load CategoryTypeBodyPinSpringOperating Temperature
    　
    FlatSpherical[M] Material[M] Material[M] Material
    Light LoadMPFSMPJSEN 1.4305 Equiv.EN 1.4301 Equiv.EN 1.4301 Equiv.−30 to 140°C

    Specification Table

    Part Number—S
    MPFS3—3
    Part NumberSdD1LCLight Load (N)
    TypeDh7min.max.
    (Flat)
    MPFS
    (Spherical)
    MPJS    		1.51.50.529.50.050.490.98
    21.512.580.10.490.98
    3323.5100.150.491.47
    4334.5100.20.591.47
    5445.511.50.30.641.96
    [ ! ] Recommended mounting hole dimensions DH7 [ ! ] Use adhesive to prevent loosening.

    Part number list

    Number of items
  • 1
    • Part number
    MPFS1.5-1.5
    MPFS2-1.5
    MPFS3-3
    MPFS4-3
    MPFS5-4
    MPJS1.5-1.5
    MPJS2-1.5
    MPJS3-3
    MPJS4-3
    MPJS5-4

    O.D. M

    (mm)

    Stroke (S)

    (mm)

    Pin Plunger Type

    Min. Load

    (N)

    Max. Load

    (N)

    		RoHS?Minimum order quantity
    1.5
    1.5
    Flat
    0.49
    0.98
    10
    1 pieces
    2
    1.5
    Flat
    0.49
    0.98
    10
    1 pieces
    3
    3
    Flat
    0.49
    1.47
    10
    1 pieces
    4
    3
    Flat
    0.59
    1.47
    10
    1 pieces
    5
    4
    Flat
    0.64
    1.96
    10
    1 pieces
    1.5
    1.5
    Spherical Type
    0.49
    0.98
    10
    1 pieces
    2
    1.5
    Spherical Type
    0.49
    0.98
    10
    1 pieces
    3
    3
    Spherical Type
    0.49
    1.47
    10
    1 pieces
    4
    3
    Spherical Type
    0.59
    1.47
    10
    1 pieces
    5
    4
    Spherical Type
    0.64
    1.96
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    22.67 €
    ( 26.98 € )
    5 working days
    19.91 €
    ( 23.69 € )
    Stock item: 1 working dayAvailable for same-day shipping
    15.86 €
    ( 18.87 € )
    Stock item: 1 working dayAvailable for same-day shipping
    15.23 €
    ( 18.12 € )
    Stock item: 1 working dayAvailable for same-day shipping
    14.74 €
    ( 17.54 € )
    Stock item: 1 working dayAvailable for same-day shipping
    22.67 €
    ( 26.98 € )
    5 working days
    19.91 €
    ( 23.69 € )
    Stock item: 1 working dayAvailable for same-day shipping
    15.86 €
    ( 18.87 € )
    Stock item: 1 working dayAvailable for same-day shipping
    15.23 €
    ( 18.12 € )
    Stock item: 1 working dayAvailable for same-day shipping
    14.74 €
    ( 17.54 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features] Small diameter type with an outer diameter of ø1.5 to ø5. It contributes to space saving. The housing dimensions are approximately 30 to 50% shorter than conventional products.
