    Ball Lock Pins / Spring Type

    Ball Lock Pins / Spring Type

    Mouse over image to enlarge

    Part number:

    Still undefined. 22 possible part numbers found.
    Quantity:

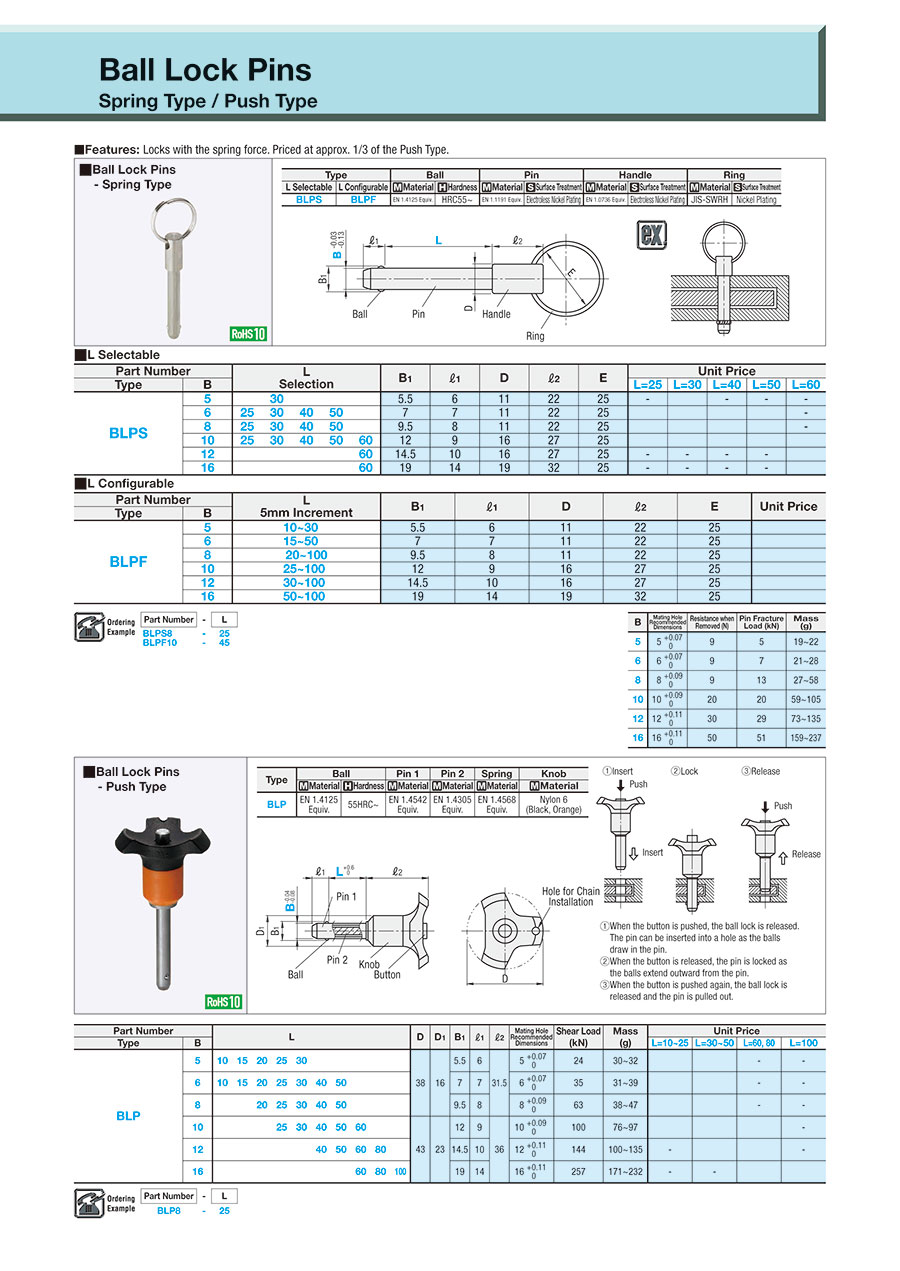

    Outline drawing and specifications table

    Ball Lock Pins/Spring Type:Related Image

    TypeBallPinHandleRing
    L SelectableL Configurable MaterialHardnessMaterialSurface TreatmentMaterialSurface TreatmentMaterialSurface Treatment
    BLPSBLPFEN 1.4125 Equiv.HRC55~EN 1.1191 Equiv.Electroless Nickel PlatingEN 1.0736 Equiv.Electroless Nickel PlatingJIS-SWRHNickel Plating

    Specifications

    Part Number-L
    BLPS8
    BLPF10    		-
    -    		25
    45
    ■L Selectable
    Part NumberL
    Selection    		B1ℓ1Dℓ2EUnit Price
    TypeBL=25L=30L=40L=50L=60
    BLPS5305.56112225----
    62530405077112225-
    8253040509.58112225-
    102530405060129162725
    126014.510162725----
    16601914193225----

    ■L Configurable
    Part NumberL
    5mm Increment    		B1ℓ1Dℓ2EUnit Price
    TypeB
    BLPF510~305.56112225
    615~5077112225
    820~1009.58112225
    1025~100129162725
    1230~10014.510162725
    1650~1001914193225
    BMating Hole
    Recommended
    Dimensions    		Resistance when Removed (N)Pin Fracture Load (kN)Mass
    (g)
    55+0.07
    0    		9519~22
    66+0.07
    0    		9721~28
    88+0.09
    0    		91327~58
    1010+0.09
    0    		202059~105
    1212+0.11
    0    		302973~135
    1616+0.11
    0    		5051159~237

    Part number list

    Number of items
  • 1
    • Part number
    BLPF5-[10-30/5]
    BLPF6-[15-50/5]
    BLPF8-[20-100/5]
    BLPF10-[25-100/5]
    BLPF12-[30-100/5]
    BLPF16-[50-100/5]
    BLPS5-30
    BLPS6-25
    BLPS6-30
    BLPS6-40
    BLPS6-50
    BLPS8-25
    BLPS8-30
    BLPS8-40
    BLPS8-50
    BLPS10-25
    BLPS10-30
    BLPS10-40
    BLPS10-50
    BLPS10-60
    BLPS12-60
    BLPS16-60

    Pin Dia. B

    (φ)

    L

    (mm)

    Type

    		RoHS?Minimum order quantity
    5
    10 ～ 30
    L Dimension Configurable Type
    10
    1 pieces
    6
    15 ～ 50
    L Dimension Configurable Type
    10
    1 pieces
    8
    20 ～ 100
    L Dimension Configurable Type
    10
    1 pieces
    10
    25 ～ 100
    L Dimension Configurable Type
    10
    1 pieces
    12
    30 ～ 100
    L Dimension Configurable Type
    10
    1 pieces
    16
    50 ～ 100
    L Dimension Configurable Type
    10
    1 pieces
    5
    30
    L Selectable Type
    10
    1 pieces
    6
    25
    L Selectable Type
    10
    1 pieces
    6
    30
    L Selectable Type
    10
    1 pieces
    6
    40
    L Selectable Type
    10
    1 pieces
    6
    50
    L Selectable Type
    10
    1 pieces
    8
    25
    L Selectable Type
    10
    1 pieces
    8
    30
    L Selectable Type
    10
    1 pieces
    8
    40
    L Selectable Type
    10
    1 pieces
    8
    50
    L Selectable Type
    10
    1 pieces
    10
    25
    L Selectable Type
    10
    1 pieces
    10
    30
    L Selectable Type
    10
    1 pieces
    10
    40
    L Selectable Type
    10
    1 pieces
    10
    50
    L Selectable Type
    10
    1 pieces
    10
    60
    L Selectable Type
    10
    1 pieces
    12
    60
    L Selectable Type
    10
    1 pieces
    16
    60
    L Selectable Type
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    12 working days
    -
    ( - )
    12 working days
    -
    ( - )
    12 working days
    -
    ( - )
    12 working days
    -
    ( - )
    12 working days
    -
    ( - )
    12 working days
    14.17 €
    ( 16.86 € )
    Stock item: 1 working dayAvailable for same-day shipping
    14.17 €
    ( 16.86 € )
    Stock item: 1 working dayAvailable for same-day shipping
    15.44 €
    ( 18.37 € )
    Stock item: 1 working dayAvailable for same-day shipping
    15.44 €
    ( 18.37 € )
    Stock item: 1 working dayAvailable for same-day shipping
    16.58 €
    ( 19.73 € )
    Stock item: 1 working dayAvailable for same-day shipping
    16.58 €
    ( 19.73 € )
    Stock item: 1 working dayAvailable for same-day shipping
    16.58 €
    ( 19.73 € )
    5 working days
    17.84 €
    ( 21.23 € )
    Stock item: 1 working dayAvailable for same-day shipping
    18.99 €
    ( 22.60 € )
    Stock item: 1 working dayAvailable for same-day shipping
    21.26 €
    ( 25.30 € )
    Stock item: 1 working dayAvailable for same-day shipping
    21.26 €
    ( 25.30 € )
    5 working days
    22.52 €
    ( 26.80 € )
    Stock item: 1 working dayAvailable for same-day shipping
    23.66 €
    ( 28.16 € )
    Stock item: 1 working dayAvailable for same-day shipping
    24.93 €
    ( 29.67 € )
    Stock item: 1 working dayAvailable for same-day shipping
    29.60 €
    ( 35.22 € )
    Stock item: 1 working dayAvailable for same-day shipping
    40.23 €
    ( 47.87 € )
    5 working days
