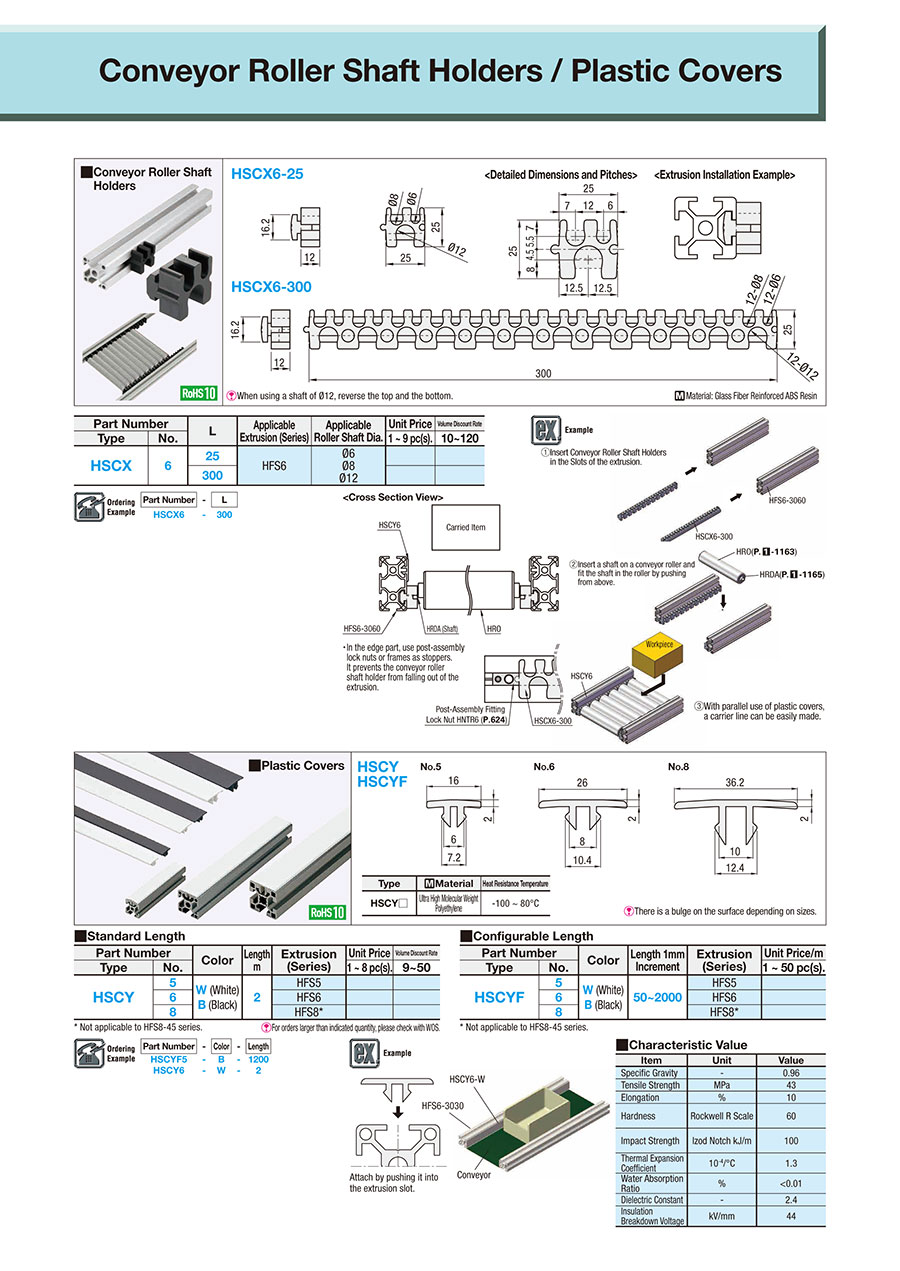

Conveyor Roller Shaft Holders
Mouse over image to enlarge
Part number:

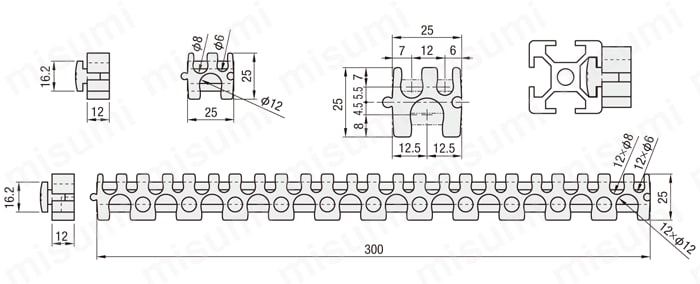

possible part numbers found.Outline drawing and specifications table
HSCX6-25[Detailed Dimensions and Pitches][Extrusion Installation Example]
HSCX6-300
[ ! ] When using a shaft of ø12, reverse the top and the bottom.
HSCX6-300
[ ! ] When using a shaft of ø12, reverse the top and the bottom.
[M]Material: Glass Fiber Reinforced ABS Resin
Specification Table
| Part Number | — | L |
| HSCX6 | — | 300 |
| Part Number | L | Applicable Extrusion (Series) | Applicable Roller Shaft Dia. | |
| Type | No. | |||
| HSCX | 6 | 25 | 6 Series | ⌀6 ⌀8 ⌀12 |
| 300 | ||||
More Information
Outline and specifications
Specifications / Overview
[Section View]
·In the edge part, use post-assembly lock nuts or frames as stoppers.
It prevents the conveyor roller shaft holder from falling out of the extrusion.
·In the edge part, use post-assembly lock nuts or frames as stoppers.
It prevents the conveyor roller shaft holder from falling out of the extrusion.
App. Example
(1) Insert Conveyor Roller Shaft Holders
in the slots of the extrusion.
(2) Insert a shaft on a conveyor
roller and fit the shaft in the
roller by pushing from above.
(3) With joint use of plastic covers,
a carrier line can be easily made.
