Cable Covers
Part number:

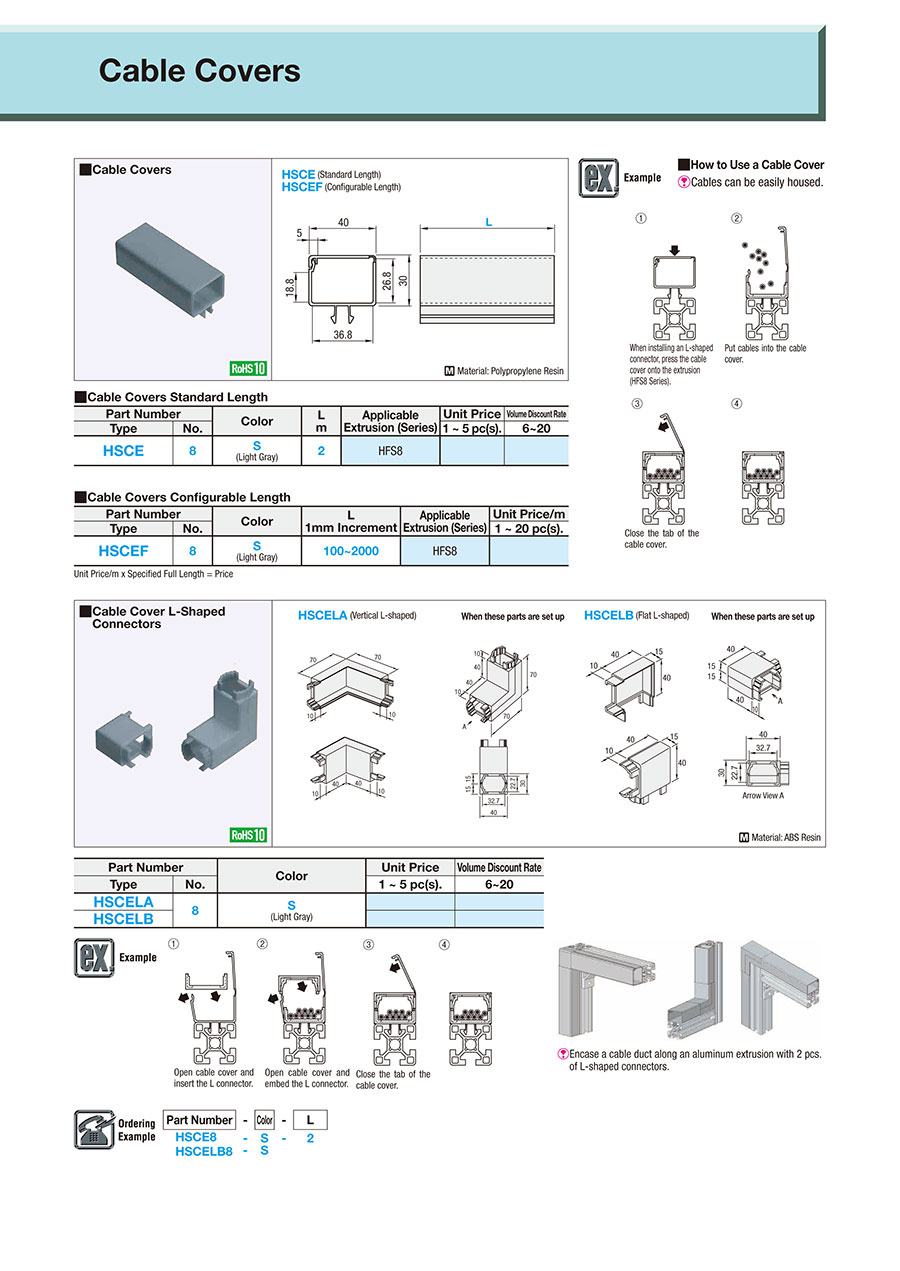

possible part numbers found.Outline drawing and specifications table
HSCE (Standard Length)
HSCEF (Configurable Length)
HSCEF (Configurable Length)
[M]Material: Polypropylene Resin
Specification Table
| Part Number | — | Color | — | L |
| HSCE8 | — | S | — | 2 |
■Cable Covers, Standard Length
■Cable Covers, Configurable Length
| Part Number | Color | L m | Applicable Extrusion (Series) | |
| Type | No. | |||
| HSCE | 8 | S (Light Gray) | 2 | 8 Series |
| Part Number | Color | L 1 mm Increments | Applicable Extrusion (Series) | |
| Type | No. | |||
| HSCEF | 8 | S (Light Gray) | 100 to 2000 | 8 Series |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
33.51 € ( 39.88 € ) | 6 working days |
- ( - ) | 6 working days |
More Information
Basic information
Outline and specifications
App. Example
■How to Use a Cable Cover
[ ! ] Cables can be easily housed.
(1)
When installing an L-shaped connector, press the cable cover onto the extrusion (8 Series).
(2)
Put cables into the cable cover.
(3)
Close the tab of the cable cover.
(4)
