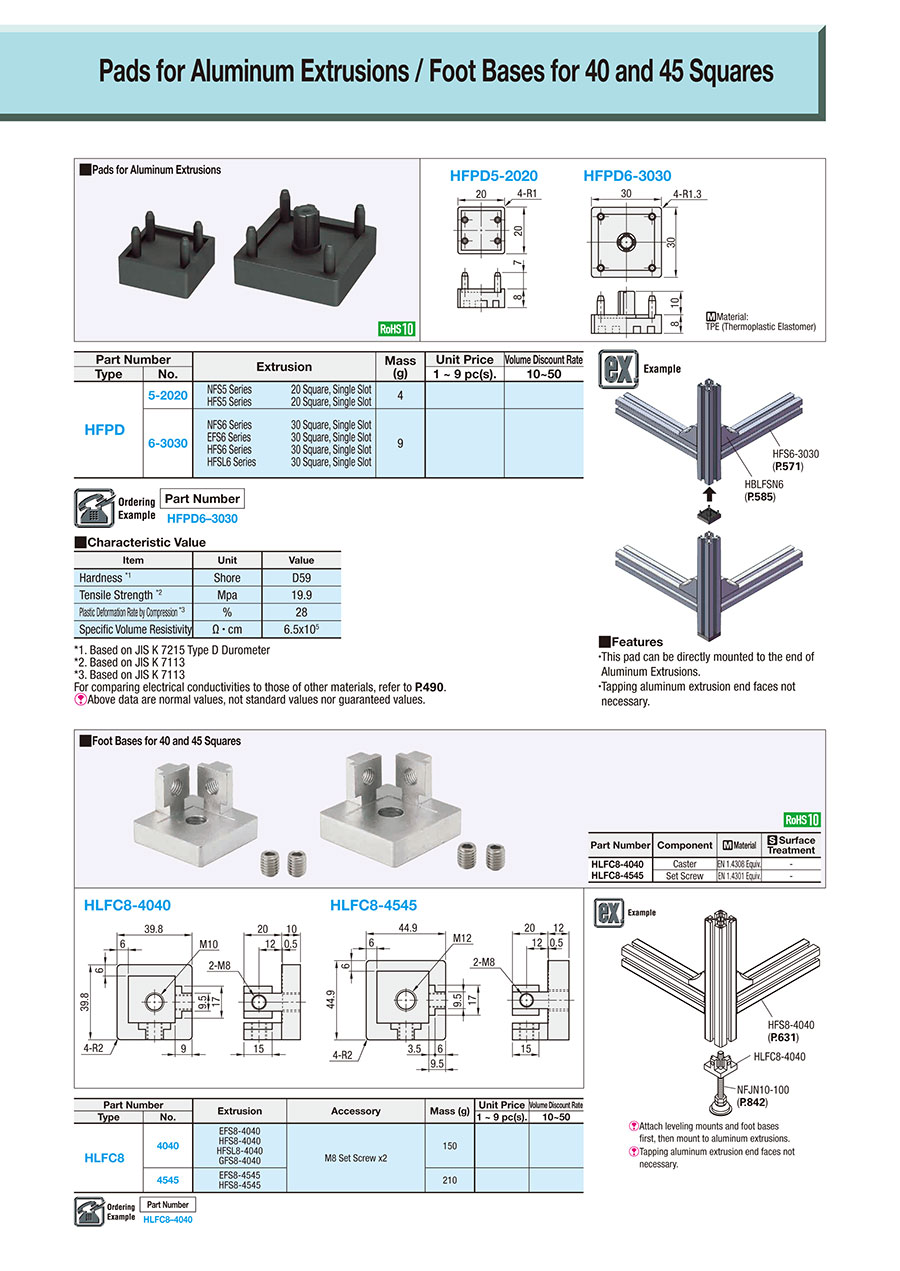

Pads for Aluminum Extrusions
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information
Material:
TPE (Thermoplastic Elastomer)
Specifications
| Part Number |
| HFPD6–3030 |
| Part Number | Extrusion | Mass (g) | Unit Price | Volume Discount Rate | |
| Type | No. | 1 ~ 9 pc(s). | 10~50 | ||
| HFPD | 5-2020 | NFS5 Series 20 Square, Single Slot HFS5 Series 20 Square, Single Slot | 4 | ||
| 6-3030 | NFS6 Series 30 Square, Single Slot EFS6 Series 30 Square, Single Slot HFS6 Series 30 Square, Single Slot HFSL6 Series 30 Square, Single Slot | 9 | |||
| Item | Unit | Value |
| Hardness *1 | Shore | D59 |
| Tensile Strength *2 | Mpa | 19.9 |
| Plastic Deformation Rate by Compression *3 | % | 28 |
| Specific Volume Resistivity | Ω • cm | 6.5x105 |
*2. Based on JIS K 7113
*3. Based on JIS K 7113
For comparing electrical conductivities to those of other materials, refer to P.490.
Above data are normal values, not standard values nor guaranteed values.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HFPD5-2020 |
| HFPD6-3030 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Series | Applicable Frame No. | Applicable Frame Size | |
|---|---|---|---|---|---|---|---|---|
4.03 € | 1 | Available | 5 Days | 10 | MISUMI 5 Series (6 mm Groove Width) | 5 | HFS5 Series - 20 Square, Single Slot | |
4.54 € | 1 | Available | 5 Days | 10 | MISUMI 6 Series (8 mm Groove Width) | 6 | EFS6 Series - 30 Square, Single Slot, HFS6 Series - 30 Square, Single Slot, HFSL6 Series - 30 Square, Single Slot, GFS6 Series - 30 Square, Single Slot |
Loading...
Example of Use
Basic information
| Material | Resin | Material | TPE |
|---|
Configure
Basic Attributes
-
Series
- MISUMI 5 Series (6 mm Groove Width)
- MISUMI 6 Series (8 mm Groove Width)
-
Applicable Frame No.
- 5
- 6
-
Applicable Frame Size
-
Type
- HFPD5-2020
- HFPD6-3030
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
