Pillow Blocks / Cast Housing / Economy
Part number:

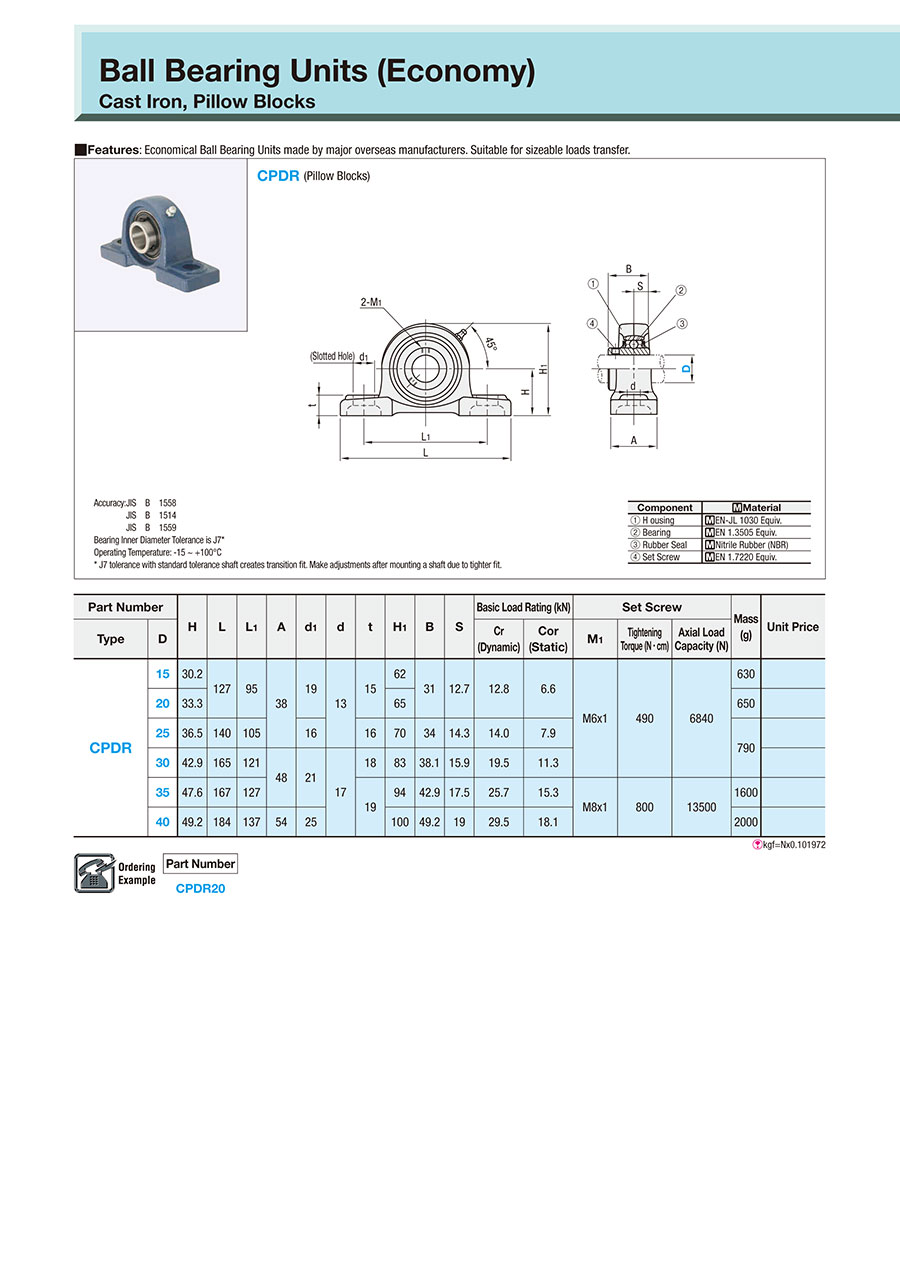

possible part numbers found.Outline drawing and specifications table
| Component | Material |
| Housing | EN-JL 1030 Equiv. |
| Bearing | EN 1.3505 Equiv. |
| Rubber Seal | Nitrile Rubber (NBR) |
| Set Screw | EN 1.7220 Equiv. |
Specifications
| Part Number |
| CPDR20 |
| Part Number | H | L | L1 | A | d1 | d | t | H1 | B | S | Basic Load Rating (kN) | Set Screw | Mass (g) | Unit Price | ||||
| Type | D | Cr (Dynamic) | Cor (Static) | M1 | Tightening Torque (N • cm) | Axial Load Capacity (N) | ||||||||||||
| CPDR | 15 | 30.2 | 127 | 95 | 38 | 19 | 13 | 15 | 62 | 31 | 12.7 | 12.8 | 6.6 | M6x1 | 490 | 6840 | 630 | |
| 20 | 33.3 | 65 | 650 | |||||||||||||||
| 25 | 36.5 | 140 | 105 | 16 | 16 | 70 | 34 | 14.3 | 14.0 | 7.9 | 790 | |||||||
| 30 | 42.9 | 165 | 121 | 48 | 21 | 17 | 18 | 83 | 38.1 | 15.9 | 19.5 | 11.3 | ||||||
| 35 | 47.6 | 167 | 127 | 19 | 94 | 42.9 | 17.5 | 25.7 | 15.3 | M8x1 | 800 | 13500 | 1600 | |||||
| 40 | 49.2 | 184 | 137 | 54 | 25 | 100 | 49.2 | 19 | 29.5 | 18.1 | 2000 | |||||||
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
9.45 € ( 11.25 € ) | Stock item: 1 working dayAvailable for same-day shipping |
10.16 € ( 12.09 € ) | Stock item: 1 working dayAvailable for same-day shipping |
8.31 € ( 9.89 € ) | Stock item: 1 working dayAvailable for same-day shipping |
11.71 € ( 13.93 € ) | Stock item: 1 working dayAvailable for same-day shipping |
25.86 € ( 30.77 € ) | Stock item: 1 working dayAvailable for same-day shipping |
23.54 € ( 28.01 € ) | Stock item: 1 working dayAvailable for same-day shipping |
