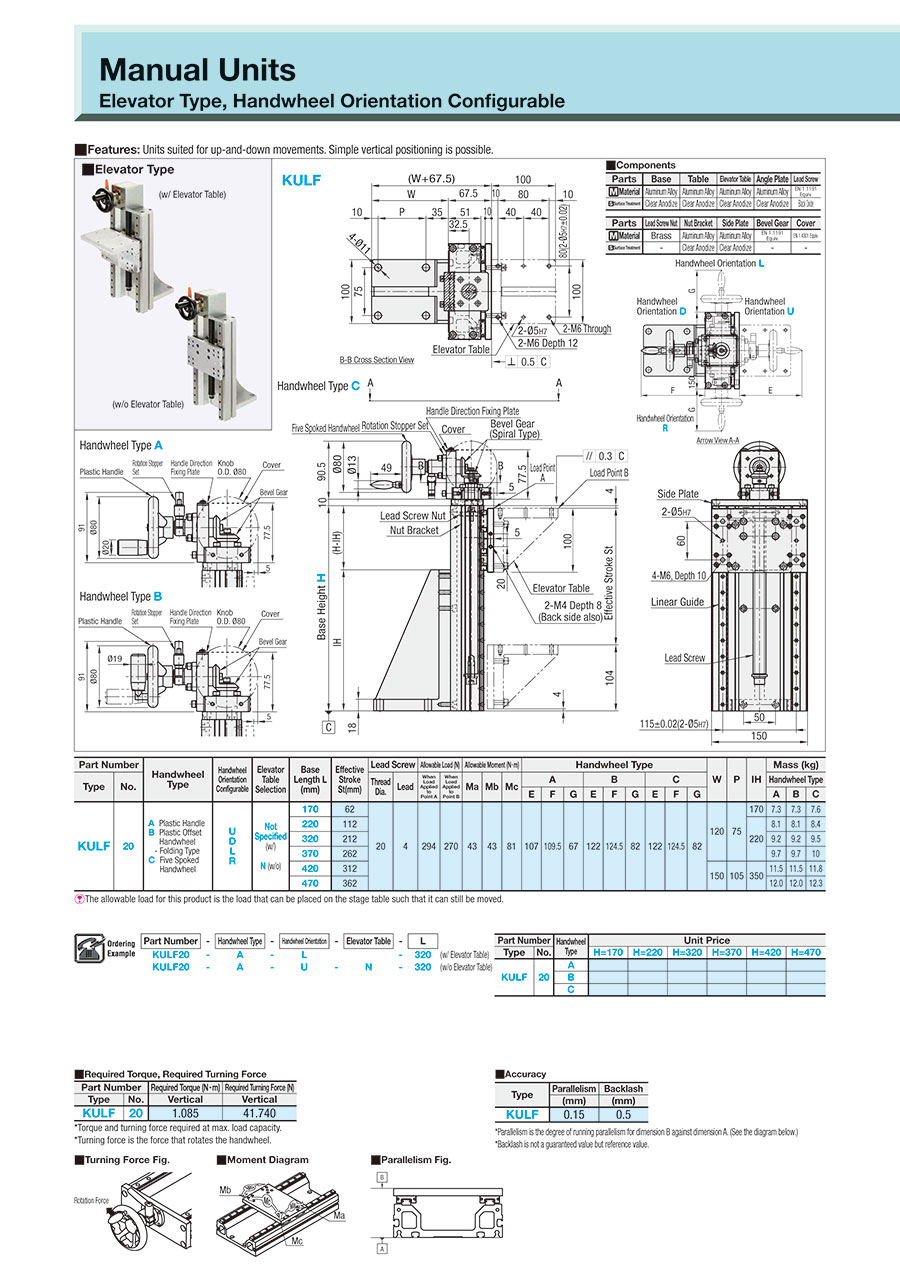

Manually Operated Units / Lifting Type / Handwheel Direction Configurable

■ Components

Parts	Frame	Table	Elevator Table	Angle Plate	Trapezoidal Thread
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	EN 1.1191 Equiv.
Surface Treatment	Clear Anodize	Clear Anodize	Clear Anodize	Clear Anodize	Black Oxide



Parts	Lead Screw Nut	Nut Bracket	Side Plate	Bevel Gear	Cover
Material	Brass	Aluminum Alloy	Aluminum Alloy	EN 1.1191 Equiv.	EN 1.4301 Equiv.
Surface Treatment	—	Clear Anodize	Clear Anodize	—	—

Part Number		Handwheel Type	Knob Configuration of Orientation	Elevator Table Selection	Base Height H (mm)	Effective Stroke St (mm)	Trapezoidal Thread		Allowable Load (N)		Allowable Moment (N⋅m)			Handwheel Type									W	P	IH	Mass (kg)
Type	No.						Thread Dia.	Lead	Point A Under Load	Point B Under Load	Ma	Mb	Mc	A			B			C						Handwheel Type
														E	F	G	E	F	G	E	F	G				A	B	C
KULF	20	A Plastic Handwheel B Plastic Handwheel Folding Type C Five Spoked Handwheel	U D L R	Not Configurable (w/) N(w/o)	170	62	20	4	294	270	43	43	81	107	109.5	67	122	124.5	82	122	124.5	82	120	75	170	7.3	7.3	7.6
					220	112																			220	8.1	8.1	8.4
					320	212																				9.2	9.2	9.5
					370	262																				9.7	9.7	10
					420	312																	150	105	350	11.5	11.5	11.8
					470	362																				12.0	12.0	12.3

The allowable load for this product is the load that can be placed on the stage table such that it can still be moved.
The listed weight is the weight with the elevator table, and -0.9 kg without the elevator table.
