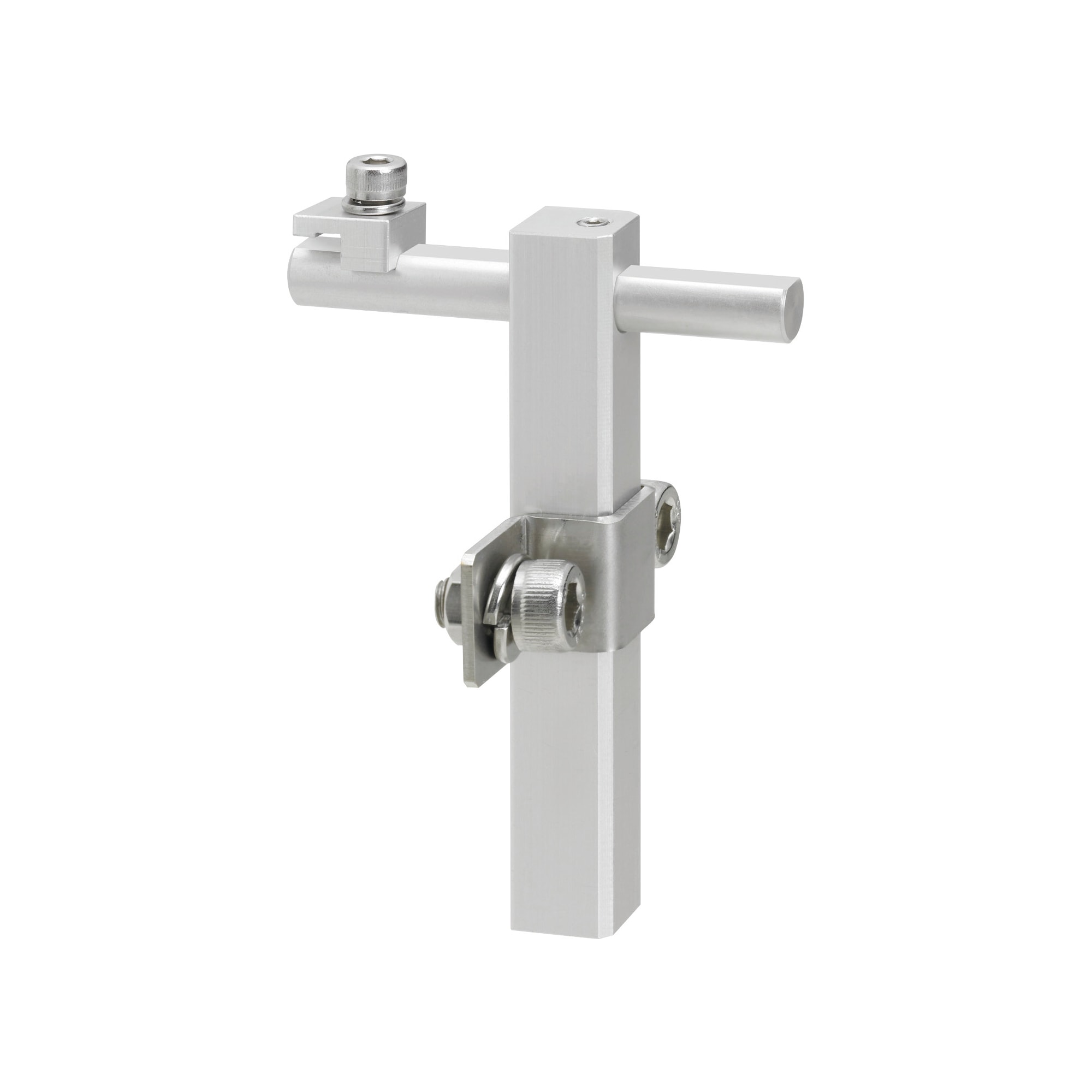

Conveyor Guide Rail Brackets / Standard Type
Mouse over image to enlarge
Part number:

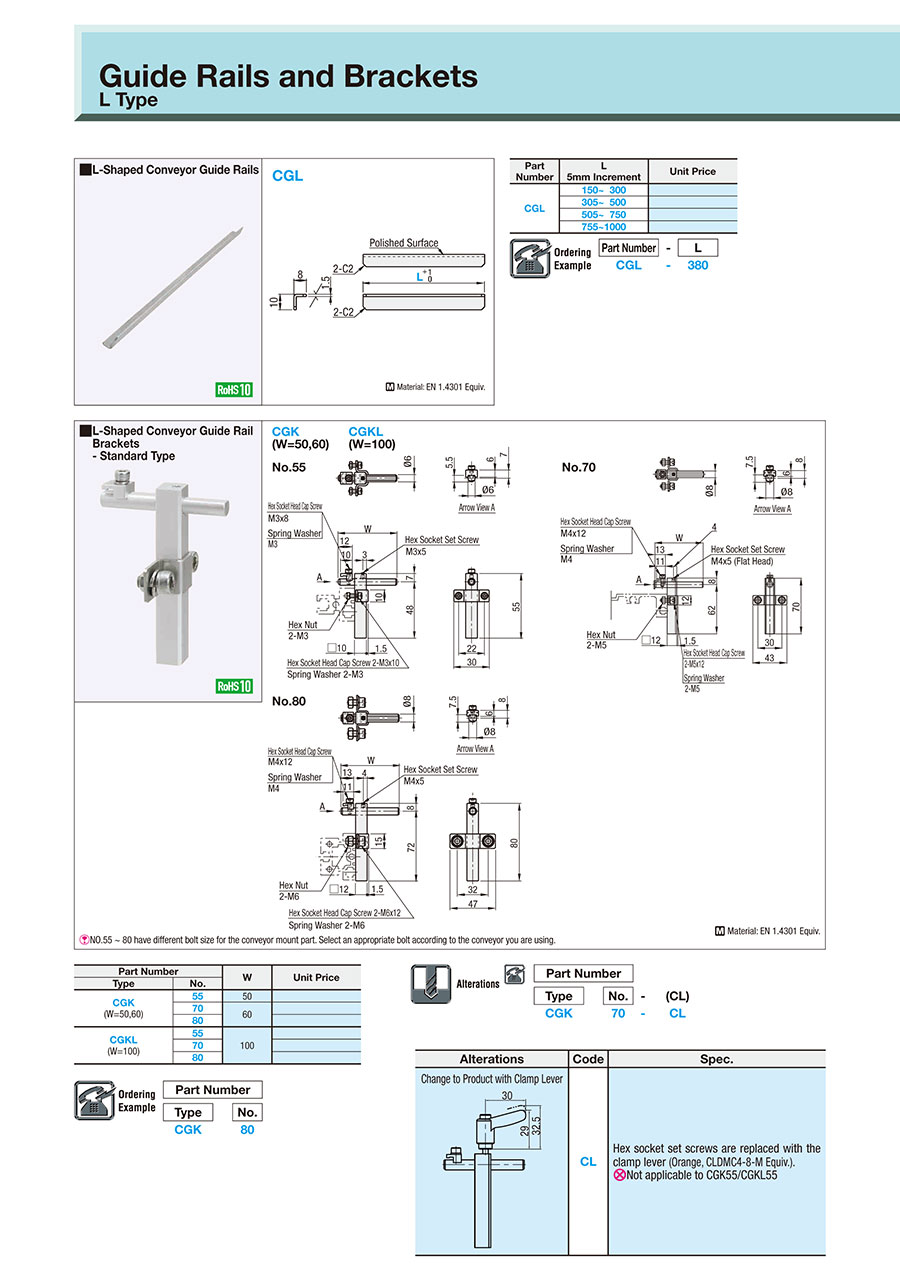

possible part numbers found.Outline drawing and specifications table
CGK CGKL
(W = 50, 60) (W = 100)
[!] No.55 to 80 have different bolt size for the conveyor mount part. Select an appropriate bolt according to the conveyor you are using.(W = 50, 60) (W = 100)
| [M] Material | EN 1.4301 Equiv. |
Specification Table
| Part Number | ||||
| Type | No. | |||
| CGK | 80 | |||
| Part Number | W | |
| Type | No. | |
| CGK (W = 50, 60) | 55 | 50 |
| 70 | 60 | |
| 80 | ||
| CGKL (W = 100) | 55 | 100 |
| 70 | ||
| 80 | ||
Alterations
| Alterations Code | Change to Product with Clamp Lever | Applicable Conditions | Ordering Example | |
| CL |  | Hex socket set screws are replaced with the clamp lever (Orange, CLDMC4-8-M Equivalent). | [ NG ]CGK55/CGKL55 Not applicable | CGK70-CL |
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
33.24 € ( 39.56 € ) | 10 working days |
34.38 € ( 40.91 € ) | 10 working days |
36.02 € ( 42.86 € ) | 10 working days |
35.90 € ( 42.72 € ) | 10 working days |
37.91 € ( 45.11 € ) | 10 working days |
38.79 € ( 46.16 € ) | 10 working days |
More Information
Basic information
[Features] This is a bracket for mounting the workpiece guide (standard type) for conveyor belts.
Outline and specifications
App. Example
