Latch Magnets for Folding Doors

Latch Magnets for Folding Doors

Mouse over image to enlarge

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

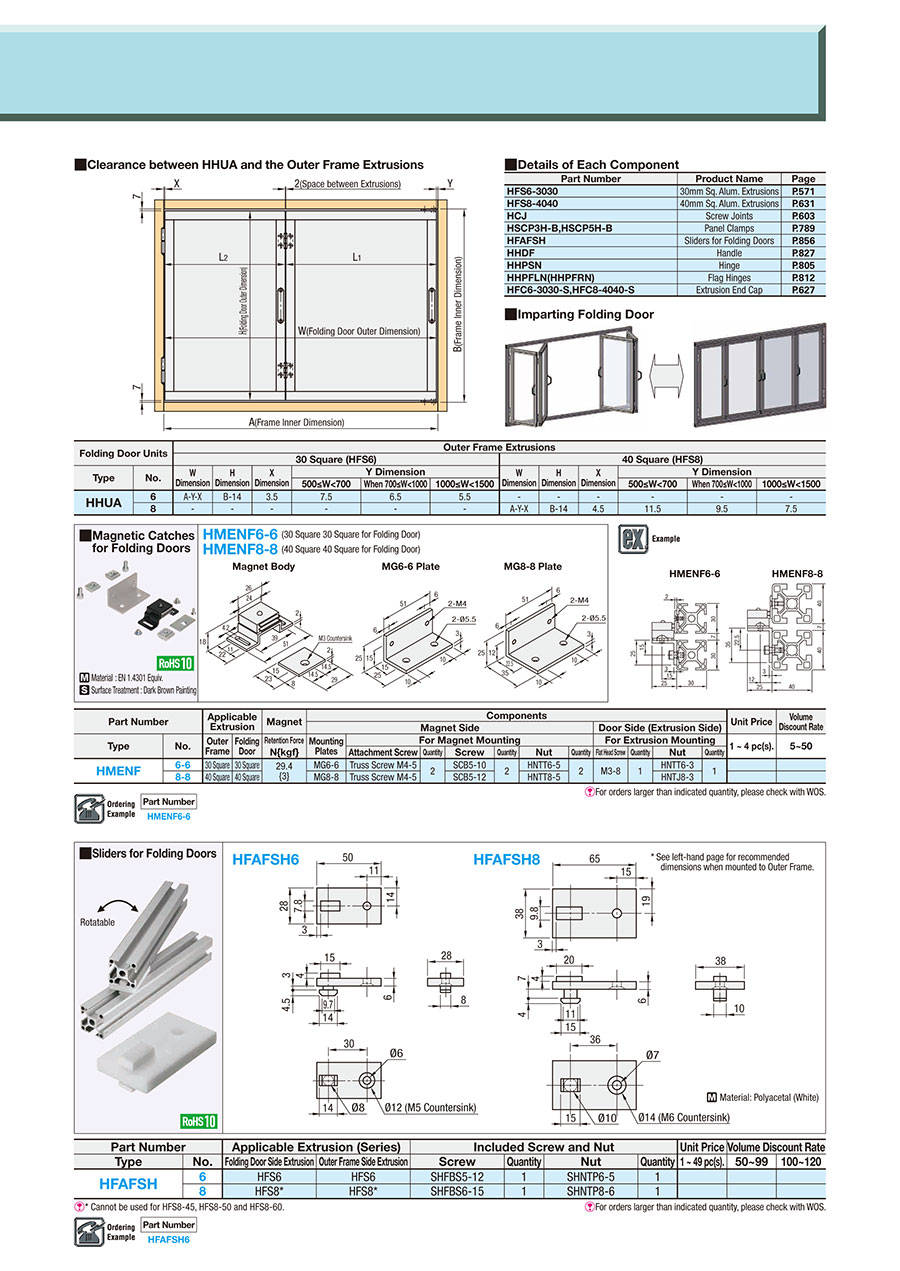

Outline drawing and specifications table

Latch Magnets for Folding Doors:Related Image

Material : EN 1.4301 Equiv.
Surface Treatment : Dark Brown Painting

Specifications

Part Number
HMENF6-6
Part NumberApplicable ExtrusionMagnetComponentsUnit PriceVolume Discount Rate
Magnet SideDoor Side (Extrusion Side)
TypeNo.Outer FrameFolding DoorRetention ForceMounting PlatesFor Magnet MountingFor Extrusion Mounting1 ~ 4 pc(s).5~50
N{kgf}Attachment ScrewQuantityScrewQuantityNutQuantityFlat Head ScrewQuantityNutQuantity
HMENF6-630 Square30 Square29.4
{3}		MG6-6Truss Screw M4-52SCB5-102HNTT6-52M3-81HNTT6-31
8-840 Square40 SquareMG8-8Truss Screw M4-5SCB5-12HNTT8-5HNTJ8-3
For orders larger than indicated quantity, please check with WOS.

Part number list

Number of items
  • 1
    • Part number
    HMENF6-6
    HMENF8-8

    Extrusion No.

    Extrusion Size

    Mounting Outer Frames

    Mounting Frame Folding Doors

    		RoHS?Minimum order quantity
    6
    3030
    30 Square
    30 Square
    10
    1 pieces
    8
    4040
    40 Square
    40 Square
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    14.27 €
    ( 16.98 € )
    6 working days
    14.62 €
    ( 17.40 € )
    6 working days
  • 1

    • More Information

    Basic information


    Magnetic catch for folding doors. Extruded aluminium sections can be joined together.

    Technical information

    Outline and specifications

    Example of Use

    Latch Magnets for Folding Doors:Related Image
