    Handles with Cap

    Handles with Cap

    Click image to view enlarged image

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

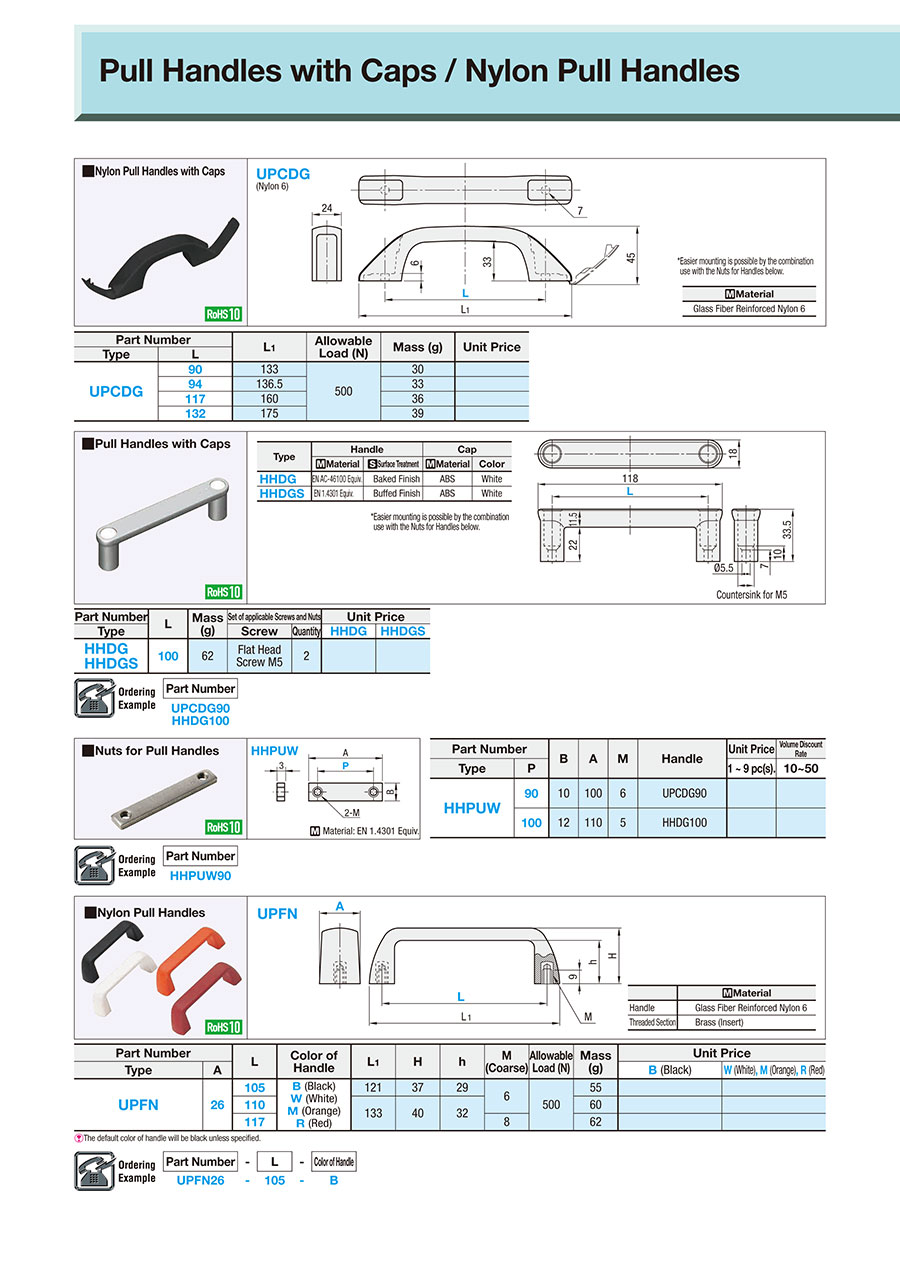

    Outline drawing and specifications table

    Handles with Cap:Related Image

    TypeHandleCap
      Material  Surface Treatment  MaterialColor
    HHDGEN AC-46100 Equiv.Baked FinishABSWhite
    HHDGSEN 1.4301 Equiv.Buffed FinishABSWhite

    Specifications

    Part Number
    UPCDG90
    HHDG100
    Part NumberLMass (g)Set of applicable Screws and NutsUnit Price
    TypeScrewQuantityHHDGHHDGS
    HHDG
    HHDGS    		10062Flat Head Screw M52

    Part number list

    Number of items
  • 1
    • Part number
    HHDG100
    HHDGS100

    Material

    Surface Treatment

    		Minimum order quantity
    EN AC-46100 Equiv.
    Baked Paint
    1 pieces
    EN 1.4301 Equiv.
    Buffed Surface
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.11 €
    ( 7.27 € )
    Stock item: 1 working dayAvailable for same-day shipping
    15.75 €
    ( 18.74 € )
    5 working days
  • 1

    • More Information

    Basic information


    [Features]·This capped handle hides the mounting screws and provides an excellent appearance.

    Technical information

    Outline and specifications

    More Information

    *Easier mounting is possible by the combination use with the Nuts for Handles below.
