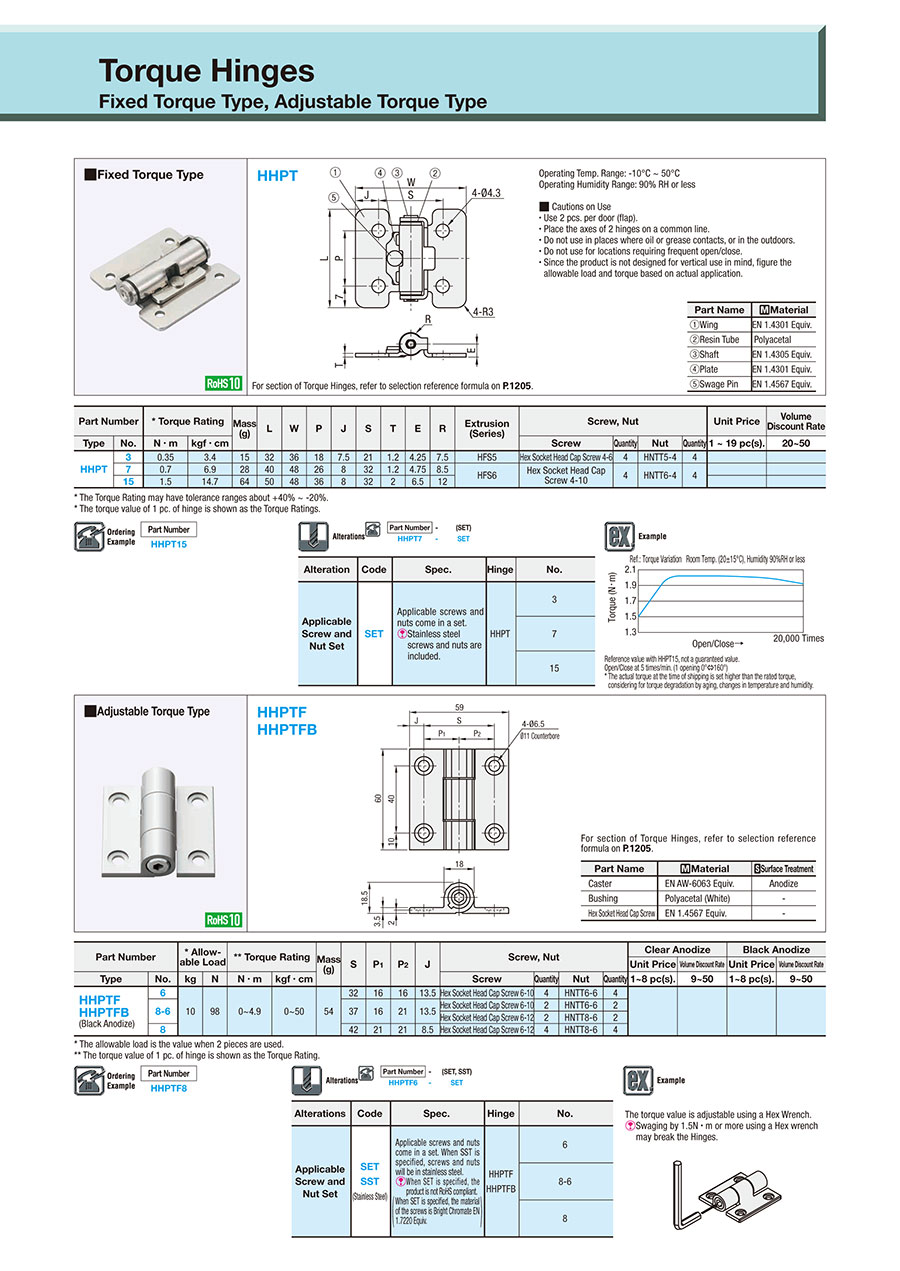

Torque Hinges Torque Standard Type

Part Number		* Torque Rating		Mass (g)	L	W	P	J	S	T	E	R	Extrusion (Series)	Screw, Nut				Unit Price	Volume Discount Rate
Type	No.	N • m	kgf • cm											Screw	Quantity	Nut	Quantity	1 ~ 19 pc(s).	20~50
HHPT	3	0.35	3.4	15	32	36	18	7.5	21	1.2	4.25	7.5	HFS5	Hex Socket Head Cap Screw 4-6	4	HNTT5-4	4
	7	0.7	6.9	28	40	48	26	8	32	1.2	4.75	8.5	HFS6	Hex Socket Head Cap Screw 4-10	4	HNTT6-4	4
	15	1.5	14.7	64	50	48	36	8	32	2	6.5	12

* The Torque Rating may have tolerance ranges about +40% ~ -20%.
* The torque value of 1 pc. of hinge is shown as the Torque Ratings.
