    Detachable Hinges (Aluminum)

    Detachable Hinges (Aluminum)

    Click image to view enlarged image

    Part number:

    Still undefined. 18 possible part numbers found.
    Quantity:

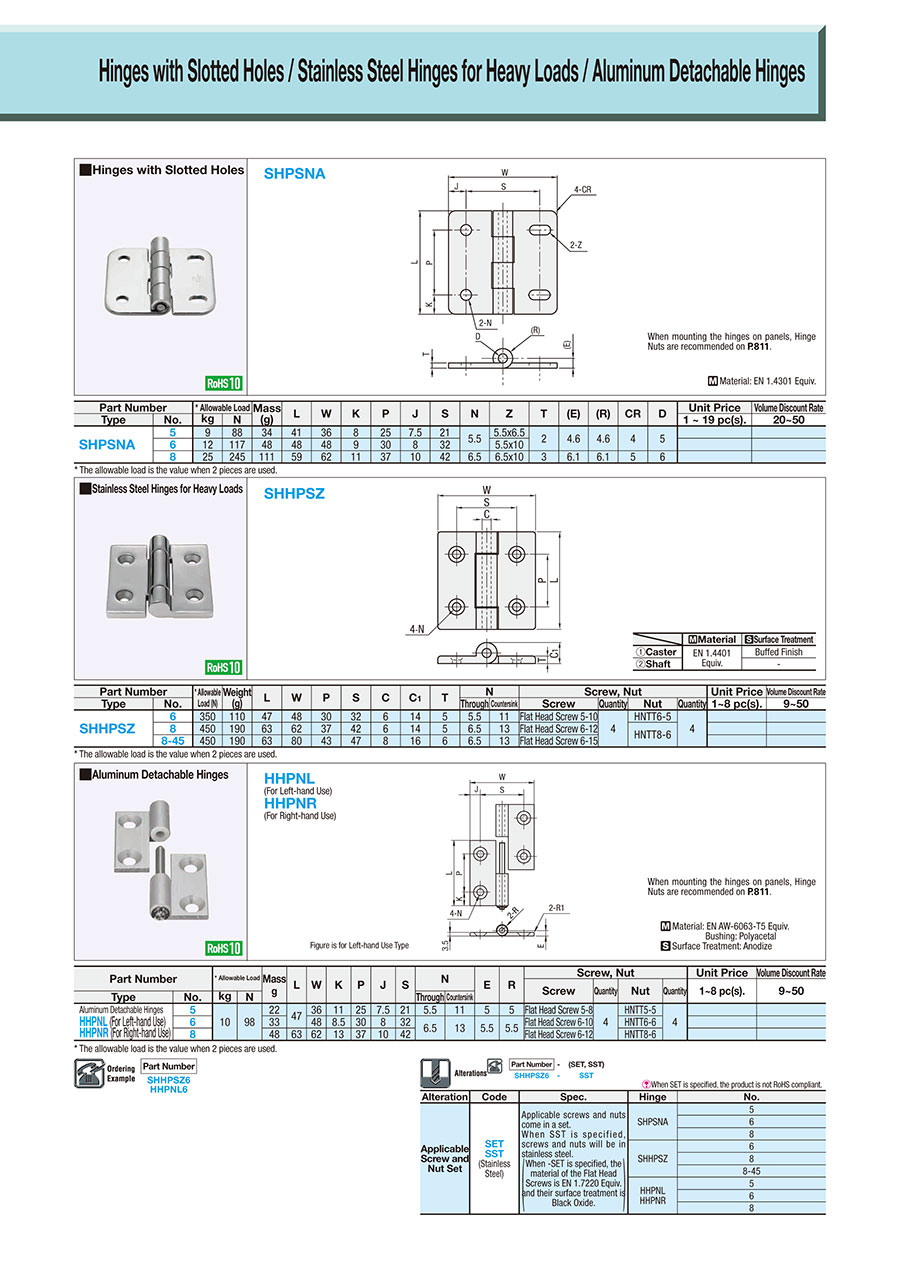

    Outline drawing and specifications table

    Detachable Hinges (Aluminum):Related Image

       Material: EN AW-6063-T5 Equiv.
    Bushing: Polyacetal
       Surface Treatment: Anodize

    Specifications

    Part Number
    SHHPSZ6
    HHPNL6
    Part Number* Allowable LoadMass gLWKPJSNERScrew, NutUnit PriceVolume Discount Rate
    ScrewQuantityNutQuantity1~8 pc(s).9~50
    TypeNo.kgNThroughCountersink
    Aluminum Detachable Hinges
    HHPNL (For Left-hand Use)
    HHPNR (For Right-hand Use)    		5109822473611257.5215.51155Flat Head Screw 5-84HNTT5-54
    633488.5308326.5135.55.5Flat Head Screw 6-10HNTT6-6
    848636213371042Flat Head Screw 6-12HNTT8-6
    * The allowable load is the value when 2 pieces are used.
