Hand Switching Valves / with Lever
Mouse over image to enlarge
Part number:

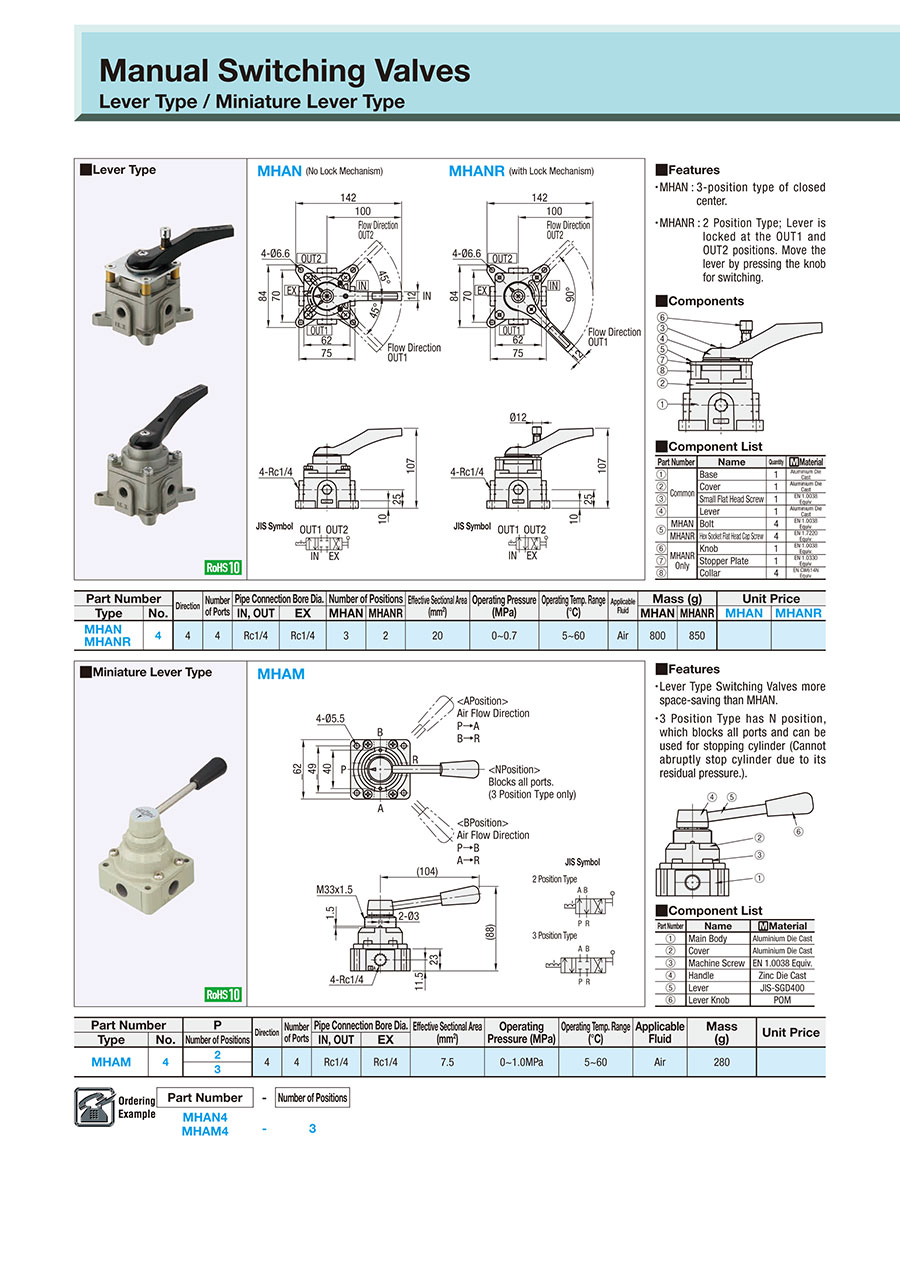

possible part numbers found.Outline drawing and specifications table
MHAM JIS Symbol
2 Position Type 3 Position
2 Position Type 3 Position
Specification Table
| Part Number | — | Number of Positions |
| MHAM4 | — | 3 |
| Part Number | P | Direction | Port Qty. | Pipe Connection Bore Dia. | Effective Cross Sectional Area (mm2) | Operating Pressure Range (MPa) | Operating Temp, Range (°C) | Applicable Fluid | Mass (g) | ||
| Type | No. | Number of Positions | IN・OUT | EX | |||||||
| MHAM | 4 | 2 | 4 | 4 | Rc1/4 | Rc1/4 | 7.5 | 0 to 1.0 MPa | 5 to 60 | Air | 280 |
| 3 | |||||||||||
More Information
Basic information
Pneumatic equipment can be controlled with the compact lever. -Switching valve with lever, which is more space-saving than MHAN.
Outline and specifications
Specifications/Overview
■ Features
·Lever Type Switching Valves more space-saving than MHAN.
·3 Position Type has N position, which blocks all ports and can be used for stopping cylinder. (Cannot abruptly stop cylinder due to its residual pressure.)
·Lever Type Switching Valves more space-saving than MHAN.
·3 Position Type has N position, which blocks all ports and can be used for stopping cylinder. (Cannot abruptly stop cylinder due to its residual pressure.)

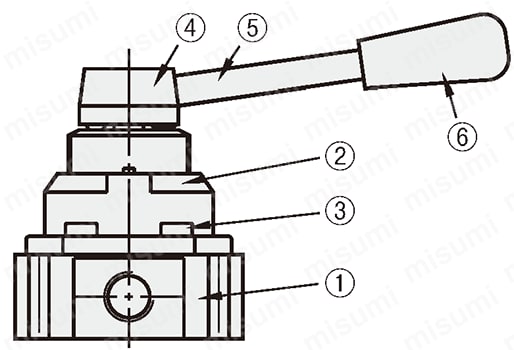

■ Component Details | ■Component List
|
