Round Bar Conveyor Guide Rail Brackets / Standard Type
Mouse over image to enlarge
Part number:

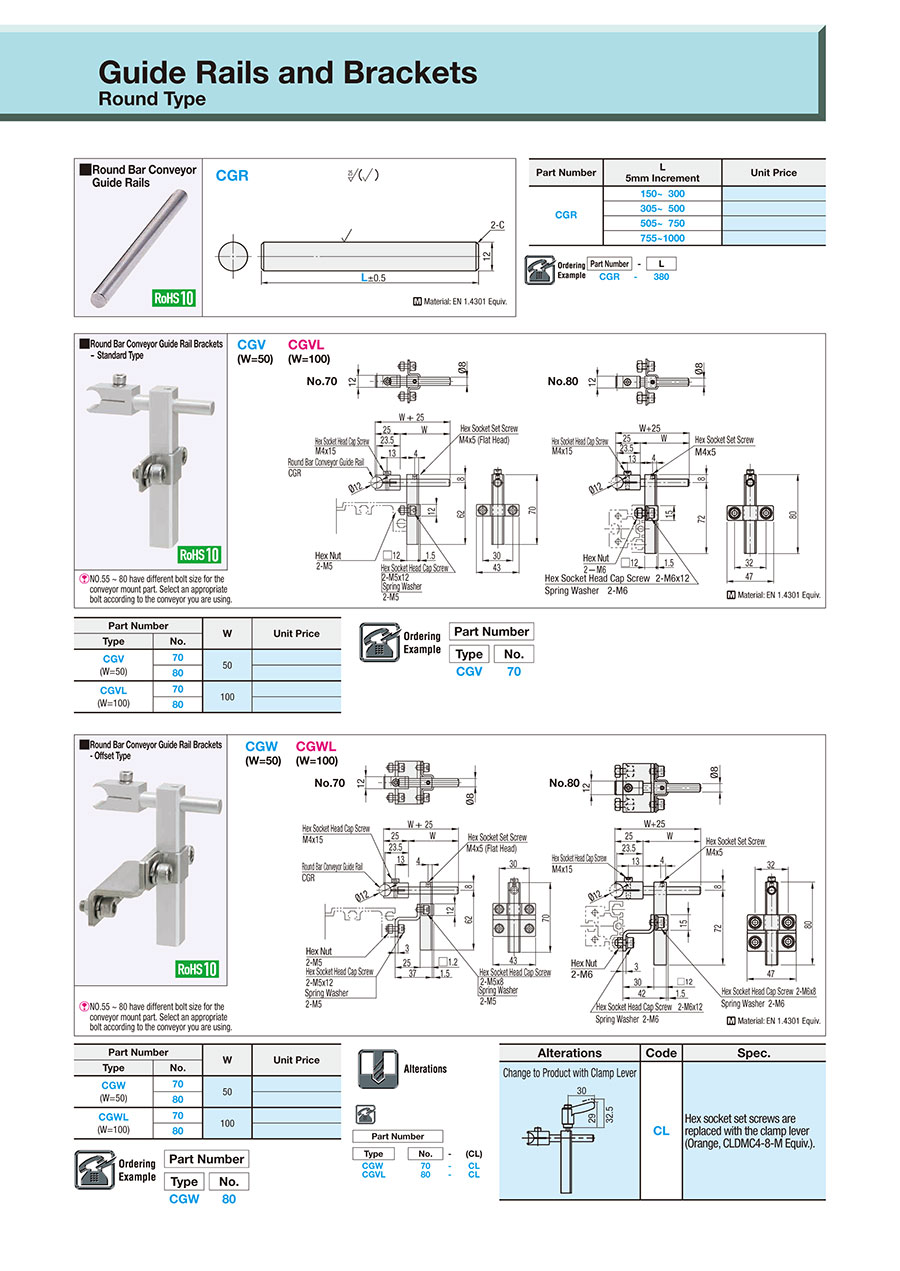

possible part numbers found.Outline drawing and specifications table
CGV
(W=50)
(W=50)
CGVL
(W=100)
(W=100)
[!] No.55 to 80 have different bolt size for the conveyor mount part. Select an appropriate bolt according to the conveyor you are using.
| [M] Material | EN 1.4301 Equiv. |
Specification Table
| Part Number | ||
| Type | No. | |
| CGV | 70 | |
| Part Number | W | |
| Type | No. | |
| CGV (W = 50) | 70 | 50 |
| 80 | ||
| CGVL (W = 100) | 70 | 100 |
| 80 | ||
Alterations
| Alterations Code | Change to Product with Clamp Lever | Ordering Example | |
| CL |  | Hex socket set screws are replaced with the clamp lever (Orange, CLDMC4-8-M Equivalent). | CGW70-CL |
More Information
Basic information
[Features] This is a workpiece guide mounting bracket (standard type) for conveyor belts.
