Castors / Threaded / Swivel with Plate
Mouse over image to enlarge
Part number:

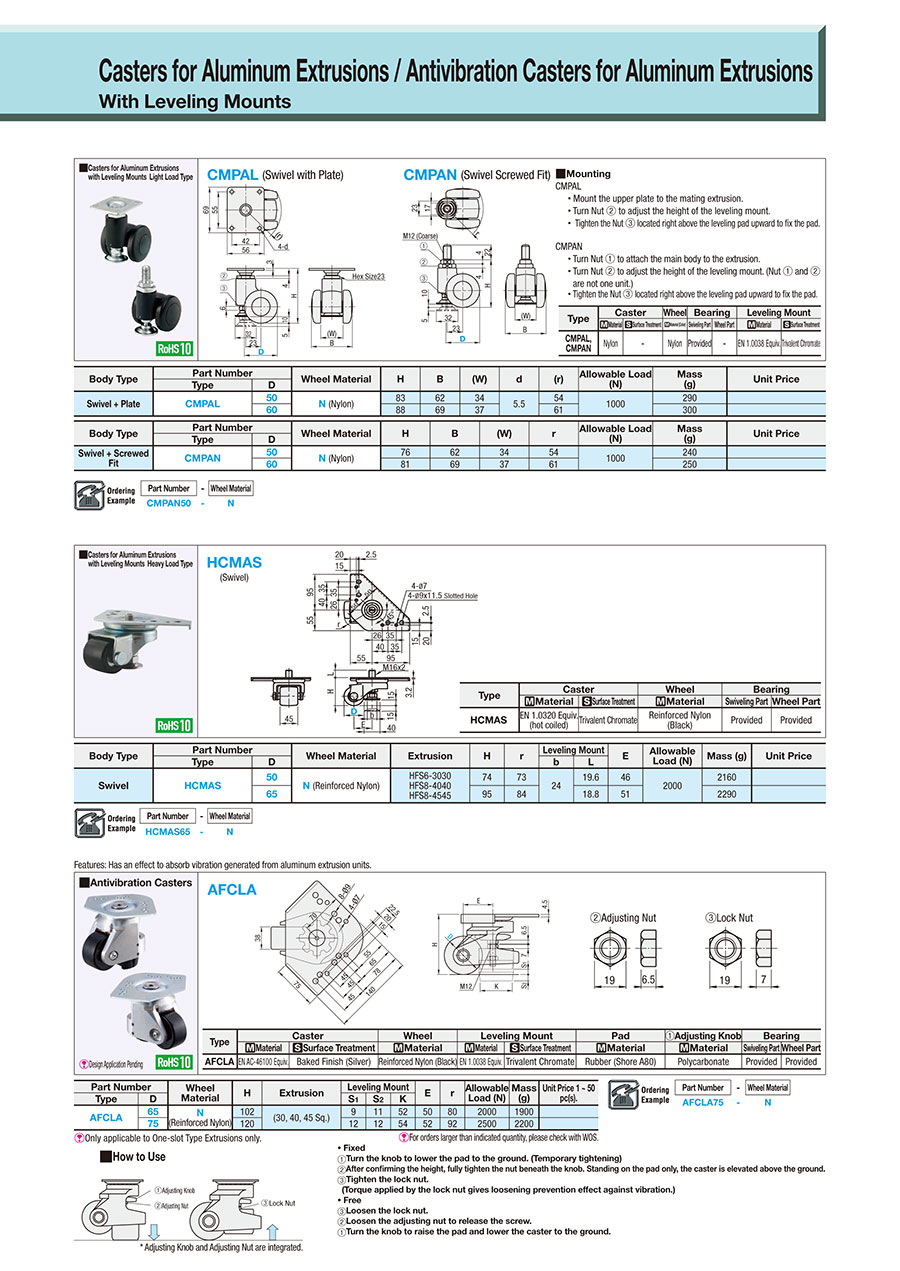

possible part numbers found.Outline drawing and specifications table
■Mounting
CMPAL
• Mount the upper plate to the mating extrusion.
• Turn Nut to adjust the height of the leveling mount.
• Tighten the Nut located right above the leveling pad upward to fix the pad.
CMPAN
• Turn Nut to attach the main body to the extrusion.
• Turn Nut to adjust the height of the leveling mount. (Nut and are not one unit.)
• Tighten the Nut located right above the leveling pad upward to fix the pad.
| Type | Caster | Wheel | Bearing | Leveling Mount | |||
| Material | Surface Treatment | Material (Color) | Swiveling Part | Wheel Part | Material | Surface Treatment | |
| CMPAL, CMPAN | Nylon | - | Nylon | Provided | - | EN 1.0038 Equiv. | Trivalent Chromate |
Specifications
| Part Number | - | Wheel Material |
| CMPAN50 | - | N |
| Body Type | Part Number | Wheel Material | H | B | (W) | d | (r) | Allowable Load (N) | Mass (g) | Unit Price | |
| Type | D | ||||||||||
| Swivel + Plate | CMPAL | 50 | N (Nylon) | 83 | 62 | 34 | 5.5 | 54 | 1000 | 290 | |
| 60 | 88 | 69 | 37 | 61 | 300 | ||||||
| Body Type | Part Number | Wheel Material | H | B | (W) | r | Allowable Load (N) | Mass (g) | Unit Price | |
| Type | D | |||||||||
| Swivel + Screwed Fit | CMPAN | 50 | N (Nylon) | 76 | 62 | 34 | 54 | 1000 | 240 | |
| 60 | 81 | 69 | 37 | 61 | 250 | |||||
More Information
Basic information
[Features] A roller for aluminium extrusions with an adjustment device and lightweight design.
