MISUMI

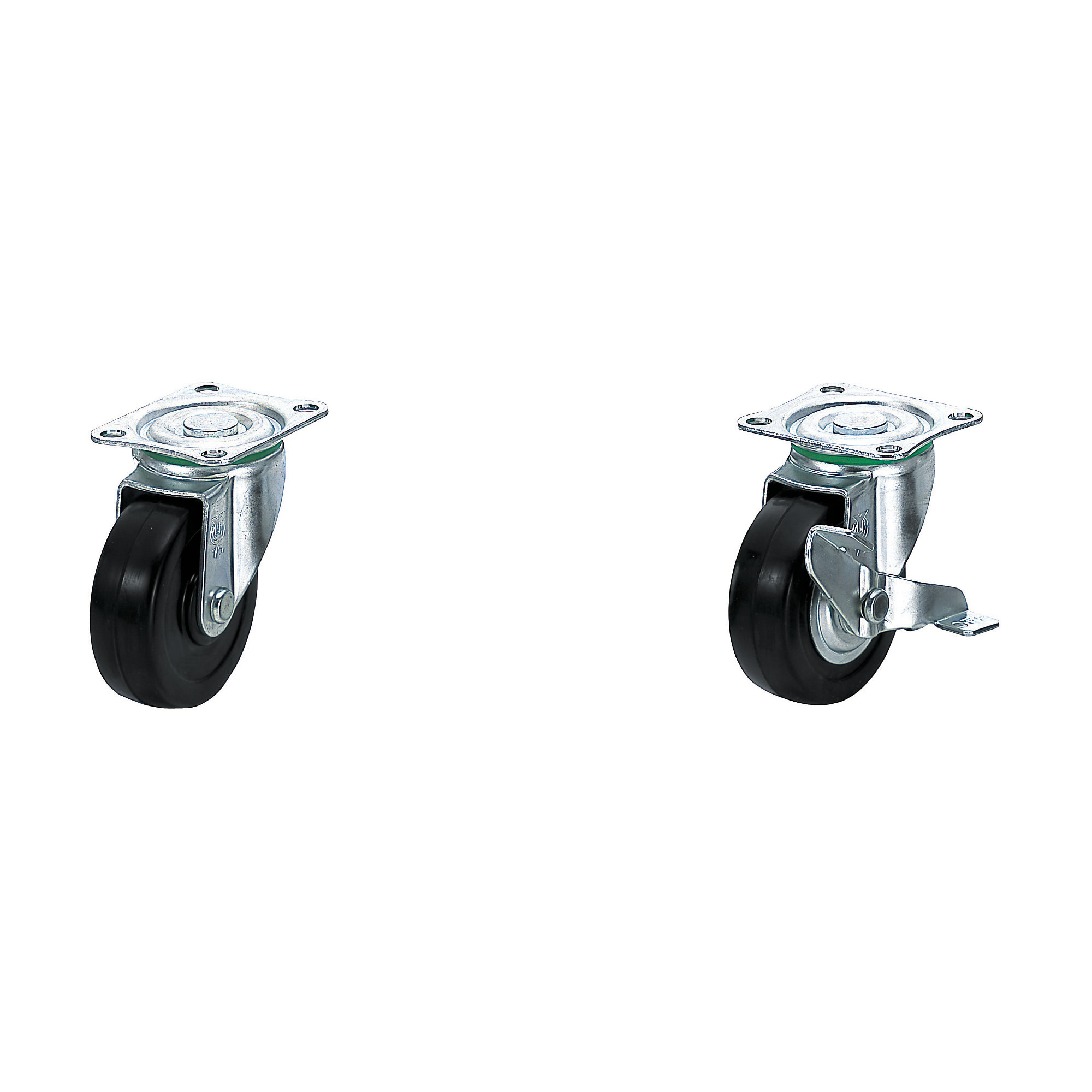

Castors / Conductive / Swivel Type

Mouse over image to enlarge

CatalogP.2-1068

Part number:

Still undefined. 54 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Swivel

Fixed
([ ! ] This type does not swivel.)

Swivel with Stopper

Stainless Steel

CRJDG
CSRJDG
CSMJU

CRKDG
CSRKDG
CSMKU

CRSDG
CSRSDG
CSMSPU

D125·150

[ ! ] r indicates the swivel radius of wheel.

Type	Main Body		Wheel	Bearing
	[M] Material	[S] Surface Treatment	[M]Material (Color)	Swiveling Part	Wheel
CRJDG·CRKDG·CRSDG	EN 1.0320 Equiv. (hot coiled)	Trivalent Chromate	Electrically Conductive Rubber (Black) *	Provided	Not Provided
CSRJDG·CSRKDG·CSRSDG	EN 1.4301 Equiv.	Barrel Grinding
CSMJU·CSMKU·CSMSPU	EN 1.4301 Equiv.		Rubber (Black)
			Urethane (Gray)		For D dimensions 100, 125 and 150 only
			Nylon (White)		For D dimensions 150 only.

* Specific Volume Resistivity of Electrically Conductive Rubber: 10² to 10⁴ Ω·cm " ! " CSMJU, CSMKU, and CSMSPU are not electrically conductive.

Specification Table

Part Number	—	Wheel Material
CRJDG100 CSMKU125	—	U

■Electrically Conductive Wheel

Main Body	Part Number			B	H	A	C	r		K		F	d	t	E	G	Allowable Load (N)	Mass (g)
	Steel Type	Stainless Steel	D					Steel Type	Stainless Steel	Steel Type	Stainless Steel
Swivel	CRJDG	CSRJDG	50	20	65	70	42	47	47	—	—	56	6.5	2	22	28	300	190
			65	25	85		58	61	61			55	8.8	2.3	27	42	500	370
			75		93			66	66						28		600	420
			100		122	100		82	82			82			31	40	500	600
Fixed	CRKDG	CSRKDG	50	20	65	70	42	—	—	—	—	56	6.5	2	—	28	300	140
			65	25	85		47					55	8.8	2.3			500	250
			75		93												600	290
			100		122	100	58					82				40	500	510
Stopper	CRSDG	CSRSDG	50	20	65	70	42	51	51	32	31	56	6.5	2	22	28	300	210
			65	25	85		58	67	67	43	40	55	8.8	2.3	27	42	500	430
			75		93			68	68						28		600	470
			100		122	100		82	82	44	43	82			31	40	500	670

■Stainless Steel Casters

Main Body	Part Number		Wheel Material	B			H	A	C	F₁	F₂	d	t	E	G₁	G₂	K	r	Allowable Load (N)			Mass (g)
Main Body	Type	D	Wheel Material	R (Rubber)	U (Urethane)	N (Nylon)	H	A	C	F₁	F₂	d	t	E	G₁	G₂	K	r	R	U	N	Mass (g)
Swivel	CSMJU	75	R (Rubber)1 U (Urethane) N (Nylon)2	25	26	25	93	70	58	55	—	8.8	2.3	28	42	—	—	66	600	700	800	390
		100		29	32	32	132	90	90	71	68	11	3	32	71	68		82	800	1000	1000	950
		125		32	32	—	168	102	102	80	75			36	80	75		99	1000	1200	—	1230
		150		—	40	40	190	102	102	80	75			40	80	75		115	—	1800	1600	1500
Fixed	CSMKU	75		25	26	25	93	70	47	55	—	8.8	2.3	—	28	—	—	—	600	700	800	270
		100		29	32	32	132	110	75	90	80	11	3		50	45			800	1000	1000	720
		125		32	32	—	168	140	94	112	100				53	56			1000	1200	—	1180
		150		—	40	40	190	102	102	80	75				80	75			—	1800	1600	1290
With Stopper	CSMSPU	75		25	26	25	93	70	58	55	—	8.8	2.3	28	42	—	43	68	600	700	800	430
		100		29	32	32	132	90	90	71	68	11	3	32	71	68	55	86	800	1000	1000	1060
		125		32	32	—	168	102	102	80	75			34	80	75	54	97	1000	1200	—	1340
		150		—	40	40	190	102	102	80	75			40	80	75	65	115	—	1800	1600	1720

[ ! ]*1. R(Rubber) Type of D dimension 150 is not available for Swivel, Fixed and Stopper Types.
[ ! ]*2. N(Nylon) Type of D dimension 125 is not available for Swivel, Fixed and Stopper Type.

Part number list

Number of items

Part number

Caster Type

[H] Mounting Height

(mm)

Properties

Load Range

(daN)

Stopper

Allowable Load

(daN)

Wheel Material

Wheel Characteristics

Fitting Material

Mounting Hole Pitch, Longitudinal Direction

(mm)

Mounting Hole Pitch, Transverse Direction

(mm)

Plate Length

(mm)

Plate Width

(mm)

[D] Wheel Diameter

(mm)

Wheel Width B

(mm)

Load Category

Bearing in Wheel

RoHS?

Minimum order quantity

Plate Type Swivel	65	[Antistatic] Electrical Conductivity	Up to 35.00	Not Provided	30	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	56	28	70	42	50	20	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	85	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	55	42	70	58	65	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	93	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	60	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	55	42	70	58	75	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	122	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	82	40	100	58	100	25	Light Load	Not Provided	10	1 pieces
Plate Type Fixed	65	[Antistatic] Electrical Conductivity	Up to 35.00	Not Provided	30	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	56	28	70	42	50	20	Light Load	Not Provided	10	1 pieces
Plate Type Fixed	85	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	55	28	70	47	65	25	Light Load	Not Provided	10	1 pieces
Plate Type Fixed	93	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	60	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	55	28	70	47	75	25	Light Load	Not Provided	10	1 pieces
Plate Type Fixed	122	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	82	40	100	58	100	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	65	[Antistatic] Electrical Conductivity	Up to 35.00	With Rotation Stopper	30	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	56	28	70	42	50	20	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	85	[Antistatic] Electrical Conductivity	35.01 to 80.00	With Rotation Stopper	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	55	42	70	58	65	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	93	[Antistatic] Electrical Conductivity	35.01 to 80.00	With Rotation Stopper	60	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	55	42	70	58	75	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	122	[Antistatic] Electrical Conductivity	35.01 to 80.00	With Rotation Stopper	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Steel	82	40	100	58	100	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	93	-	35.01 to 80.00	Not Provided	80	[Nylon] Nylon (General)	Not Provided	Stainless Steel	55	42	70	58	75	25	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	93	-	35.01 to 80.00	Not Provided	60	Rubber	Not Provided	Stainless Steel	55	42	70	58	75	25	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	93	-	35.01 to 80.00	Not Provided	70	[Urethane] Urethane (General)	Not Provided	Stainless Steel	55	42	70	58	75	26	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	132	-	80.01 to 140.00	Not Provided	100	[Nylon] Nylon (General)	Not Provided	Stainless Steel	71	71	90	90	100	32	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	132	-	35.01 to 80.00	Not Provided	80	Rubber	Not Provided	Stainless Steel	71	71	90	90	100	29	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	132	-	80.01 to 140.00	Not Provided	100	[Urethane] Urethane (General)	Not Provided	Stainless Steel	71	71	90	90	100	32	Light/Medium Load	Provided	10	1 pieces
Plate Type Swivel	168	-	80.01 to 140.00	Not Provided	100	Rubber	Not Provided	Stainless Steel	80	80	102	102	125	32	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	168	-	80.01 to 140.00	Not Provided	120	[Urethane] Urethane (General)	Not Provided	Stainless Steel	80	80	102	102	125	32	Light/Medium Load	Provided	10	1 pieces
Plate Type Swivel	190	-	140.01 to 220.00	Not Provided	160	[Nylon] Nylon (General)	Not Provided	Stainless Steel	80	80	102	102	150	40	Light/Medium Load	Provided	10	1 pieces
Plate Type Swivel	190	-	140.01 to 220.00	Not Provided	180	[Urethane] Urethane (General)	Not Provided	Stainless Steel	80	80	102	102	150	40	Light/Medium Load	Provided	10	1 pieces
Plate Type Fixed	93	-	35.01 to 80.00	Not Provided	80	[Nylon] Nylon (General)	Not Provided	Stainless Steel	55	28	70	47	75	25	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	93	-	35.01 to 80.00	Not Provided	60	Rubber	Not Provided	Stainless Steel	55	28	70	47	75	25	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	93	-	35.01 to 80.00	Not Provided	70	[Urethane] Urethane (General)	Not Provided	Stainless Steel	55	28	70	47	75	26	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	132	-	80.01 to 140.00	Not Provided	100	[Nylon] Nylon (General)	Not Provided	Stainless Steel	90	50	110	75	100	32	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	132	-	35.01 to 80.00	Not Provided	80	Rubber	Not Provided	Stainless Steel	90	50	110	75	100	29	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	132	-	80.01 to 140.00	Not Provided	100	[Urethane] Urethane (General)	Not Provided	Stainless Steel	90	50	110	75	100	32	Light/Medium Load	Provided	10	1 pieces
Plate Type Fixed	168	-	80.01 to 140.00	Not Provided	100	Rubber	Not Provided	Stainless Steel	112	53	140	94	125	32	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Fixed	168	-	80.01 to 140.00	Not Provided	120	[Urethane] Urethane (General)	Not Provided	Stainless Steel	112	53	140	94	125	32	Light/Medium Load	Provided	10	1 pieces
Plate Type Fixed	190	-	140.01 to 220.00	Not Provided	160	[Nylon] Nylon (General)	Not Provided	Stainless Steel	80	80	102	102	150	40	Light/Medium Load	Provided	10	1 pieces
Plate Type Fixed	190	-	140.01 to 220.00	Not Provided	180	[Urethane] Urethane (General)	Not Provided	Stainless Steel	80	80	102	102	150	40	Light/Medium Load	Provided	10	1 pieces
Plate Type Swivel	93	-	35.01 to 80.00	With Rotation Stopper	80	[Nylon] Nylon (General)	Not Provided	Stainless Steel	55	42	70	58	75	25	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	93	-	35.01 to 80.00	With Rotation Stopper	60	Rubber	Not Provided	Stainless Steel	55	42	70	58	75	25	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	93	-	35.01 to 80.00	With Rotation Stopper	70	[Urethane] Urethane (General)	Not Provided	Stainless Steel	55	42	70	58	75	26	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	132	-	80.01 to 140.00	With Rotation Stopper	100	[Nylon] Nylon (General)	Not Provided	Stainless Steel	71	71	90	90	100	32	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	132	-	35.01 to 80.00	With Rotation Stopper	80	Rubber	Not Provided	Stainless Steel	71	71	90	90	100	29	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	132	-	80.01 to 140.00	With Rotation Stopper	100	[Urethane] Urethane (General)	Not Provided	Stainless Steel	71	71	90	90	100	32	Light/Medium Load	Provided	10	1 pieces
Plate Type Swivel	168	-	80.01 to 140.00	With Rotation Stopper	100	Rubber	Not Provided	Stainless Steel	80	80	102	102	125	32	Light/Medium Load	Not Provided	10	1 pieces
Plate Type Swivel	168	-	80.01 to 140.00	With Rotation Stopper	120	[Urethane] Urethane (General)	Not Provided	Stainless Steel	80	80	102	102	125	32	Light/Medium Load	Provided	10	1 pieces
Plate Type Swivel	190	-	140.01 to 220.00	With Rotation Stopper	160	[Nylon] Nylon (General)	Not Provided	Stainless Steel	80	80	102	102	150	40	Light/Medium Load	Provided	10	1 pieces
Plate Type Swivel	190	-	140.01 to 220.00	With Rotation Stopper	180	[Urethane] Urethane (General)	Not Provided	Stainless Steel	80	80	102	102	150	40	Light/Medium Load	Provided	10	1 pieces
Plate Type Swivel	65	[Antistatic] Electrical Conductivity	Up to 35.00	Not Provided	30	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	56	28	70	42	50	20	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	85	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	55	42	70	58	65	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	93	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	60	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	55	42	70	58	75	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	122	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	82	40	100	58	100	25	Light Load	Not Provided	10	1 pieces
Plate Type Fixed	65	[Antistatic] Electrical Conductivity	Up to 35.00	Not Provided	30	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	56	28	70	42	50	20	Light Load	Not Provided	10	1 pieces
Plate Type Fixed	85	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	55	28	70	47	65	25	Light Load	Not Provided	10	1 pieces
Plate Type Fixed	93	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	60	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	55	28	70	47	75	25	Light Load	Not Provided	10	1 pieces
Plate Type Fixed	122	[Antistatic] Electrical Conductivity	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	82	40	100	58	100	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	65	[Antistatic] Electrical Conductivity	Up to 35.00	With Rotation Stopper	30	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	56	28	70	42	50	20	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	85	[Antistatic] Electrical Conductivity	35.01 to 80.00	With Rotation Stopper	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	55	42	70	58	65	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	93	[Antistatic] Electrical Conductivity	35.01 to 80.00	With Rotation Stopper	60	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	55	42	70	58	75	25	Light Load	Not Provided	10	1 pieces
Plate Type Swivel	122	[Antistatic] Electrical Conductivity	35.01 to 80.00	With Rotation Stopper	50	[Synthetic Rubber] Electrically Conductive Rubber	Antistatic	Stainless Steel	82	40	100	58	100	25	Light Load	Not Provided	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

4.91 € ( 5.84 € )	5 working days
8.18 € ( 9.73 € )	5 working days
9.45 €3.69 € ( 4.39 € )	Stock item: 1 working dayAvailable for same-day shipping
14.36 € ( 17.09 € )	5 working days
4.41 € ( 5.25 € )	5 working days
6.66 € ( 7.93 € )	5 working days
7.67 €3.91 € ( 4.65 € )	Stock item: 1 working dayAvailable for same-day shipping
13.10 € ( 15.59 € )	5 working days
5.79 € ( 6.89 € )	5 working days
9.58 € ( 11.40 € )	5 working days
10.71 € ( 12.74 € )	5 working days
15.61 € ( 18.58 € )	Stock item: 1 working dayAvailable for same-day shipping
14.61 € ( 17.39 € )	5 working days
16.00 € ( 19.04 € )	5 working days
18.00 € ( 21.42 € )	5 working days
31.99 € ( 38.07 € )	5 working days
33.12 € ( 39.41 € )	5 working days
42.95 € ( 51.11 € )	5 working days
46.22 € ( 55.00 € )	5 working days
59.95 € ( 71.34 € )	5 working days
67.89 € ( 80.79 € )	5 working days
71.91 € ( 85.57 € )	5 working days
7.43 €3.64 € ( 4.33 € )	Stock item: 1 working dayAvailable for same-day shipping
7.67 € ( 9.13 € )	5 working days
8.68 € ( 10.33 € )	5 working days
20.92 € ( 24.89 € )	5 working days
21.79 € ( 25.93 € )	5 working days
31.99 € ( 38.07 € )	5 working days
32.87 € ( 39.12 € )	5 working days
46.60 € ( 55.45 € )	5 working days
52.26 € ( 62.19 € )	5 working days
55.92 € ( 66.54 € )	5 working days
17.76 € ( 21.13 € )	5 working days
18.26 € ( 21.73 € )	5 working days
21.40 € ( 25.47 € )	5 working days
39.92 € ( 47.50 € )	5 working days
40.80 € ( 48.55 € )	5 working days
50.89 € ( 60.56 € )	5 working days
52.14 € ( 62.05 € )	5 working days
67.89 € ( 80.79 € )	5 working days
77.96 € ( 92.77 € )	5 working days
81.98 € ( 97.56 € )	5 working days
9.32 € ( 11.09 € )	5 working days
11.83 € ( 14.08 € )	5 working days
13.35 € ( 15.89 € )	5 working days
26.33 € ( 31.33 € )	5 working days
5.92 € ( 7.04 € )	Stock item: 1 working dayAvailable for same-day shipping
9.32 € ( 11.09 € )	5 working days
10.45 € ( 12.44 € )	5 working days
17.39 € ( 20.69 € )	5 working days
11.71 € ( 13.93 € )	Stock item: 1 working dayAvailable for same-day shipping
14.22 € ( 16.92 € )	5 working days
15.61 € ( 18.58 € )	5 working days
31.61 € ( 37.62 € )	5 working days

More Information

Basic information

Basic information

[Features] Roller with antistatic wheel. -Conductive and stainless types are available.
