    Castors with Leveling / Antivibration / Heavy Load Type

    Castors with Leveling / Antivibration / Heavy Load Type

    Mouse over image to enlarge

    • Castors with Leveling / Antivibration / Heavy Load Type
    • Castors with Leveling / Antivibration / Heavy Load Type

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

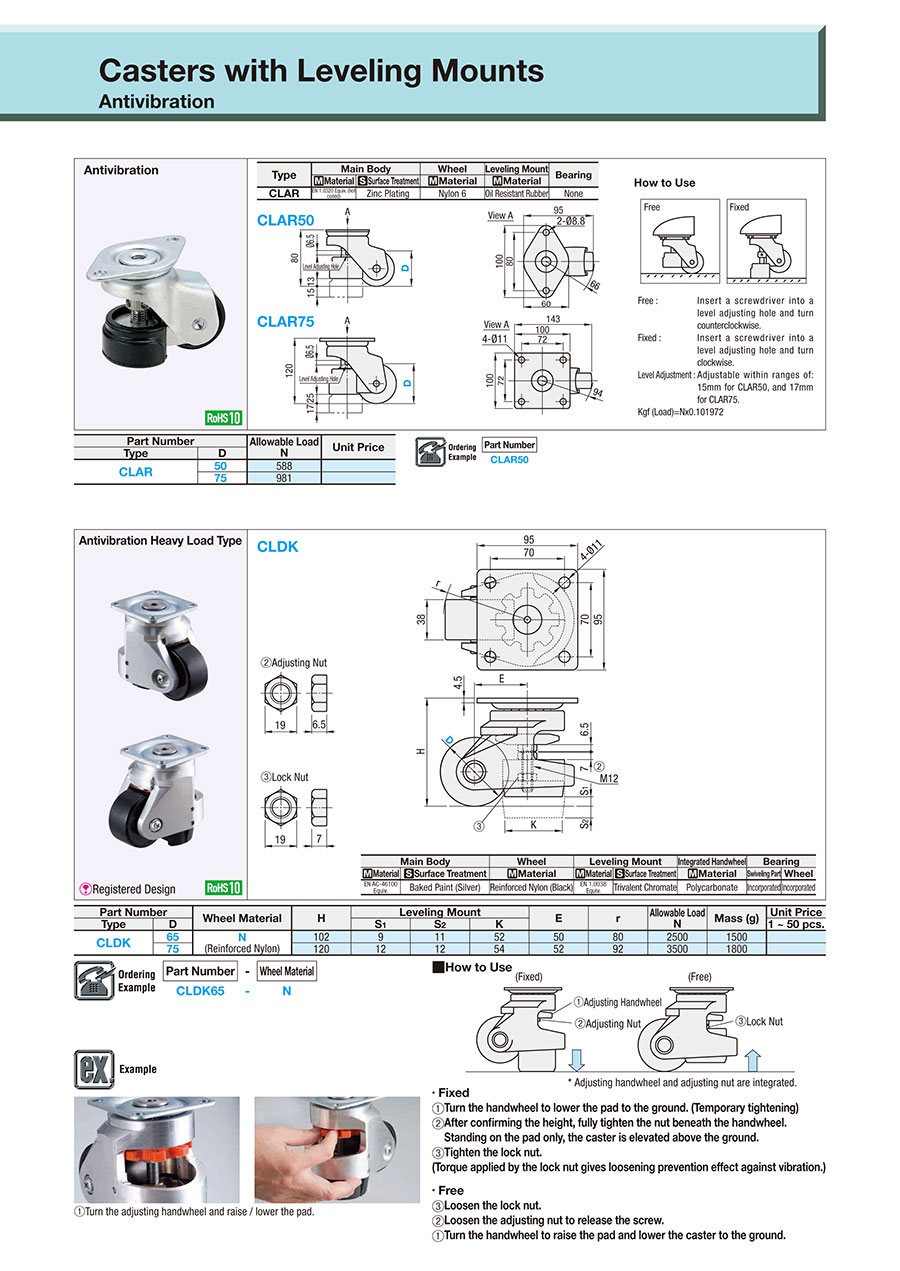

    Outline drawing and specifications table

    Casters with Leveling/Antivibration/Heavy Load Type:Related Image

    Main BodyWheelLeveling MountIntegrated HandwheelBearing
    MaterialSurface TreatmentMaterialMaterialSurface TreatmentMaterialSwiveling PartWheel
    EN AC-46100 Equiv.Baked Paint (Silver)Reinforced Nylon (Black)EN 1.0038 Equiv.Trivalent ChromatePolycarbonateIncorporatedIncorporated

    Specifications

    Part Number-Wheel Material
    CLDK65-N
    Part NumberWheel MaterialHLeveling MountErAllowable Load
    N    		Mass (g)Unit Price
    Type DS1S2K1 ~ 50 pcs.
    CLDK65N
    (Reinforced Nylon)    		10291152508025001500
    75120121254529235001800

    Part number list

    Number of items
  • 1
    • Part number
    CLDK65-N
    CLDK75-N

    [H] Mounting Height

    (mm)

    Load Range

    (daN)

    Allowable Load

    (daN)

    Mounting Hole Pitch, Longitudinal Direction

    (mm)

    Mounting Hole Pitch, Transverse Direction

    (mm)

    [D] Wheel Diameter

    (mm)

    		RoHS?Minimum order quantity
    102
    220.01 to 320.00
    250
    70
    70
    65
    10
    1 pieces
    120
    320.01 to 485.00
    350
    -
    -
    75
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    104.53 €
    ( 124.39 € )
    Stock item: 1 working dayAvailable for same-day shipping
    114.60 €
    ( 136.37 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    (1) Improved operability with a built-in resin handle (2) uses anti-vibration rubber with high vibration absorption effect (3) with lock nut to prevent loosening

    Outline and specifications

    More Information

    Casters with Leveling/Antivibration/Heavy Load Type:Related Image

    Example of Use

    Casters with Leveling/Antivibration/Heavy Load Type:Related Image
