Fastening Wire-Loop Dia. Configurable
- Promotional pricing ends 30/11/2024
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog

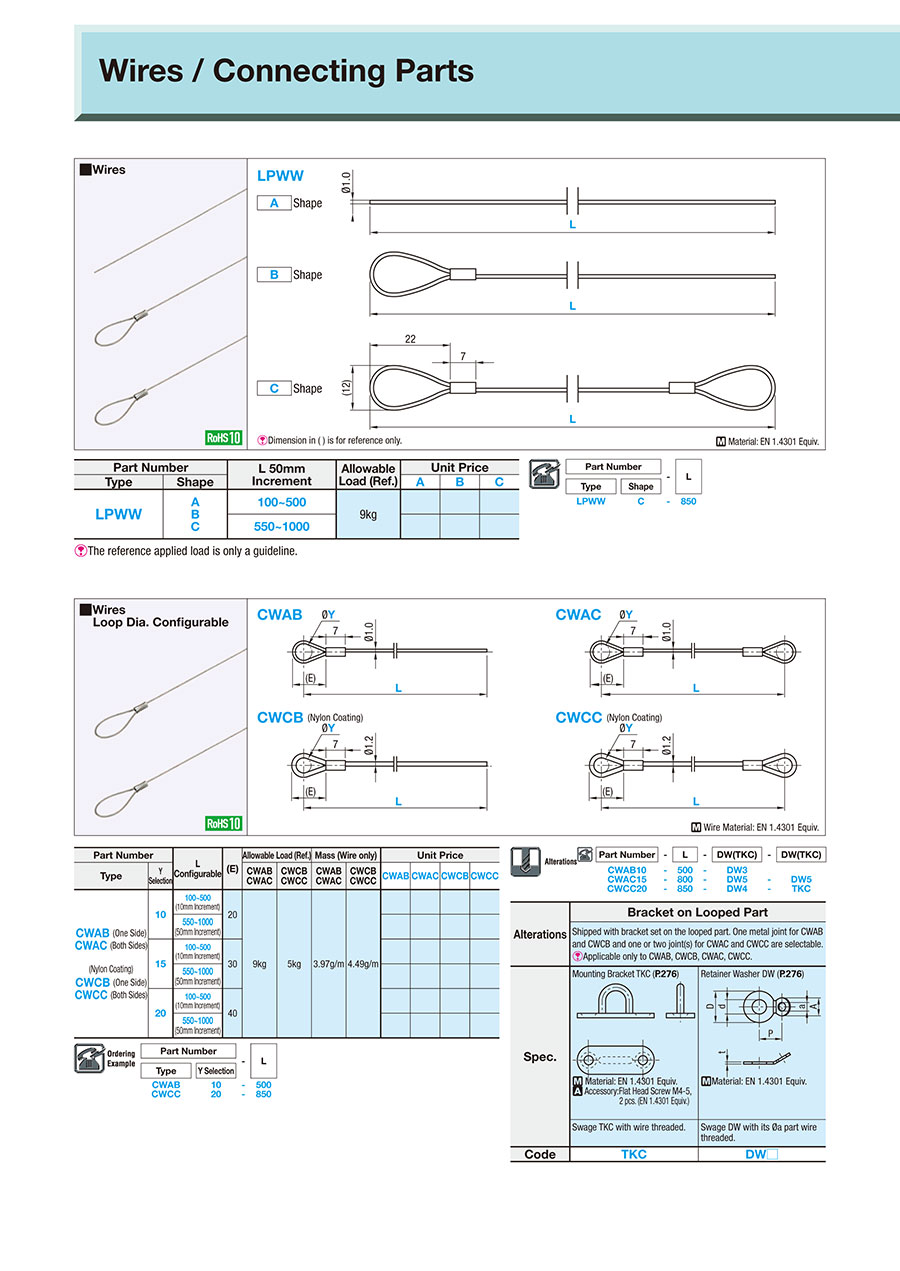

Wire Material: EN 1.4301 Equiv.
Specifications
| Part Number | - | L | ||
| Type | Y Selection | |||
| CWAB CWCC | 10 20 | - - | 500 850 | |
| Part Number | L Configurable | (E) | Allowable Load (Ref.) | Mass (Wire only) | Unit Price | ||||||
| Type | Y Selection | CWAB CWAC | CWCB CWCC | CWAB CWAC | CWCB CWCC | CWAB | CWAC | CWCB | CWCC | ||
| CWAB (One Side) CWAC (Both Sides) (Nylon Coating) CWCB (One Side) CWCC (Both Sides) | 10 | 100~500 (10mm Increment) | 20 | 9kg | 5kg | 3.97g/m | 4.49g/m | ||||
| 550~1000 (50mm Increment) | |||||||||||
| 15 | 100~500 (10mm Increment) | 30 | |||||||||
| 550~1000 (50mm Increment) | |||||||||||
| 20 | 100~500 (10mm Increment) | 40 | |||||||||
| 550~1000 (50mm Increment) | |||||||||||
Alterations
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Loop Dia. Y (mm) | Number of Loops | L (mm) | Nylon Coating | Main Body Applied Load Reference (kg) | Keyhole Washer Nominal D | Mounting Brackets | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 | 7 Days | 10 | 10 | 1 | 100 ～ 500 | Not Provided | 9 | - | Not Provided | ||
- | 1 | 7 Days | 10 | 10 | 1 | 550 ～ 1000 | Not Provided | 9 | - | Not Provided | ||
- | 1 | 7 Days | 10 | 15 | 1 | 100 ～ 500 | Not Provided | 9 | - | Not Provided | ||
- | 1 | 7 Days | 10 | 15 | 1 | 550 ～ 1000 | Not Provided | 9 | - | Not Provided | ||
- | 1 | 7 Days | 10 | 20 | 1 | 100 ～ 500 | Not Provided | 9 | - | Not Provided | ||
- | 1 | 7 Days | 10 | 20 | 1 | 550 ～ 1000 | Not Provided | 9 | - | Not Provided | ||
19.10 € | 1 | Available | 7 Days | 10 | 10 | 2 | 1000 | Not Provided | 9 | 3 | Not Provided | |
19.23 € | 1 | Available | 7 Days | 10 | 10 | 2 | 1000 | Not Provided | 9 | 4 | Not Provided | |
19.35 € | 1 | Available | 7 Days | 10 | 10 | 2 | 1000 | Not Provided | 9 | 5 | Not Provided | |
19.49 € | 1 | Available | 7 Days | 10 | 10 | 2 | 1000 | Not Provided | 9 | 6 | Not Provided | |
32.00 € | 1 | Available | 7 Days | 10 | 10 | 2 | 1000 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 100 | Not Provided | 9 | 3 | Not Provided | |
16.83 € 11.78 € | 1 | Available |
Same day
Stock | 10 | 10 | 2 | 100 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 100 | Not Provided | 9 | 5 | Not Provided | |
17.08 € 11.96 € | 1 | Available |
Same day
Stock | 10 | 10 | 2 | 100 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 100 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 110 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 110 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 110 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 110 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 110 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 120 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 120 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 120 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 120 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 120 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 130 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 130 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 130 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 130 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 130 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 140 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 140 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 140 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 140 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 140 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 150 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 150 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 150 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 150 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 150 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 160 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 160 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 160 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 160 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 160 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 170 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 170 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 170 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 170 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 170 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 180 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 180 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 180 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 180 | Not Provided | 9 | 6 | Not Provided | |
29.60 € | 1 | Available | 7 Days | 10 | 10 | 2 | 180 | Not Provided | 9 | - | Provided | |
16.70 € | 1 | Available | 7 Days | 10 | 10 | 2 | 190 | Not Provided | 9 | 3 | Not Provided | |
16.83 € | 1 | Available | 7 Days | 10 | 10 | 2 | 190 | Not Provided | 9 | 4 | Not Provided | |
16.95 € | 1 | Available | 7 Days | 10 | 10 | 2 | 190 | Not Provided | 9 | 5 | Not Provided | |
17.08 € | 1 | Available | 7 Days | 10 | 10 | 2 | 190 | Not Provided | 9 | 6 | Not Provided |
Loading...
Basic information
| Material | EN 1.4301 Equiv. |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Loop Dia. Y(mm)
- 10
- 15
- 20
-
Number of Loops
- 1
- 2
-
L(mm)
- 100
- 110
- 120
- 130
- 140
- 150
- 160
- 170
- 180
- 190
- 200
- 210
- 220
- 230
- 240
- 250
- 260
- 270
- 280
- 290
- 300
- 310
- 320
- 330
- 340
- 350
- 360
- 370
- 380
- 390
- 400
- 410
- 420
- 430
- 440
- 450
- 460
- 470
- 480
- 490
- 500
- 550
- 600
- 650
- 700
- 750
- 800
- 850
- 900
- 950
- 1000
[100-500/10mm Unit(s)][550-1000/50mm Unit(s)]
-
Nylon Coating
- Not Provided
- Provided
-
Main Body Applied Load Reference(kg)
- 5
- 9
-
Keyhole Washer Nominal D
- 3
- 4
- 5
- 6
-
Mounting Brackets
- Not Provided
- Provided
-
Type
- CWAB
- CWAC
- CWCB
- CWCC
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
