    Rubber Bumpers for Corner / D Shaped

    Rubber Bumpers for Corner / D Shaped

    Mouse over image to enlarge

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

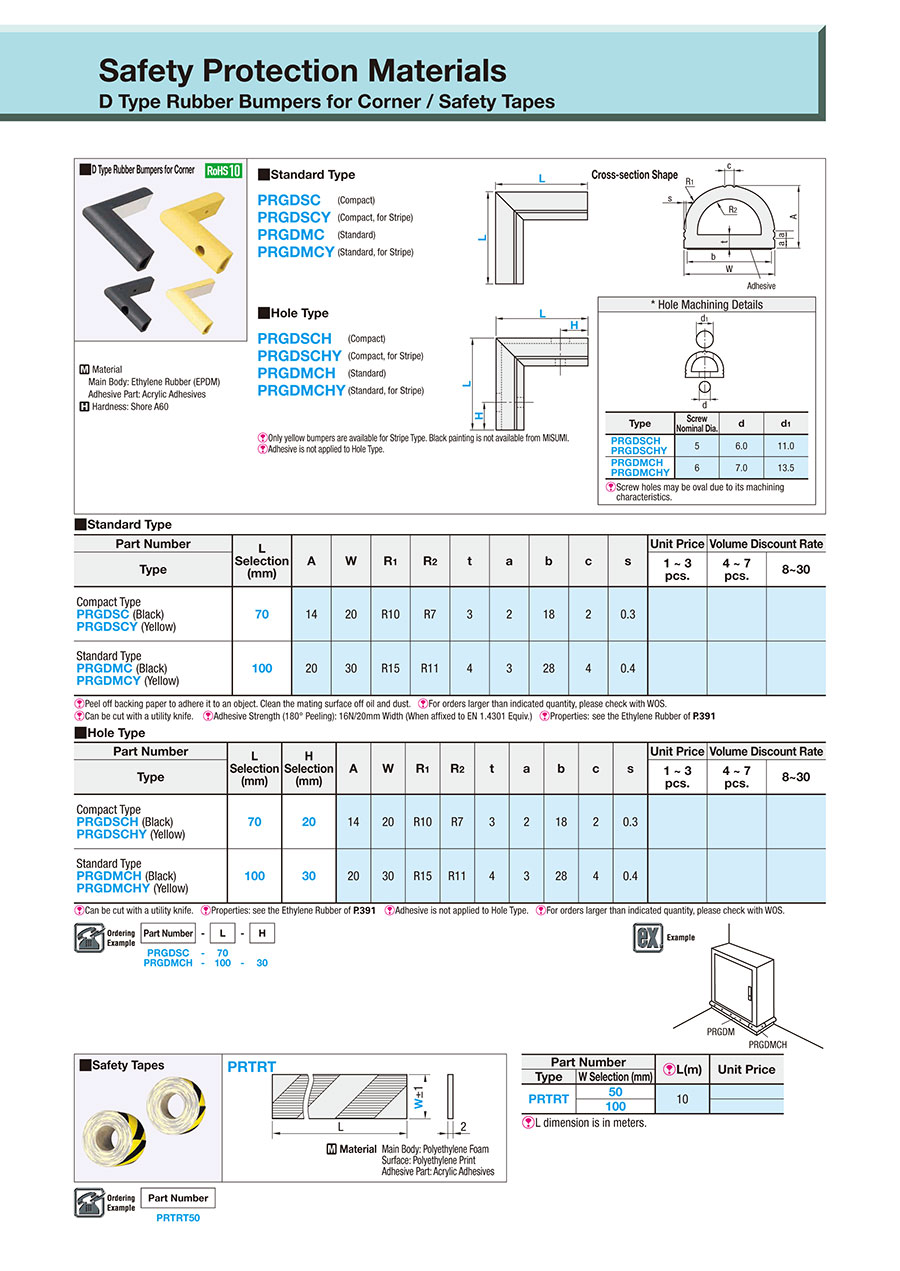

    Outline drawing and specifications table

    ■ Standard Type
    PRGDSC (Compact)
    PRGDSCY (Compact, Stripe)
    PRGDMC (Standard)
    PRGDMCY (Standard, Stripe)    		Cross-section Shape

    ■Hole Type
    PRGDSCH (Compact)
    PRGDSCHY (Compact, Stripe)
    PRGDMCH (Standard)
    PRGDMCHY (Standard, Stripe)
    * Hole Machining Details
    TypeBolt
    Nominal Dia.    		dd1
    PRGDSCH
    PRGDSCHY    		56.011.0
    PRGDMCH
    PRGDMCHY    		67.013.5

    [ ! ] Screw holes may be oval due to its machining characteristics
    .

    [!] Only yellow bumpers are available for Stripe Type. Black painting is not available from MISUMI.

    [ ! ] Adhesive is not applied to Hole Type.
    [M] Material
    Main Body: Ethylene Rubber (EPDM)
    Adhesive Part: Acrylic Adhesive
    [H]Hardness: Shore A60

    Specification Table

    Part Number—L—H
    PRGDSC
    PRGDMCH    		—
    —    		70
    100
    —
    30
    ■ Standard Type
    Part NumberL
    Selection
    (mm)    		AWR1R2tabcs
    Type
    Compact Type
    PRGDSC (Black)
    PRGDSCY (Yellow)    		701420R10R7321820.3
    Standard Type
    PRGDMC (Black)
    PRGDMCY (Yellow)    		1002030R15R11432840.4
    [!] Peel the backing paper off of the adhesive and adhere to an object. Wipe any oil and dust off of the mating surface before adhering.
    [!] Can be cut with a utility knife. [!] Adhesive Strength (180 Degree Peeling): 16 N/20 mm Wide (When adhered to EN 1.4301 Equiv.)
    ■Hole Type
    Part NumberL
    Selection
    (mm)    		H
    Selection
    (mm)    		AWR1R2tabcs
    Type
    Compact Type
    PRGDSCH (Black)
    PRGDSCHY (Yellow)    		70201420R10R7321820.3
    Standard Type
    PRGDMCH (Black)
    PRGDMCHY (Yellow)    		100302030R15R11432840.4
    [!] Can be cut with a utility knife. [!] Adhesive is not applied to Hole Type.

    Part number list

    Number of items
  • 1
    • Part number
    PRGDMC-100
    PRGDMCH-100-30
    PRGDMCHY-100-30
    PRGDMCY-100
    PRGDSC-70
    PRGDSCH-70-20
    PRGDSCHY-70-20
    PRGDSCY-70

    Color

    Type

    Length L

    (mm)

    End Face, Hole Center Dimension H

    		RoHS?Minimum order quantity
    Black
    Standard Type
    100
    -
    10
    1 pieces
    Black
    Standard, Hole Machining Type
    100
    30
    10
    1 pieces
    Yellow
    Standard, Hole Machining Type
    100
    30
    10
    1 pieces
    Yellow
    Standard Type
    100
    -
    10
    1 pieces
    Black
    Compact Type
    70
    -
    10
    1 pieces
    Black
    Compact, Hole Machining Type
    70
    20
    10
    1 pieces
    Yellow
    Compact, Hole Machining Type
    70
    20
    10
    1 pieces
    Yellow
    Compact Type
    70
    -
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    13.23 €
    ( 15.74 € )
    5 working days
    17.62 €
    ( 20.97 € )
    Stock item: 1 working dayAvailable for same-day shipping
    17.62 €
    ( 20.97 € )
    5 working days
    13.23 €
    ( 15.74 € )
    5 working days
    10.71 €
    ( 12.74 € )
    5 working days
    15.11 €
    ( 17.98 € )
    5 working days
    15.11 €
    ( 17.98 € )
    5 working days
    10.71 €
    ( 12.74 € )
    5 working days
  • 1

    • More Information

    Basic information

    For corners that are time-consuming and labour-intensive to machine. [Material]Ethylene rubber (EPDM)

    Outline and specifications

    App. Example
