Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

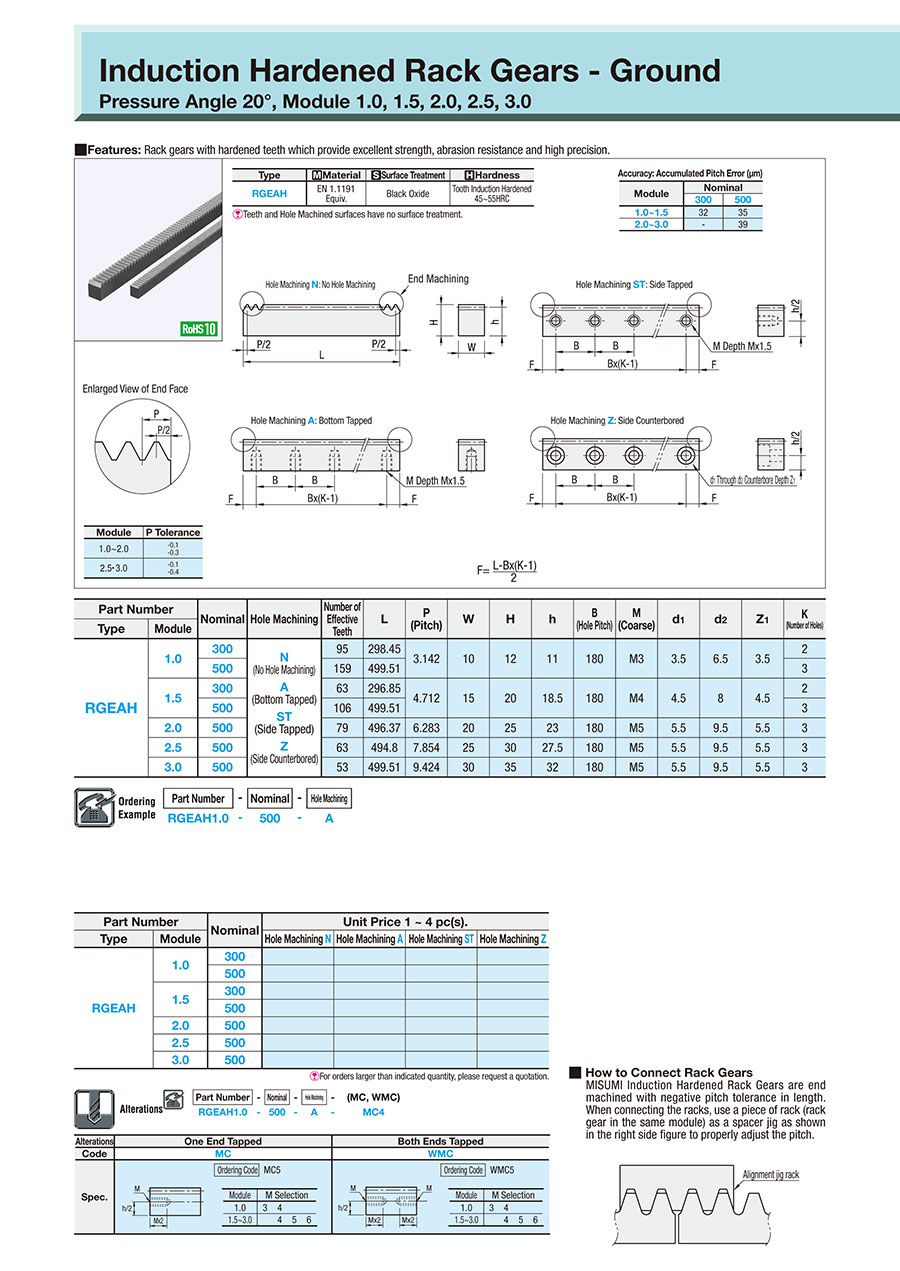

Type | Material | Surface Treatment | Hardness |
RGEAH | EN 1.1191 Equiv. | Black Oxide | Tooth Induction Hardened 45~55HRC |
Part Number | - | Nominal | - | Hole Machining |
RGEAH1.0 | - | 500 | - | A |
Part Number | Nominal | Hole Machining | Number of Effective Teeth | L | P (Pitch) | W | H | h | B (Hole Pitch) | M (Coarse) | d1 | d2 | Z1 | K (Number of Holes) | |
Type | Module | ||||||||||||||
RGEAH | 1.0 | 300 | N (No Hole Machining) A (Bottom Tapped) ST (Side Tapped) Z (Side Counterbored) | 95 | 298.45 | 3.142 | 10 | 12 | 11 | 180 | M3 | 3.5 | 6.5 | 3.5 | 2 |
500 | 159 | 499.51 | 3 | ||||||||||||
1.5 | 300 | 63 | 296.85 | 4.712 | 15 | 20 | 18.5 | 180 | M4 | 4.5 | 8 | 4.5 | 2 | ||
500 | 106 | 499.51 | 3 | ||||||||||||
2.0 | 500 | 79 | 496.37 | 6.283 | 20 | 25 | 23 | 180 | M5 | 5.5 | 9.5 | 5.5 | 3 | ||
2.5 | 500 | 63 | 494.8 | 7.854 | 25 | 30 | 27.5 | 180 | M5 | 5.5 | 9.5 | 5.5 | 3 | ||
3.0 | 500 | 53 | 499.51 | 9.424 | 30 | 35 | 32 | 180 | M5 | 5.5 | 9.5 | 5.5 | 3 |
3D preview is not available, because the part number has not yet been determined.
Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Module (M) / Circular Pitch (P) | Length L (mm) | Number of Effective Teeth (teeth) | Tooth Width W (or D) (mm) | Rack Height (mm) | Hole Machining | Tapping Alteration on End | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
86.54 € | 1 | 7 Days | 10 | 1 | 298.45 | 95 | 10 | 12 | A (Back Tapped) | No Alteration | ||
75.28 € | 1 | 5 Days | 10 | 1 | 298.45 | 95 | 10 | 12 | N (No Hole machining) | No Alteration | ||
80.35 € | 1 | 7 Days | 10 | 1 | 298.45 | 95 | 10 | 12 | N (No Hole machining) | mC (One End Tapped) | ||
85.40 € | 1 | 7 Days | 10 | 1 | 298.45 | 95 | 10 | 12 | N (No Hole machining) | WmC (Both Ends Tapped) | ||
86.54 € | 1 | 7 Days | 10 | 1 | 298.45 | 95 | 10 | 12 | ST (Side Tapped) | No Alteration | ||
92.23 € | 1 | 7 Days | 10 | 1 | 298.45 | 95 | 10 | 12 | Z (Side Counterbored) | No Alteration | ||
126.91 € | 1 | 7 Days | 10 | 1 | 499.51 | 159 | 10 | 12 | A (Back Tapped) | No Alteration | ||
115.13 € | 1 | 5 Days | 10 | 1 | 499.51 | 159 | 10 | 12 | N (No Hole machining) | No Alteration | ||
120.20 € | 1 | 7 Days | 10 | 1 | 499.51 | 159 | 10 | 12 | N (No Hole machining) | mC (One End Tapped) | ||
125.27 € | 1 | 7 Days | 10 | 1 | 499.51 | 159 | 10 | 12 | N (No Hole machining) | WmC (Both Ends Tapped) | ||
126.91 € | 1 | 7 Days | 10 | 1 | 499.51 | 159 | 10 | 12 | ST (Side Tapped) | No Alteration | ||
132.85 € | 1 | 7 Days | 10 | 1 | 499.51 | 159 | 10 | 12 | Z (Side Counterbored) | No Alteration | ||
100.34 € | 1 | 7 Days | 10 | 1.5 | 296.85 | 63 | 15 | 20 | A (Back Tapped) | No Alteration | ||
88.57 € | 1 | 5 Days | 10 | 1.5 | 296.85 | 63 | 15 | 20 | N (No Hole machining) | No Alteration | ||
93.63 € | 1 | 7 Days | 10 | 1.5 | 296.85 | 63 | 15 | 20 | N (No Hole machining) | mC (One End Tapped) | ||
98.68 € | 1 | 7 Days | 10 | 1.5 | 296.85 | 63 | 15 | 20 | N (No Hole machining) | WmC (Both Ends Tapped) | ||
100.34 € | 1 | 7 Days | 10 | 1.5 | 296.85 | 63 | 15 | 20 | ST (Side Tapped) | No Alteration | ||
106.28 € | 1 | 7 Days | 10 | 1.5 | 296.85 | 63 | 15 | 20 | Z (Side Counterbored) | No Alteration | ||
153.85 € | 1 | 7 Days | 10 | 1.5 | 499.51 | 106 | 15 | 20 | A (Back Tapped) | No Alteration | ||
141.71 € | 1 | 5 Days | 10 | 1.5 | 499.51 | 106 | 15 | 20 | N (No Hole machining) | No Alteration | ||
146.78 € | 1 | 7 Days | 10 | 1.5 | 499.51 | 106 | 15 | 20 | N (No Hole machining) | mC (One End Tapped) | ||
151.83 € | 1 | 7 Days | 10 | 1.5 | 499.51 | 106 | 15 | 20 | N (No Hole machining) | WmC (Both Ends Tapped) | ||
153.85 € | 1 | 7 Days | 10 | 1.5 | 499.51 | 106 | 15 | 20 | ST (Side Tapped) | No Alteration | ||
160.19 € | 1 | 7 Days | 10 | 1.5 | 499.51 | 106 | 15 | 20 | Z (Side Counterbored) | No Alteration | ||
173.09 € | 1 | 7 Days | 10 | 2 | 496.37 | 79 | 20 | 25 | A (Back Tapped) | No Alteration | ||
159.43 € | 1 | 5 Days | 10 | 2 | 496.37 | 79 | 20 | 25 | N (No Hole machining) | No Alteration | ||
164.48 € | 1 | 7 Days | 10 | 2 | 496.37 | 79 | 20 | 25 | N (No Hole machining) | mC (One End Tapped) | ||
169.54 € | 1 | 7 Days | 10 | 2 | 496.37 | 79 | 20 | 25 | N (No Hole machining) | WmC (Both Ends Tapped) | ||
173.09 € | 1 | 7 Days | 10 | 2 | 496.37 | 79 | 20 | 25 | ST (Side Tapped) | No Alteration | ||
180.68 € | 1 | 7 Days | 10 | 2 | 496.37 | 79 | 20 | 25 | Z (Side Counterbored) | No Alteration | ||
181.94 € | 1 | 7 Days | 10 | 2.5 | 494.8 | 63 | 25 | 30 | A (Back Tapped) | No Alteration | ||
168.28 € | 1 |
Same day
Stock | 10 | 2.5 | 494.8 | 63 | 25 | 30 | N (No Hole machining) | No Alteration | ||
173.34 € | 1 | 7 Days | 10 | 2.5 | 494.8 | 63 | 25 | 30 | N (No Hole machining) | mC (One End Tapped) | ||
178.40 € | 1 | 7 Days | 10 | 2.5 | 494.8 | 63 | 25 | 30 | N (No Hole machining) | WmC (Both Ends Tapped) | ||
181.94 € | 1 | 7 Days | 10 | 2.5 | 494.8 | 63 | 25 | 30 | ST (Side Tapped) | No Alteration | ||
189.54 € | 1 | 7 Days | 10 | 2.5 | 494.8 | 63 | 25 | 30 | Z (Side Counterbored) | No Alteration | ||
200.92 € | 1 | 7 Days | 10 | 3 | 499.51 | 53 | 30 | 35 | A (Back Tapped) | No Alteration | ||
187.25 € | 1 | 5 Days | 10 | 3 | 499.51 | 53 | 30 | 35 | N (No Hole machining) | No Alteration | ||
208.77 € | 1 | 7 Days | 10 | 3 | 499.51 | 53 | 30 | 35 | N (No Hole machining) | mC (One End Tapped) | ||
213.84 € | 1 | 7 Days | 10 | 3 | 499.51 | 53 | 30 | 35 | N (No Hole machining) | WmC (Both Ends Tapped) | ||
200.92 € | 1 | 7 Days | 10 | 3 | 499.51 | 53 | 30 | 35 | ST (Side Tapped) | No Alteration | ||
208.51 € | 1 | 7 Days | 10 | 3 | 499.51 | 53 | 30 | 35 | Z (Side Counterbored) | No Alteration |
Loading...
Tooth Type | Standard | Shape | Rack Gears | Heat Treatment | High Frequency |
---|---|---|---|---|---|
Ground Tooth | Provided | Surface Treatment | Black Oxide | End Face Machining | Both Ends Machined Type |
Configure
Stock
Basic Attributes
Module (M) / Circular Pitch (P)
Length L(mm)
Number of Effective Teeth(teeth)
Tooth Width W (or D)(mm)
Hole Machining
Tapping Alteration on End
Type
Filter by CAD data type
Filter by standard shipping days
Optional Attributes
