Configure

Roller Type
- Urethane / Rubber Rollers
- Metal Rollers
Urethane Rubber Processing
- Lining
Metal part outer diameter D(mm)
The outer diameter of the urethane baked product is D + 2T.
- 18
- 28
- 38
- 48
I.D. d(mm)
- 8
- 10
- 15
- 20
- 25
- 30
Urethane/Rubber Hardness
- 50
- 70
- 90
Urethane/Rubber Material
- Urethane
Urethane/Rubber Color
- Natural Color
Urethane Thickness T
- 3
- 5
L
[100-500/50]
L(mm)
[100-500/50mm units]
L Dimension Change (Configurable in 1mm Increment) [LC]
[50-499/1]
Type
CAD
- 2D
- 3D

Economy Hollow Rollers with Bearing

Click image to view enlarged image

CatalogP.1-1137

Part number:

Still undefined. 126 possible part numbers found.

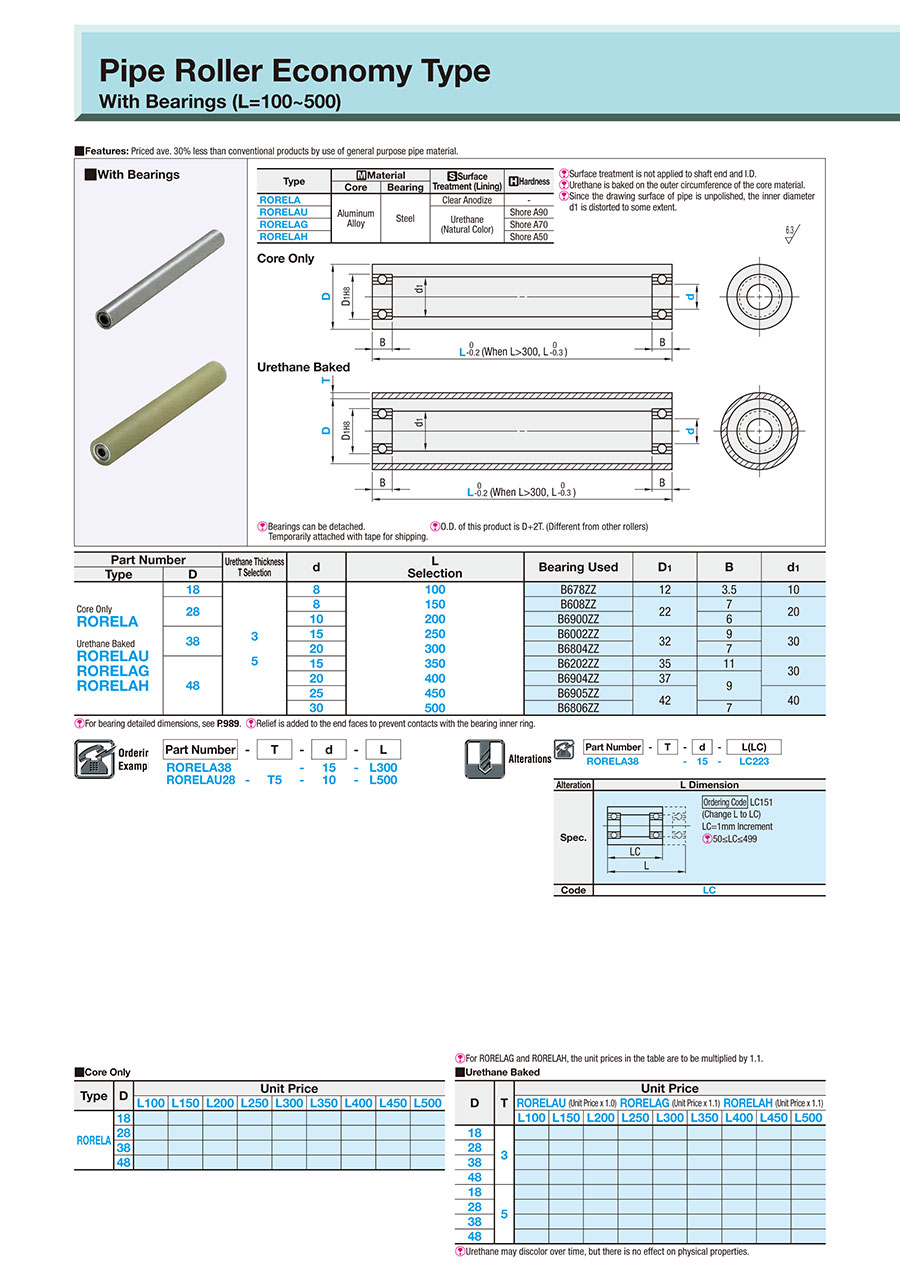

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Economy Hollow Rollers with Bearing:Related Image

Type	Material		Surface Treatment (Lining)	Hardness
	Core	Bearing
RORELA	Aluminum Alloy	Steel	Clear Anodize	-
RORELAU			Urethane (Natural Color)	Shore A90
RORELAG				Shore A70
RORELAH				Shore A50

Surface treatment is not applied to shaft end and I.D.
Urethane is baked on the outer circumference of the core material.
Since the drawing surface of pipe is unpolished, the inner diameter d1 is distorted to some extent.

Part Number		Urethane Thickness T Selection	d	L Selection	Bearing Used	D₁	B	d₁
Type	D
Core Only RORELA Urethane Baked RORELAU RORELAG RORELAH	18	3 5	8	100 150 200 250 300 350 400 450 500	B678ZZ	12	3.5	10
	28		8		B608ZZ	22	7	20
			10		B6900ZZ		6
	38		15		B6002ZZ	32	9	30
			20		B6804ZZ		7
	48		15		B6202ZZ	35	11	30
			20		B6904ZZ	37	9
			25		B6905ZZ	42		40
			30		B6806ZZ		7

Metal Rollers	-	18	8	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	18	8	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Metal Rollers	-	28	8	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	28	8	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Metal Rollers	-	28	10	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	28	10	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Metal Rollers	-	38	15	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	38	15	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Metal Rollers	-	38	20	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	38	20	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Metal Rollers	-	48	15	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	48	15	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Metal Rollers	-	48	20	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	48	20	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Metal Rollers	-	48	25	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	48	25	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Metal Rollers	-	48	30	-	-	-	-	100 ～ 500	-	-	10	1 pieces
Metal Rollers	-	48	30	-	-	-	-	-	-	50 ～ 499	10	1 pieces
Urethane / Rubber Rollers	Lining	18	8	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	18	8	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	18	8	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	18	8	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	8	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	8	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	10	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	10	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	8	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	8	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	10	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	10	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	38	15	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	38	15	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	38	20	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	38	20	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	38	15	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	38	15	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	38	20	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	38	20	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	15	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	15	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	20	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	20	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	25	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	25	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	30	70	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	30	70	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	15	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	15	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	20	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	20	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	25	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	25	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	30	70	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	48	30	70	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	18	8	50	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	18	8	50	Urethane	Natural Color	3	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	18	8	50	Urethane	Natural Color	5	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	18	8	50	Urethane	Natural Color	5	-	-	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	8	50	Urethane	Natural Color	3	-	100 ～ 500	-	10	1 pieces
Urethane / Rubber Rollers	Lining	28	8	50	Urethane	Natural Color	3	-	-	-	10	1 pieces

- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	11 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days
- ( - )	12 working days

Part Number	-	T	-	d	-	L
RORELA38 RORELAU28	-	T5	- -	15 10	- -	L300 L500

Economy Hollow Rollers with Bearing

Outline drawing and specifications table

Specifications

Alterations

Part number list

More Information

Catalog
