Miniature Roller Chutes
Click image to view enlarged image
Part number:

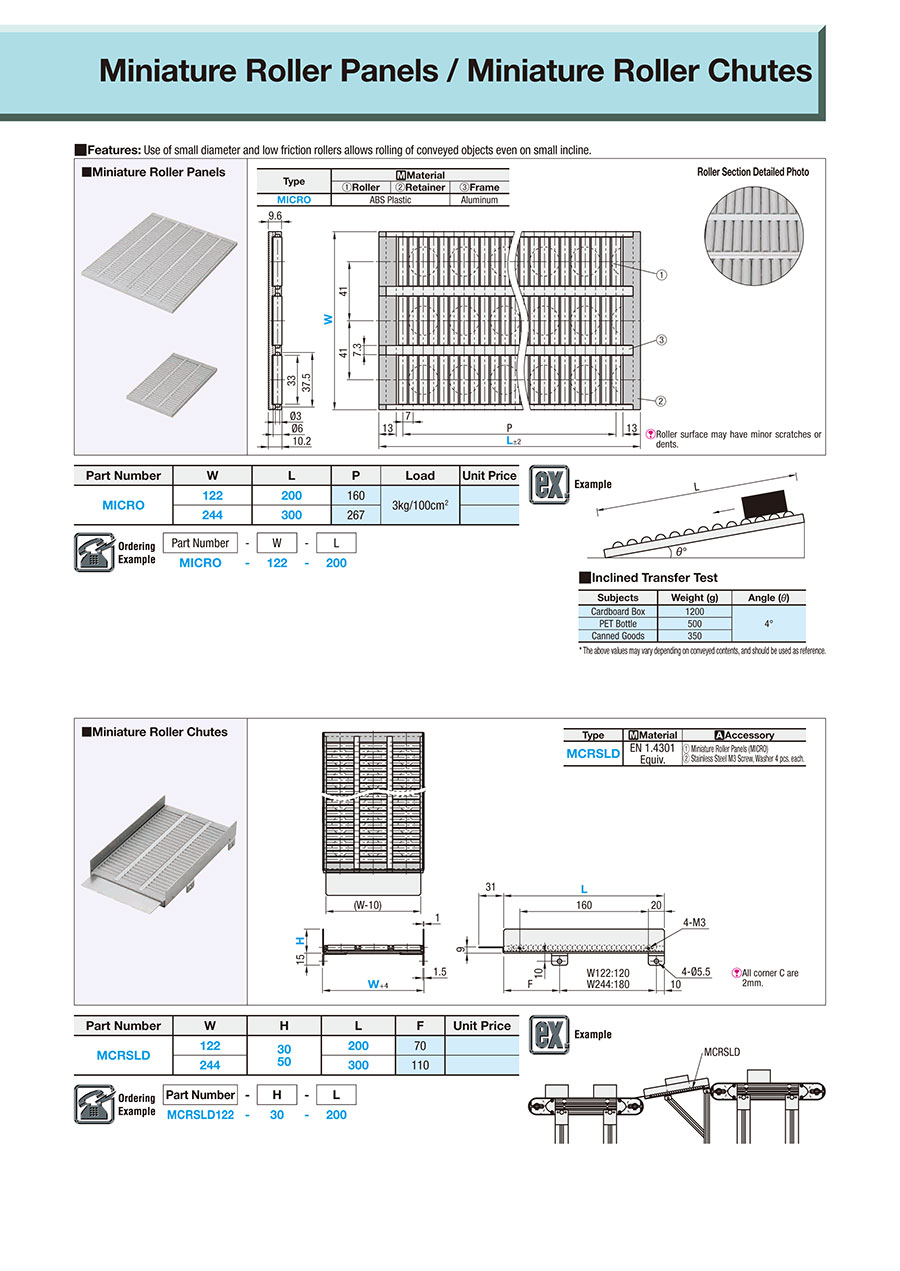

possible part numbers found.Outline drawing and specifications table
[ ! ] All corner C are 2 mm.
| Type | [M] Material | [A] Accessory |
| MCRSLD | EN 1.4301 Equiv. | (1) Miniature Roller Panels (MICRO) (2) Stainless Steel M3 Screw, Washer 4 pcs. each. |
Specification Table
| Part Number | — | H | — | L |
| MCRSLD122 | — | 30 | — | 200 |
| Part Number | W | H | L | F |
| MCRSLD | 122 | 30 50 | 200 | 70 |
| 244 | 300 | 110 |
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
74.30 € ( 88.42 € ) | 11 working days |
74.30 € ( 88.42 € ) | 11 working days |
112.08 € ( 133.38 € ) | 11 working days |
112.08 € ( 133.38 € ) | 11 working days |
More Information
Basic information
[Features] This is a miniature roller chute. -It is used for easy transportation of small accessories. The material of the roller is ABS resin.
Outline and specifications
App. Example
