Connecting Parts for Temperature Sensors / Plugs / Mounting Holders

Connecting Parts for Temperature Sensors / Plugs / Mounting Holders

Mouse over image to enlarge

  • Connecting Parts for Temperature Sensors / Plugs / Mounting Holders
  • Connecting Parts for Temperature Sensors / Plugs / Mounting Holders
  • Connecting Parts for Temperature Sensors / Plugs / Mounting Holders

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

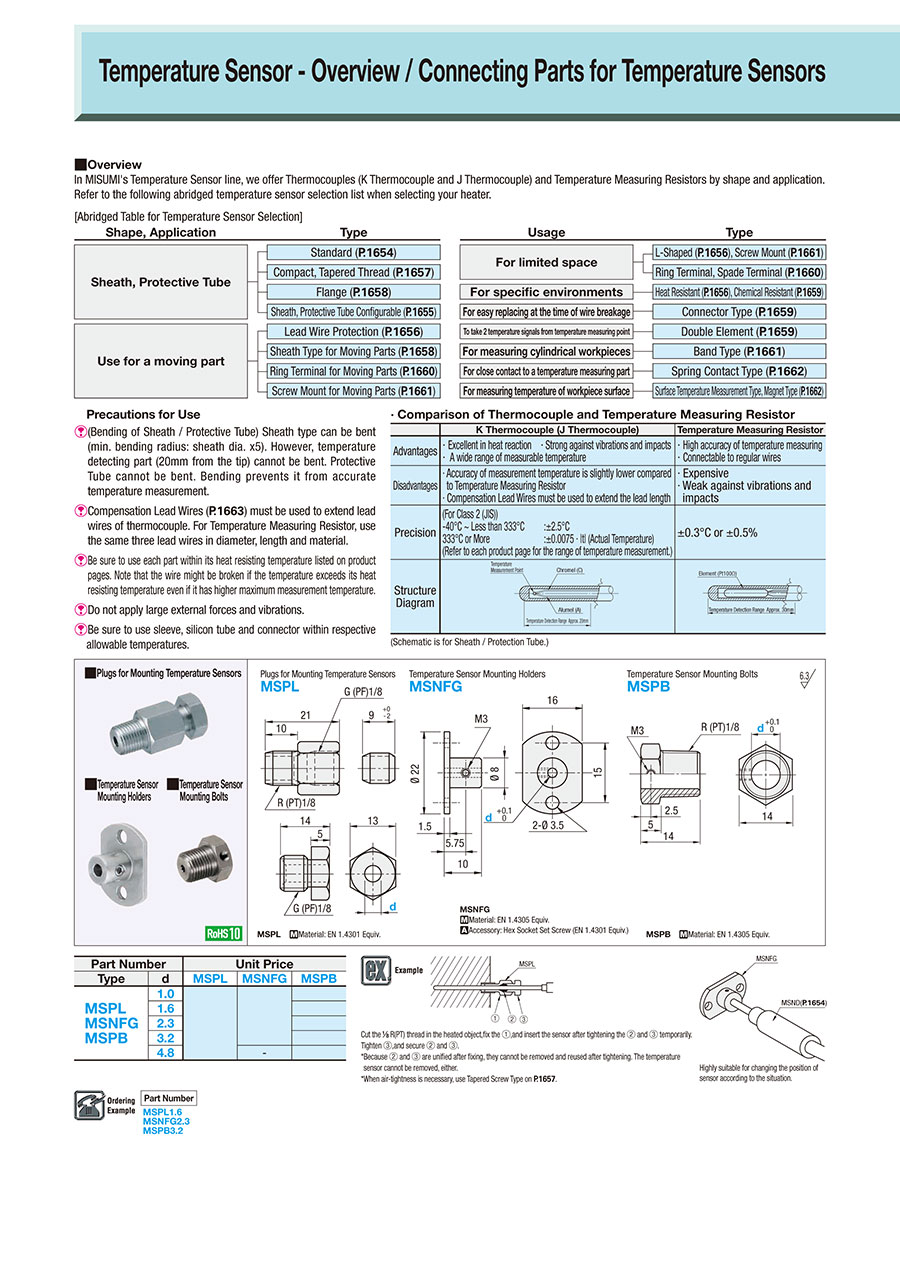

Outline drawing and specifications table

Plugs for Mounting
Temperature Sensors

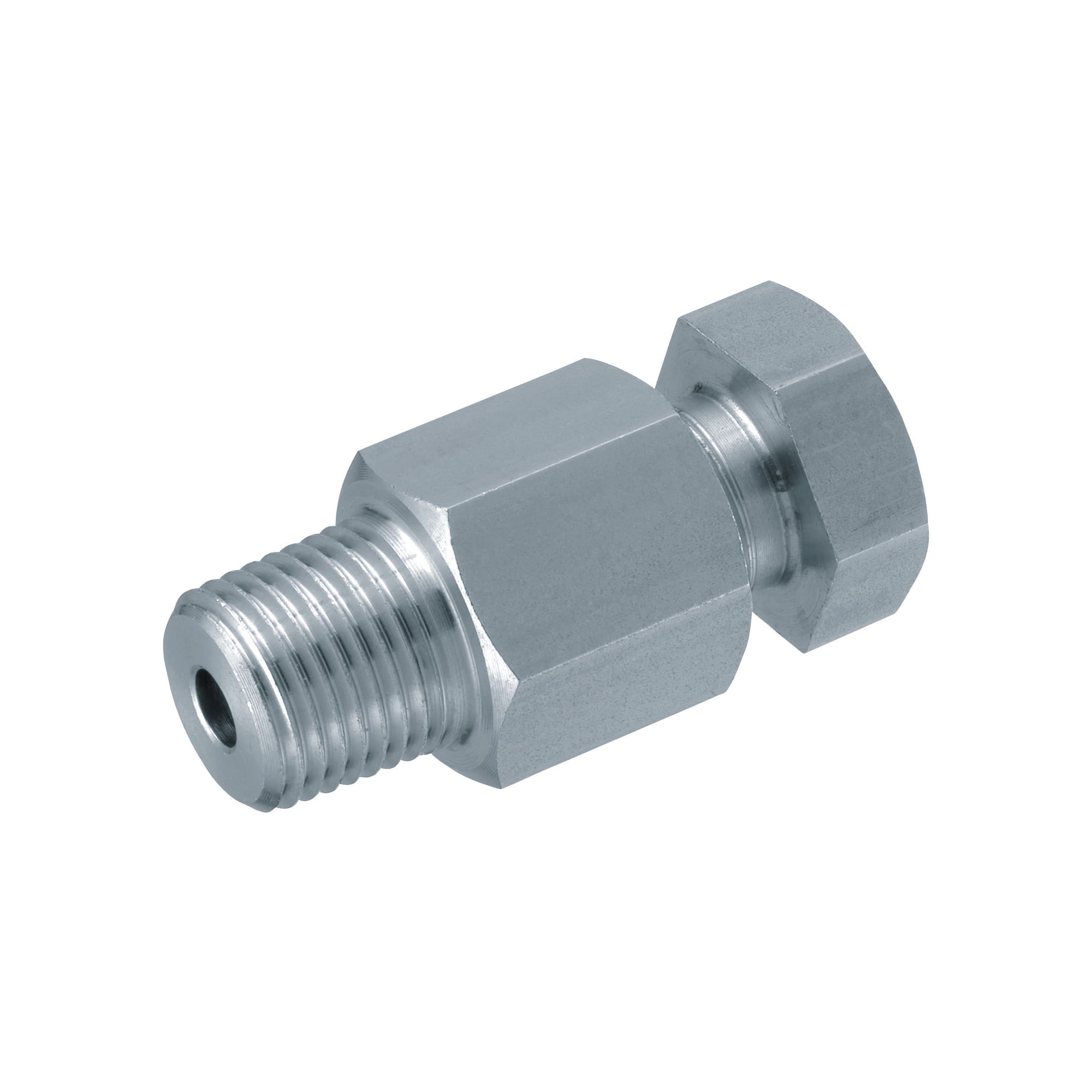

MSPL Temperature Sensor Mounting
Holders
MSNFG Temperature Sensor Mounting
Bolts
MSPB



Connecting Parts for Temperature Sensors: Related Image
MSNFG　
[M]Material: EN 1.4305 Equiv.
[A]Accessory: Hex Socket Set Screw (EN 1.4301 Equiv.)
MSPL [M] Material: EN 1.4301 Equiv.
MSPB [M] Material: EN 1.4305 Equiv.

Specification Table

Part Number
MSPL1.6
MSNFG2.3
MSPB3.2
Part Number
Typed
MSPL
MSNFG
MSPB		1.0 
1.6 
2.3 
3.2 
4.8 

Part number list

Number of items
  • 1
    • Part number
    MSNFG1.0
    MSNFG1.6
    MSNFG2.3
    MSNFG3.2
    MSPB1.0
    MSPB1.6
    MSPB2.3
    MSPB3.2
    MSPB4.8
    MSPL1.0
    MSPL1.6
    MSPL2.3
    MSPL3.2
    MSPL4.8

    Body Material

    Thread Size

    I.D. d

    (φ)

    Parts Type

    		RoHS?Minimum order quantity
    EN 1.4305 Equiv.
    -
    1.0
    Mounting Holder
    10
    1 pieces
    EN 1.4305 Equiv.
    -
    1.6
    Mounting Holder
    10
    1 pieces
    EN 1.4305 Equiv.
    -
    2.3
    Mounting Holder
    10
    1 pieces
    EN 1.4305 Equiv.
    -
    3.2
    Mounting Holder
    10
    1 pieces
    EN 1.4305 Equiv.
    R1/8
    1.0
    Mounting Screw
    10
    1 pieces
    EN 1.4305 Equiv.
    R1/8
    1.6
    Mounting Screw
    10
    1 pieces
    EN 1.4305 Equiv.
    R1/8
    2.3
    Mounting Screw
    10
    1 pieces
    EN 1.4305 Equiv.
    R1/8
    3.2
    Mounting Screw
    10
    1 pieces
    EN 1.4305 Equiv.
    R1/8
    4.8
    Mounting Screw
    10
    1 pieces
    EN 1.4301 Equiv.
    R1/8
    1.0
    Mounting Plugs
    10
    1 pieces
    EN 1.4301 Equiv.
    R1/8
    1.6
    Mounting Plugs
    10
    1 pieces
    EN 1.4301 Equiv.
    R1/8
    2.3
    Mounting Plugs
    10
    1 pieces
    EN 1.4301 Equiv.
    R1/8
    3.2
    Mounting Plugs
    10
    1 pieces
    EN 1.4301 Equiv.
    R1/8
    4.8
    Mounting Plugs
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.06 €
    ( 10.78 € )
    5 working days
    9.06 €
    ( 10.78 € )
    5 working days
    9.06 €
    ( 10.78 € )
    5 working days
    9.06 €
    ( 10.78 € )
    5 working days
    13.85 €
    ( 16.48 € )
    5 working days
    13.35 €
    ( 15.89 € )
    5 working days
    12.84 €
    ( 15.28 € )
    5 working days
    12.08 €
    ( 14.38 € )
    5 working days
    11.58 €
    ( 13.78 € )
    5 working days
    16.87 €
    ( 20.08 € )
    5 working days
    16.87 €
    ( 20.08 € )
    5 working days
    16.87 €
    ( 20.08 € )
    5 working days
    16.87 €
    ( 20.08 € )
    5 working days
    16.87 €
    ( 20.08 € )
    5 working days
  • 1

    • More Information

    Basic information

    Mounting parts for temperature sensors. You can choose between plugs, holders and bolts.

    Technical information

    Outline and specifications

    App. Example

    Connecting Parts for Temperature Sensors: Related Image
    Tap on R (PT) 1/8 of the heated object, fix (1), temporarily fasten (2) and (3), then insert the sensor.
    Tighten (3), and secure (2) and (3).
    * Because (2) and (3) are unified after fixing, they cannot be removed and reused after tightening.
    　Also, the temperature sensor cannot be removed.
    * When air-tightness is necessary, use Tapered Screw Type.
    Connecting Parts for Temperature Sensors: Related Image
    Suitable for changing the position of the temperature sensor depending on the situation.
