Ball screw nut mountings / pitch / steel, aluminium / coating selectable

Part number:

Still undefined. 172 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Back to the Category Ball Screws

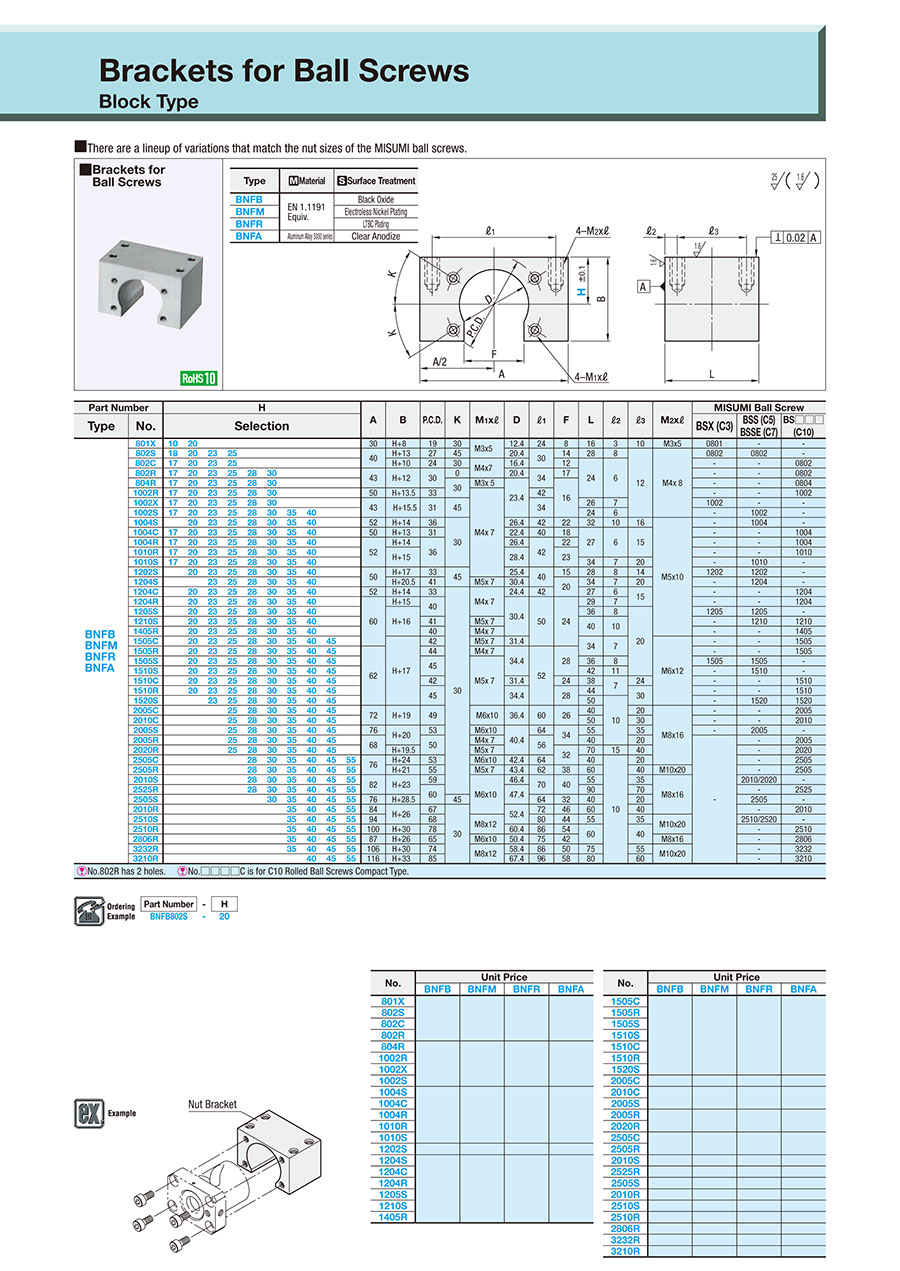

Technical Drawing - Ball Screws

Ball Screw Nut Brackets/Block Style/Standard:Related Image

Open the technical drawing in the new window

Available dimensions and tolerances can be found under the tab More information.

Basic Properties (e.g., material, hardness, coating, tolerance) - Ball Screws

Type	Material	Surface Treatment
BNFB	EN 1.1191 Equiv.	Black Oxide
BNFM		Electroless Nickel Plating
BNFR		LTBC Plating
BNFA	Aluminum Alloy 5000 series	Clear Anodize

Further specifications can be found under the tab More information.

Composition of a Product Code - Ball Screws

Part Number	-	H
BNFB802S	-	20

Part number list

Number of items

Part number

BNFA1002R-[17,20,23,25,28,30,35,40]

BNFA1002S-[17,20,23,25,28,30,35,40]

BNFA1002X-[17,20,23,25,28,30,35,40]

BNFA1004C-[17,20,23,25,28,30,35,40]

BNFA1004R-[17,20,23,25,28,30,35,40]

BNFA1004S-[20,23,25,28,30,35,40]

BNFA1010R-[17,20,23,25,28,30,35,40]

BNFA1010S-[17,20,23,25,28,30,35,40]

BNFA1202S-[20,23,25,28,30,35,40]

BNFA1204C-[20,23,25,28,30,35,40]

BNFA1204R-[20,23,25,28,30,35,40]

BNFA1204S-[23,25,28,30,35,40]

BNFA1205S-[20,23,25,28,30,35,40]

BNFA1210S-[20,23,25,28,30,35,40]

BNFA1405R-[20,23,25,28,30,35,40]

BNFA1505C-[20,23,25,28,30,35,40,45]

BNFA1505R-[20,23,25,28,30,35,40,45]

BNFA1505S-[20,23,25,28,30,35,40,45]

BNFA1510C-[20,23,25,28,30,35,40,45]

BNFA1510R-[20,23,25,28,30,35,40,45]

BNFA1510S-[20,23,25,28,30,35,40,45]

BNFA1520S-[23,25,28,30,35,40,45]

BNFA2005C-[25,28,30,35,40,45]

BNFA2005R-[25,28,30,35,40,45]

BNFA2005S-[25,28,30,35,40,45]

BNFA2010C-[25,28,30,35,40,45]

BNFA2010R-[32,35,40,45,55]

BNFA2010S-[28,30,35,40,45,55]

BNFA2020R-[25,28,30,35,40,45]

BNFA2505C-[28,30,35,40,45,55]

BNFA2505R-[28,30,35,40,45,55]

BNFA2505S-[30,35,40,45,55]

BNFA2510R-[35,40,45,55]

BNFA2510S-[32,35,40,45,55]

BNFA2525R-[28,30,35,40,45,55]

BNFA2806R-[32,35,40,45,55]

BNFA3210R-[40,45,55]

BNFA3232R-[35,40,45,55]

BNFA801X-[10,20]

BNFA802C-[17,20,23,25]

BNFA802R-[17,20,23,25,28,30,35,40]

BNFA802S-[18,20,23,25,28,30,35,40]

BNFA804R-[17,20,23,25,28,30,35,40]

BNFB1002R-[17,20,23,25,28,30,35,40]

BNFB1002S-[17,20,23,25,28,30,35,40]

BNFB1002X-[17,20,23,25,28,30,35,40]

BNFB1004C-[17,20,23,25,28,30,35,40]

BNFB1004R-[17,20,23,25,28,30,35,40]

BNFB1004S-[20,23,25,28,30,35,40]

BNFB1010R-[17,20,23,25,28,30,35,40]

BNFB1010S-[17,20,23,25,28,30,35,40]

BNFB1202S-[20,23,25,28,30,35,40]

BNFB1204C-[20,23,25,28,30,35,40]

BNFB1204R-[20,23,25,28,30,35,40]

BNFB1204S-[23,25,28,30,35,40]

BNFB1205S-[20,23,25,28,30,35,40]

BNFB1210S-[20,23,25,28,30,35,40]

BNFB1405R-[20,23,25,28,30,35,40]

BNFB1505C-[20,23,25,28,30,35,40,45]

BNFB1505R-[20,23,25,28,30,35,40,45]

Material

Surface Treatment

No.

Misumi Applicable Ball Screw Shaft Dia.

Nut Size

(mm)

RoHS?

Minimum order quantity

Aluminum Alloy 5000 series	Anodize (Clear)	1002R	10	Standard	17 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1002S	10	Standard	17 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1002X	10	Standard	17 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1004C	10	Standard	17 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1004R	10	Standard	17 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1004S	10	Standard	20 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1010R	10	Standard	17 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1010S	10	Standard	17 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1202S	12	Standard	20 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1204C	12	Standard	20 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1204R	12	Standard	20 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1204S	12	Standard	23 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1205S	12	Standard	20 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1210S	12	Standard	20 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1405R	14	Standard	20 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1505C	15	Standard	20 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1505R	15	Standard	20 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1505S	15	Standard	20 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1510C	15	Standard	20 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1510R	15	Standard	20 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1510S	15	Standard	20 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	1520S	15	Standard	23 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2005C	20	Standard	25 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2005R	20	Standard	25 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2005S	20	Standard	25 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2010C	20	Standard	25 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2010R	20	Standard	32 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2010S	20	Standard	28 ～ 55	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2020R	20	Standard	25 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2505C	25	Standard	28 ～ 55	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2505R	25	Standard	28 ～ 55	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2505S	25	Standard	30 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2510R	25	Standard	35 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2510S	25	Standard	32 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2525R	25	Standard	28 ～ 55	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	2806R	28	Standard	32 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	3210R	32	Standard	40 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	3232R	32	Standard	35 ～ 45	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	801X	8	Standard	10 ～ 20	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	802C	8	Standard	17 ～ 25	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	802R	8	Standard	17 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	802S	8	Standard	18 ～ 40	10	1 pieces
Aluminum Alloy 5000 series	Anodize (Clear)	804R	8	Standard	17 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1002R	10	Standard	17 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1002S	10	Standard	17 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1002X	10	Standard	17 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1004C	10	Standard	17 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1004R	10	Standard	17 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1004S	10	Standard	20 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1010R	10	Standard	17 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1010S	10	Standard	17 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1202S	12	Standard	20 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1204C	12	Standard	20 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1204R	12	Standard	20 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1204S	12	Standard	23 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1205S	12	Standard	20 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1210S	12	Standard	20 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1405R	14	Standard	20 ～ 40	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1505C	15	Standard	20 ～ 45	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	1505R	15	Standard	20 ～ 45	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days
- ( - )	16 working days

Basic information
Outline and specifications

Basic information

BNFA,BNFB,BNFM,BNFR

Technical information

Outline and specifications

Back to the Category Ball Screws

Technical Drawing - Ball Screws

Open the technical drawing in the new window

Specification Table - Ball Screws

Part Number		H										A	B	P.C.D.	K	M₁xℓ	D	ℓ₁	F	L	ℓ₂	ℓ₃	M₂xℓ	MISUMI Ball Screw
Type	No.	Selection										A	B	P.C.D.	K	M₁xℓ	D	ℓ₁	F	L	ℓ₂	ℓ₃	M₂xℓ	BSX (C3)	BSS (C5)BSSE (C7)	BS□□□ (C10)
BNFB BNFM BNFR BNFA	801X	10	20									30	H+8	19	30	M3x5	12.4	24	8	16	3	10	M3x5	0801	-	-
	802S	18	20	23	25							40	H+13	27	45	M3x5	20.4	30	14	28	8	12	M4x 8	0802	0802	-
	802C	17	20	23	25							40	H+10	24	30	M4x7	16.4	30	12	24	6			-	-	0802
	802R	17	20	23	25	28	30					43	H+12	30	0	M4x7	20.4	34	17					-	-	0802
	804R	17	20	23	25	28	30					43	H+12	30	30	M3x 5	23.4	34	16					-	-	0804
	1002R	17	20	23	25	28	30					50	H+13.5	33	30	M4x 7		42						-	-	1002
	1002X	17	20	23	25	28	30					43	H+15.5	31	45			34		26	7			1002	-	-
	1002S	17	20	23	25	28	30	35	40			43	H+15.5	31	45			34		24	6			-	1002	-
	1004S		20	23	25	28	30	35	40			52	H+14	36	30		26.4	42	22	32	10	16	M5x10	-	1004	-
	1004C	17	20	23	25	28	30	35	40			50	H+13	31			22.4	40	18	27	6	15		-	-	1004
	1004R	17	20	23	25	28	30	35	40			52	H+14	36			26.4	42	22					-	-	1004
	1010R	17	20	23	25	28	30	35	40				H+15				28.4		23					-	-	1010
	1010S	17	20	23	25	28	30	35	40				H+15				28.4		23	34	7	20		-	1010	-
	1202S		20	23	25	28	30	35	40			50	H+17	33	45		25.4	40	15	28	8	14		1202	1202	-
	1204S			23	25	28	30	35	40			50	H+20.5	41	45	M5x 7	30.4	40	20	34	7	20		-	1204	-
	1204C		20	23	25	28	30	35	40			52	H+14	33	30	M4x 7	24.4	42	20	27	6	15		-	-	1204
	1204R		20	23	25	28	30	35	40			60	H+15	40			30.4	50	24	29	7	15		-	-	1204
	1205S		20	23	25	28	30	35	40				H+16	40						36	8	20		1205	1205	-
	1210S		20	23	25	28	30	35	40					41		M5x 7				40	10			-	1210	1210
	1405R		20	23	25	28	30	35	40					40		M4x 7				40	10			-	-	1405
	1505C		20	23	25	28	30	35	40	45			H+17	42		M5x 7	31.4			34	7		M6x12	-	-	1505
	1505R		20	23	25	28	30	35	40	45		62		44		M4x 7	34.4	52	28	34	7			-	-	1505
	1505S		20	23	25	28	30	35	40	45				45		M5x 7				36	8			1505	1505	-
	1510S		20	23	25	28	30	35	40	45				45						42	11			-	1510	-
	1510C		20	23	25	28	30	35	40	45				42			31.4		24	38	7	24		-	-	1510
	1510R		20	23	25	28	30	35	40	45				45			34.4		28	44	7	30		-	-	1510
	1520S			23	25	28	30	35	40	45				45			34.4		28	50	10	30		-	1520	1520
	2005C				25	28	30	35	40	45		72	H+19	49		M6x10	36.4	60	26	40		20	M8x16	-	-	2005
	2010C				25	28	30	35	40	45		72	H+19	49		M6x10	36.4	60	26	50		30		-	-	2010
	2005S				25	28	30	35	40	45		76	H+20	53		M6x10	40.4	64	34	55		35		-	2005	-
	2005R				25	28	30	35	40	45		68	H+20	50		M4x 7		56	34	40		20		-	-	2005
	2020R				25	28	30	35	40	45		68	H+19.5	50		M5x 7		56	32	70	15	40			-	2020
	2505C					28	30	35	40	45	55	76	H+24	53		M6x10	42.4	64	32	40	10	20			-	2505
	2505R					28	30	35	40	45	55	76	H+21	55		M5x 7	43.4	62	38	60		40	M10x20		-	2505
	2010S					28	30	35	40	45	55	82	H+23	59		M6x10	46.4	70	40	55		35	M8x16		2010/2020	-
	2525R					28	30	35	40	45	55	82	H+23	60			47.4	70	40	90		70			-	2525
	2505S						30	35	40	45	55	76	H+28.5	60	45		47.4	64	32	40		20			2505	-
	2010R							35	40	45	55	84	H+26	67	30		52.4	72	46	60		40			-	2010
	2510S							35	40	45	55	94	H+26	68		M8x12	52.4	80	44	55		35	M10x20		2510/2520	-
	2510R							35	40	45	55	100	H+30	78		M8x12	60.4	86	54	60		40	M10x20		-	2510
	2806R							35	40	45	55	87	H+26	65		M6x10	50.4	75	42	60		40	M8x16		-	2806
	3232R							35	40	45	55	106	H+30	74		M8x12	58.4	86	50	75		55	M10x20		-	3232
	3210R								40	45	55	116	H+33	85		M8x12	67.4	96	58	80		60	M10x20		-	3210
No.802R has 2 holes. No.□□□□C is for C10 Rolled Ball Screws Compact Type.

More Information

Caution: Do not let the nuts overrun or remove the nuts from the screw shafts.
It may cause the balls to fall out or damage the ball recirculation parts.
For accuracy of Rolled Ball Screws, see P.2223 and P.2224.
For Support Units, see P.753~P.778.
For Nut Brackets, see P.780.

General Information - Ball Screws

Ball screw drive - ball screw drive, nut stop - ball screw drive, nut damper - ball screw drive, block shape - ball screw drive, nut mount

Ball Screw Selection Details

- Material: steel

- Coatings: uncoated, LTBC coating, phosphate conversion coating

- Heat treatment: up to 62HRC

- Precision category: C3, C5, C7, C10

- Precision classes: precision class, standard class

- Slope: 1 to 32 mm

- Outer diameter: 6 to 32 mm

- Length (mm): 100 to 2000

- Nut shape: round flange, square flange, compact flange, block shape

Description/Basics

Ball screws are intended for converting rotary motion to linear motion. This can also be done in reverse order from linear to rotary motion. With the ball screws, this is achieved extremely precisely due to their low play. In mechanical engineering, the ball thread drive is an indispensable feature and is indispensable in precision applications. These work in horizontal and vertical orientation, allowing to shift, raise and lower devices.
The ball screws are often driven by motors and shaft couplings, or manually via rotary/crank handles.
When utilising a keyway, it is recommended using a machine key, as these can be combined excellently due to the manufacturing tolerances.
For a smooth process, it is recommended installing the ball screw with a fixed bearing and a floating bearing. This ensures that the ball screw does not bend due to compression and generate vibrations. For this purpose, MISUMI offers the right support units drives in various designs. For more information on how to install ball screws, see the Installation Instructions available as a PDF.
Ball screw nuts are available in different shapes. These enable versatile utilisation, even in confined spaces. Due to their high precision, the ball screws can also provide a high level of repeatability that is necessary in precise positioning applications. These can be utilised, for example, for measuring devices or in 3D printing. It is recommended to use a pre-stressed ball screw for highly precise applications. Due to the pre-tensioning, the axial play is almost zero unlike a conventional ball screw. In addition, MISUMI offers single axis actuators (locating units) for such applications, which as drives are already equipped with precise ball screws.
In smaller applications, a slide screw or a so-called miniature screw drive can be used. Due to their design, these are very compact, but suitable for lower axial loads.
If very high forces occur, a lead screw could also be considered.
Which ball screw is the right one for your application must be calculated based on the existing factors and influences. You can use the selection Ball Screws that is available as a PDF for this purpose. You can also find the service life calculation in this link.
