    Slide Pushers

    Slide Pushers

    Mouse over image to enlarge

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

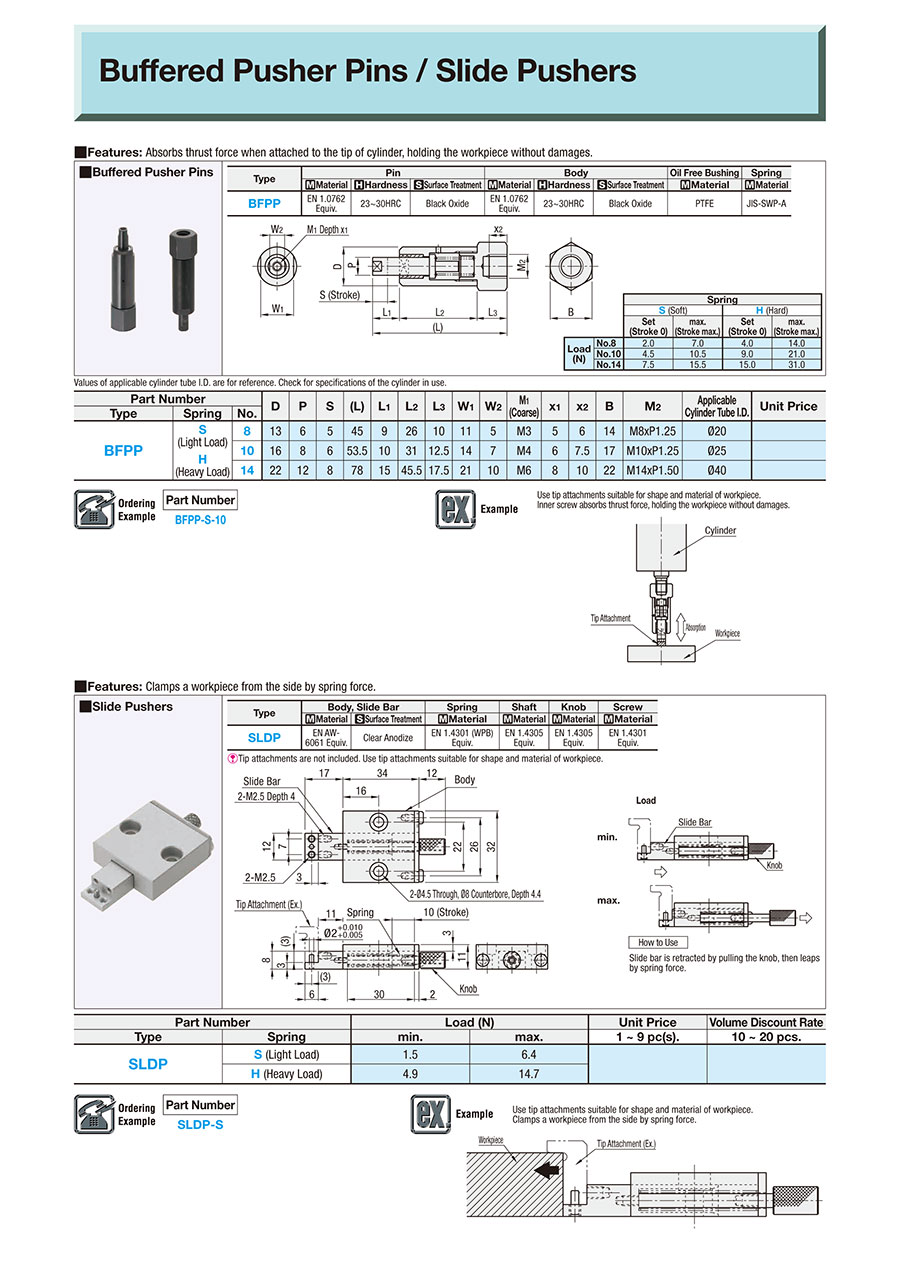

    Outline drawing and specifications table


    [ ! ] Tip attachments are not included.
    Use tip attachments suitable for shape and material of workpiece.    		Load
     How to Use
    Slide bar is retracted when the knob is pulled, and is pushed out
    by spring force when the knob is released.

    TypeBody, Slide BarSpringShaftKnobScrew
    [M] Material[S]Surface Treatment[M] Material[M] Material[M] Material[M] Material
    SLDPEN AW−6061 Equiv.Clear AnodizeEN 1.4301 Equiv. (WPB)EN 1.4305 Equiv.EN 1.4305 Equiv.EN 1.4301 Equiv.



    Specification Table

    Part Number
    SLDP－S
    Part NumberLoad (N)
    TypeSpringmin.max.
    SLDPS (Light Load)1.56.4
    H (Heavy Load)4.914.7

    Part number list

    Number of items
  • 1
    • Part number
    SLDP-H
    SLDP-S

    Springs

    Load (Min.)

    (N)

    Load (Max.)

    (N)

    		Minimum order quantity
    H (Heavy Load)
    4.9
    14.7
    1 pieces
    S (Light Load)
    1.5
    6.4
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    40.49 €26.72 €
    ( 31.80 € )
    Stock item: 1 working dayAvailable for same-day shipping
    40.49 €
    ( 48.18 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features] The spring force clamps the workpiece from the side.

    Outline and specifications

    App. Example


    Use tip attachments suitable for shape and material of workpiece.
    Clamps a workpiece from the side by spring force.
