Inspection Jigs / Unit Bases for inspection
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

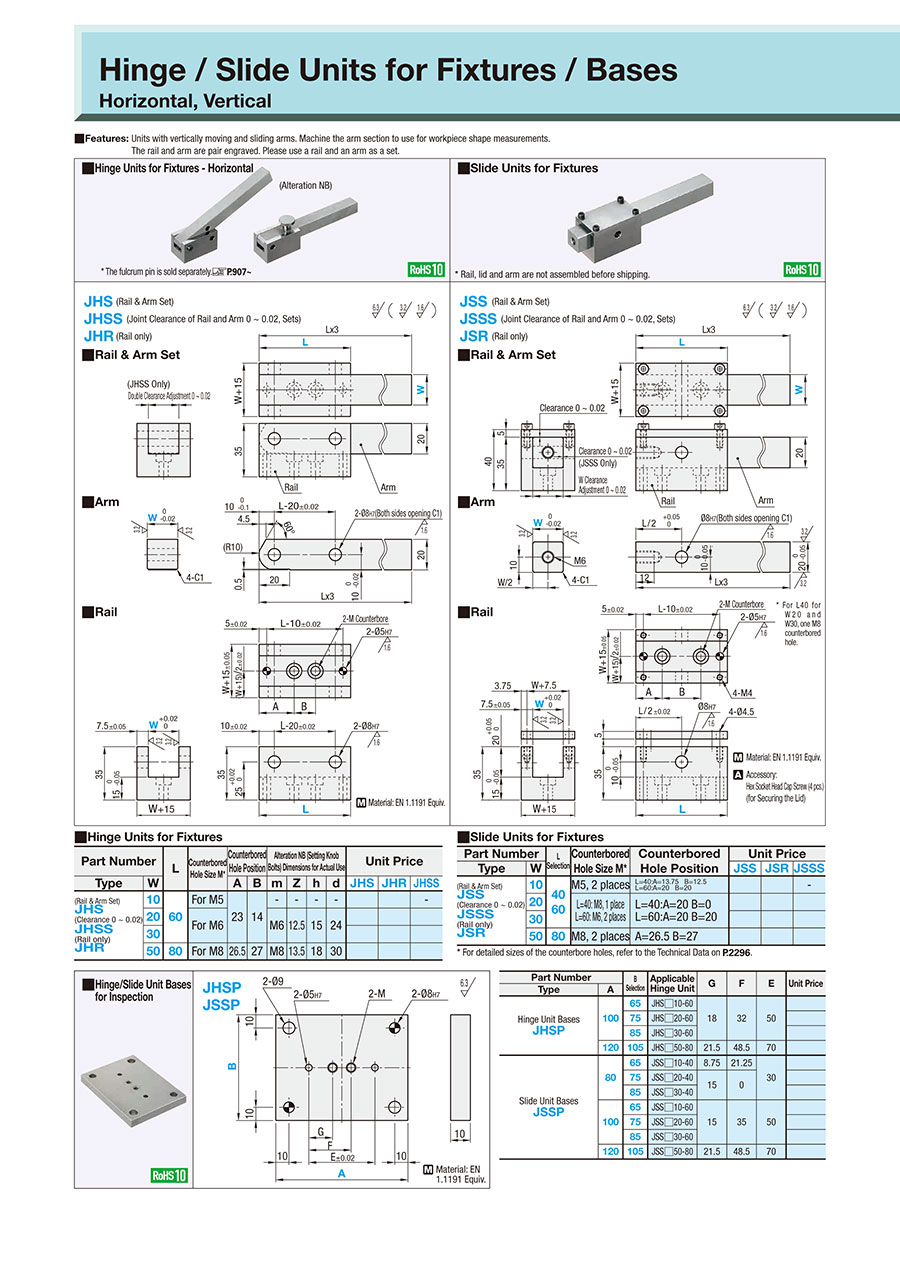

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
Material: EN 1.1191 Equiv.
Specifications
| Part Number | - | L | - | B |
| JHS20 JSS20 JHSP100 JHTS30 | - - - | 60 40 60 | - | 75 |
| Part Number | B Selection | Applicable Hinge Unit | G | F | E | Unit Price | |
| Type | A | ||||||
| Hinge Unit Bases JHSP | 100 | 65 | JHS□10-60 | 18 | 32 | 50 | |
| 75 | JHS□20-60 | ||||||
| 85 | JHS□30-60 | ||||||
| 120 | 105 | JHS□50-80 | 21.5 | 48.5 | 70 | ||
| Slide Unit Bases JSSP | 80 | 65 | JSS□10-40 | 8.75 | 21.25 | 30 | |
| 75 | JSS□20-40 | 15 | 0 | ||||
| 85 | JSS□30-40 | ||||||
| 100 | 65 | JSS□10-60 | 15 | 35 | 50 | ||
| 75 | JSS□20-60 | ||||||
| 85 | JSS□30-60 | ||||||
| 120 | 105 | JSS□50-80 | 21.5 | 48.5 | 70 | ||
Alterations
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| JHSP100-65 |
| JHSP100-75 |
| JHSP100-85 |
| JHSP120-105 |
| JSSP80-65 |
| JSSP80-75 |
| JSSP80-85 |
| JSSP100-65 |
| JSSP100-75 |
| JSSP100-85 |
| JSSP120-105 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Application | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|
25.19 € | 1 | Available | 9 Days | 10 | Hinge Unit Base | 100 | 65 | |
27.72 € | 1 | Available | 9 Days | 10 | Hinge Unit Base | 100 | 75 | |
28.96 € | 1 | Available | 9 Days | 10 | Hinge Unit Base | 100 | 85 | |
35.26 € | 1 | Available | 9 Days | 10 | Hinge Unit Base | 120 | 105 | |
24.56 € | 1 | Available | 9 Days | 10 | Slide Unit Base | 80 | 65 | |
25.19 € | 1 | Available | 9 Days | 10 | Slide Unit Base | 80 | 75 | |
26.44 € | 1 | Available | 9 Days | 10 | Slide Unit Base | 80 | 85 | |
26.44 € | 1 | Available | 9 Days | 10 | Slide Unit Base | 100 | 65 | |
27.72 € | 1 | Available | 9 Days | 10 | Slide Unit Base | 100 | 75 | |
28.96 € | 1 | Available | 9 Days | 10 | Slide Unit Base | 100 | 85 | |
35.26 € | 1 | Available | 9 Days | 10 | Slide Unit Base | 120 | 105 |
Loading...
Example of Use
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
