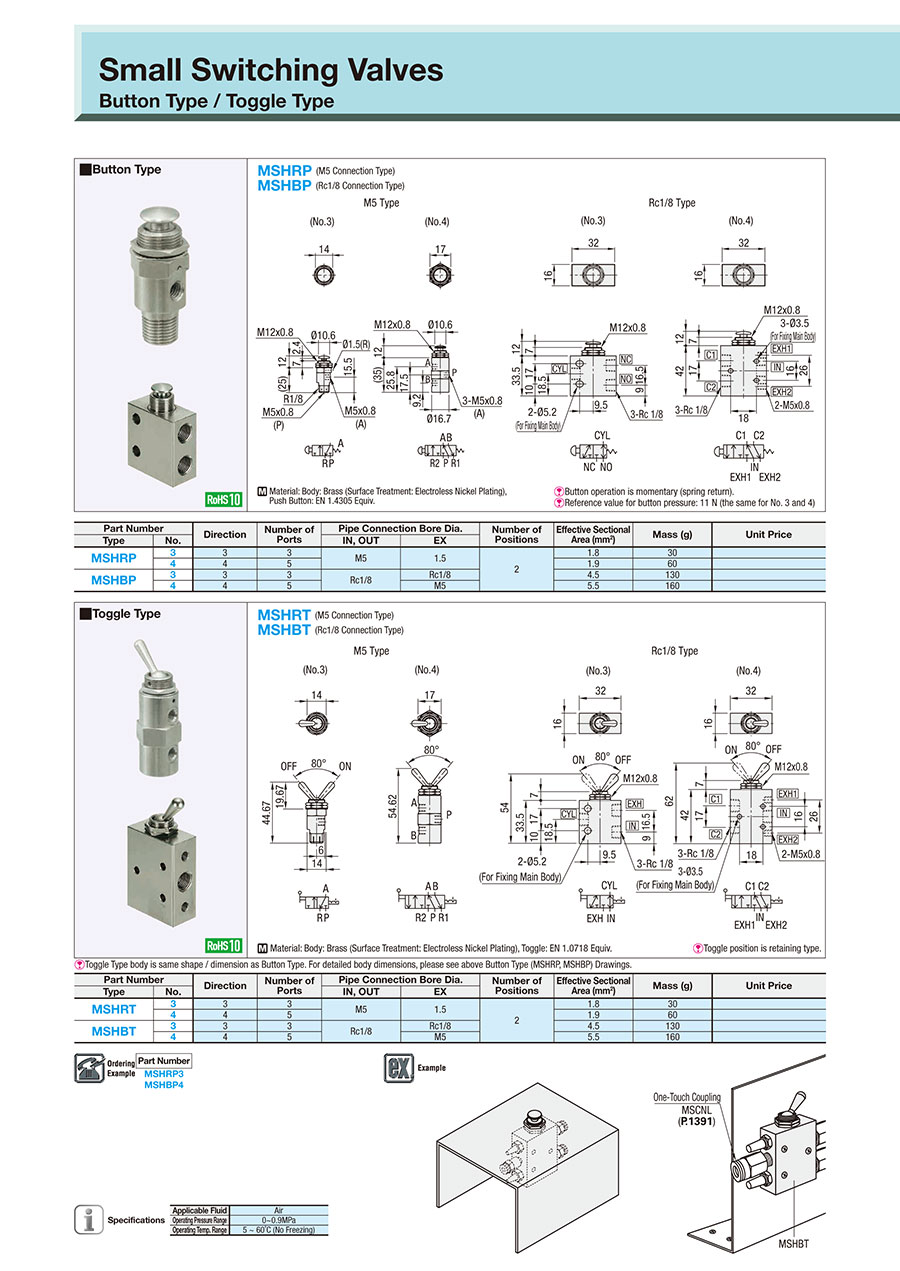

Small Switching Valves / Button Type
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
Specifications
| Part Number |
| MSHRP3 |
| MSHBP4 |
| Part Number | Direction | Number of Ports | Pipe Connection Bore Dia. | Number of Positions | Effective Sectional Area (mm2) | Mass (g) | Unit Price | ||
| Type | No. | IN, OUT | EX | ||||||
| MSHRP | 3 | 3 | 3 | M5 | 1.5 | 2 | 1.8 | 30 | |
| 4 | 4 | 5 | 1.9 | 60 | |||||
| MSHBP | 3 | 3 | 3 | Rc1/8 | Rc1/8 | 4.5 | 130 | ||
| 4 | 4 | 5 | M5 | 5.5 | 160 | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MSHBP3 |
| MSHBP4 |
| MSHRP3 |
| MSHRP4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Number of Ports | Pipe Port Type | Pipe Connection Bore Dia. (IN, OUT) | Effective Sectional Area (mm2) | Mounting Method | Direction | |
|---|---|---|---|---|---|---|---|---|---|---|---|
47.10 € | 1 | Available | 5 Days | 10 | 3 | Rc | Rc1/8 | 4.5 | [Side] Side Surface, Panel Mount | 3 | |
52.00 € | 1 | Available | 5 Days | 10 | 5 | Rc | Rc1/8 | 5.5 | [Side] Side Surface, Panel Mount | 4 | |
34.00 € | 1 | Available | 5 Days | 10 | 3 | M | M5 | 1.8 | [Bottom] Bottom, Panel Mount | - | |
37.65 € | 1 | Available | 5 Days | 10 | 5 | M | M5 | 1.9 | [Side] Side Surface, Panel Mount | - |
Loading...
Example of Use
| Applicable Fluid | Air |
| Operating Pressure Range | 0~0.9MPa |
| Operating Temp. Range | 5 ~ 60˚C (No Freezing) |
Basic information
| Number of Positions | 2 | Switching Operation | Button Type | Plumbing Type and Direction | Direct Side Surface |
|---|---|---|---|---|---|
| Operation Status Retention | Spring Return | Push Button Type | Button Type |
Configure
Basic Attributes
-
Number of Ports
- 3
- 5
-
Pipe Port Type
- M
- Rc
-
Pipe Connection Bore Dia. (IN, OUT)
- M5
- Rc1/8
-
Effective Sectional Area(mm2)
-
Mounting Method
- Side
- Bottom
- Side
-
Direction
- 3
- 4
-
Type
- MSHBP
- MSHRP
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
Switch Valves / Foot Operated / 3-Port / 4-Port
MISUMI Standard Price : 83.62 € Shipping Days: Same day
-
Switch Valves / Manually Operated / Panel Mount / 2-Port / 3-Port
MISUMI Standard Price : 49.62 € Shipping Days: Same day
MISUMI Unit еxample related to this product
