Floating Joints / Backing Plates
Part number:

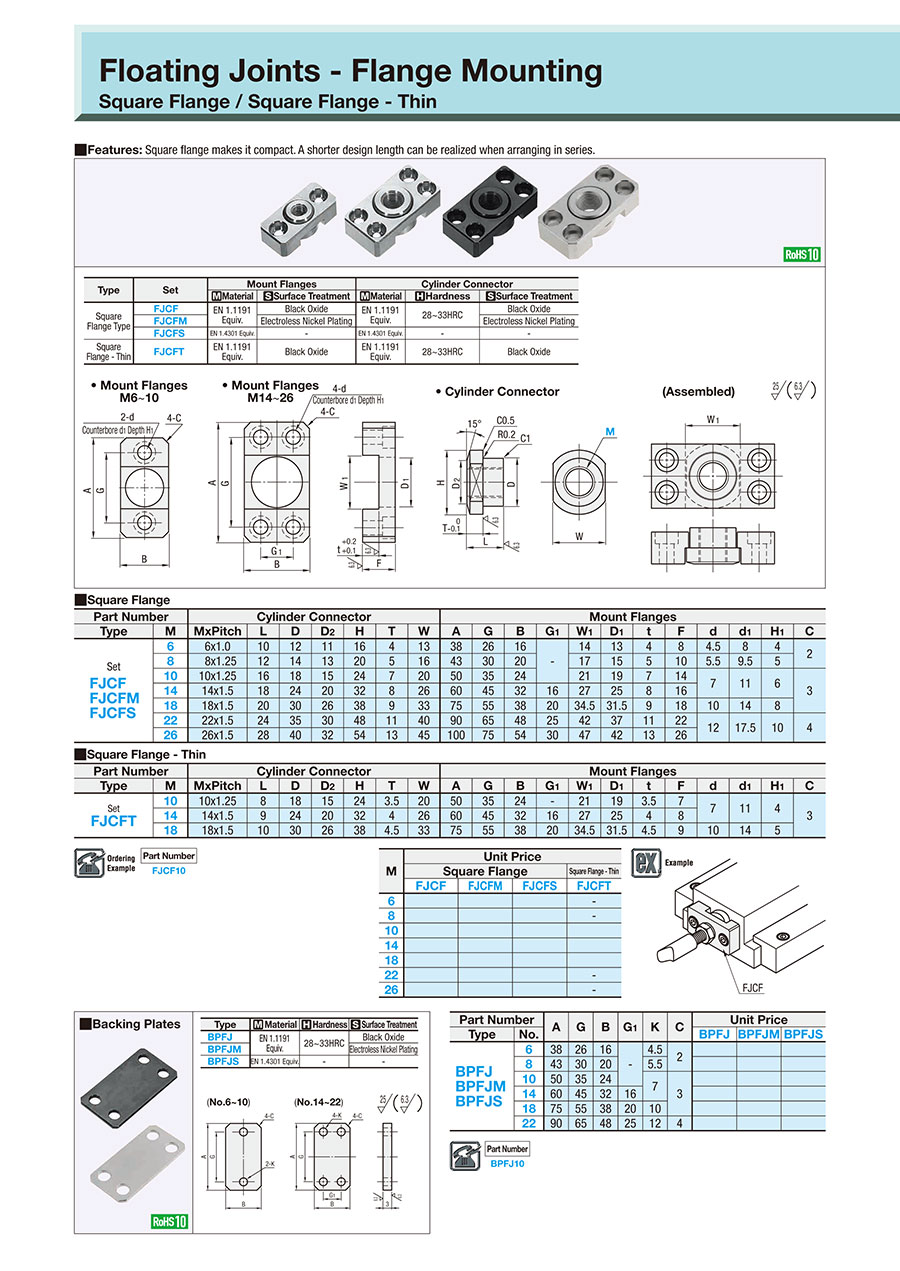

possible part numbers found.Outline drawing and specifications table
(No.6 to 10)
(No.14 to 22)
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m.
| Type | [M] Material | [H] Hardness | [S] Surface Treatment |
| BPFJ | EN 1.1191 Equiv. | 28 to 33HRC | Black Oxide |
| BPFJM | Electroless Nickel Plating | ||
| BPFJS | EN 1.4301 Equiv. | — | — |
Specification Table
| Part Number |
| BPFJ10 |
| Part Number | A | G | B | G1 | K | C | Mass (g) Ref. Value | ||
| Type | No. | Steel product | Stainless steel product | ||||||
| BPFJ BPFJM BPFJS | 6 | 38 | 26 | 16 | — | 4.5 | 2 | 13 | 12 |
| 8 | 43 | 30 | 20 | 5.5 | 18 | 17 | |||
| 10 | 50 | 35 | 24 | 7 | 3 | 25 | 24 | ||
| 14 | 60 | 45 | 32 | 16 | 40 | 39 | |||
| 18 | 75 | 55 | 38 | 20 | 10 | 56 | 55 | ||
| 22 | 90 | 65 | 48 | 25 | 12 | 4 | 87 | 86 | |
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
4.30 € ( 5.12 € ) | 5 working days |
4.56 € ( 5.43 € ) | Stock item: 1 working dayAvailable for same-day shipping |
4.30 € ( 5.12 € ) | Stock item: 1 working dayAvailable for same-day shipping |
5.30 € ( 6.31 € ) | 5 working days |
7.70 € ( 9.16 € ) | 5 working days |
9.87 € ( 11.75 € ) | 5 working days |
5.06 € ( 6.02 € ) | 5 working days |
5.44 € ( 6.47 € ) | 5 working days |
4.56 € ( 5.43 € ) | Stock item: 1 working dayAvailable for same-day shipping |
5.57 € ( 6.63 € ) | 5 working days |
8.10 € ( 9.64 € ) | 5 working days |
10.25 € ( 12.20 € ) | 5 working days |
5.19 € ( 6.18 € ) | 5 working days |
6.08 € ( 7.24 € ) | 5 working days |
4.69 €2.16 € ( 2.57 € ) | Stock item: 1 working dayAvailable for same-day shipping |
5.69 € ( 6.77 € ) | 5 working days |
8.10 € ( 9.64 € ) | 5 working days |
10.25 € ( 12.20 € ) | 5 working days |
More Information
Basic information
Backing plate for each flange type of floating joint flange mounting type.
