Sanitary Piping Conversion Fitting, Male Thread Type, SUS316L

CatalogP.2-1352

Part number:

Still undefined. 6 possible part numbers found.

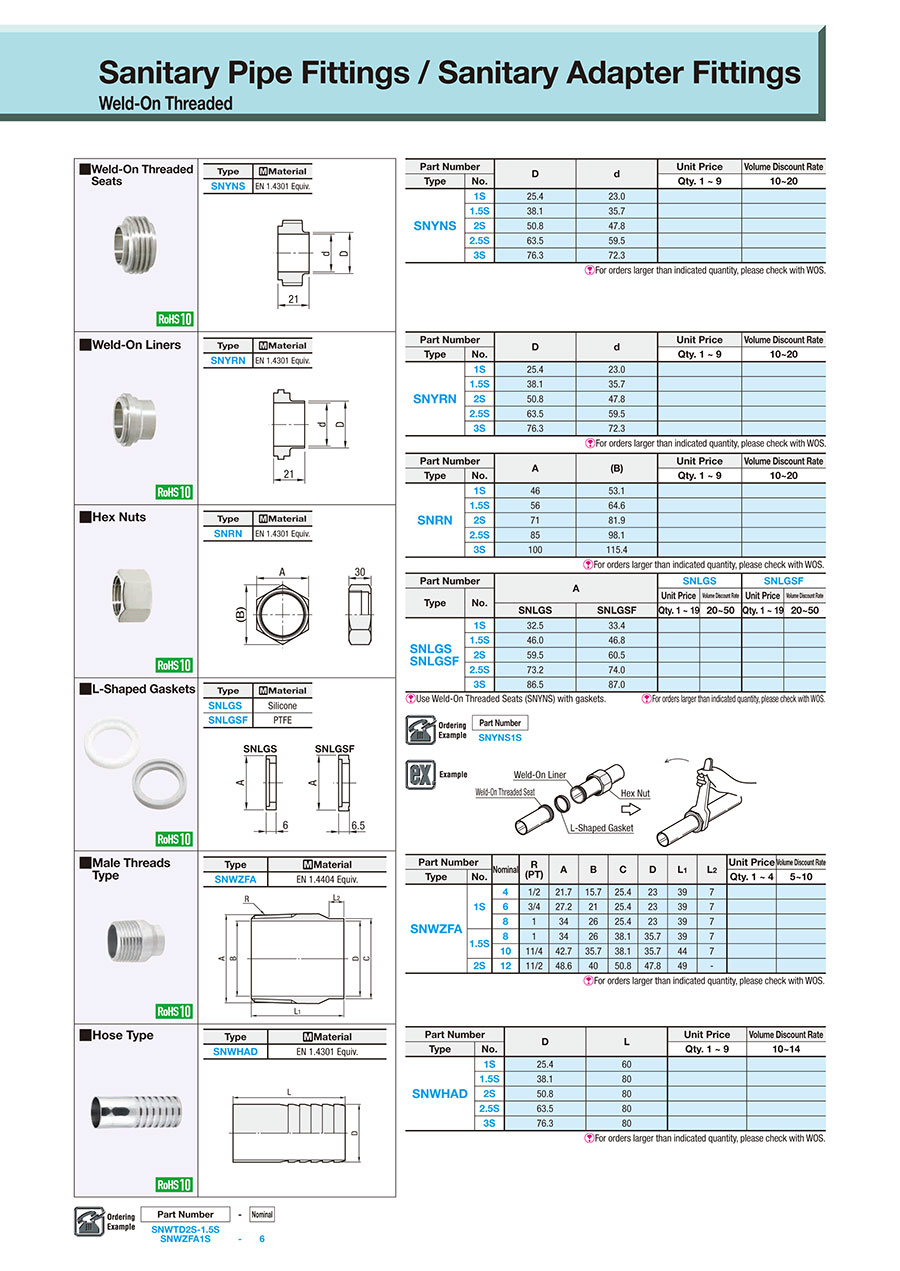

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Type	[M] Material
SNWZFA	EN 1.4404 Equiv.

Specification Table

Part Number	—	Nominal
SNWZFA1S	—	8

Part Number		Nominal	R (PT)	A	B	C	D	L₁	L₂
Type	No.	Nominal	R (PT)	A	B	C	D	L₁	L₂
SNWZFA	1S	4	1/2	21.7	15.7	25.4	23	39	7
		6	3/4	27.2	21	25.4	23	39	7
		8	1	34	26	25.4	23	39	7
	1.5S	8	1	34	26	38.1	35.7	39	7
	1.5S	10	11/4	42.7	35.7	38.1	35.7	44	7
	2S	12	11/2	48.6	40	50.8	47.8	49	—

Part number list

Number of items

Part number

Nominal

(Ø)

I.D. d (d1)

(Ø)

I.D. (Unequal Dia. Only)

(mm)

Screw Dia. Nominal

RoHS?

Minimum order quantity

1.0S	15.7	23	4(R(PT)1/2)	10	1 pieces
1.0S	21	23	6(R(PT)3/4)	10	1 pieces
1.0S	26	23	8 (R (PT) 1)	10	1 pieces
1.5S	26	35.7	8 (R (PT) 1)	10	1 pieces
1.5S	35.7	35.7	10 (R (PT) 1 1/4)	10	1 pieces
2.0S	40	47.8	12(R(PT)1 1/2)	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

42.82 € ( 50.96 € )	5 working days
42.82 € ( 50.96 € )	5 working days
46.60 € ( 55.45 € )	5 working days
54.39 € ( 64.72 € )	5 working days
59.19 € ( 70.44 € )	5 working days
76.82 € ( 91.42 € )	5 working days

More Information

Basic information

Basic information

[Several variations of fittings are available. - Stainless steel.

Catalog

Products homepage

Catalog (2-page spread)
