Side Caster Mounting Plate
Click image to view enlarged image
Part number:

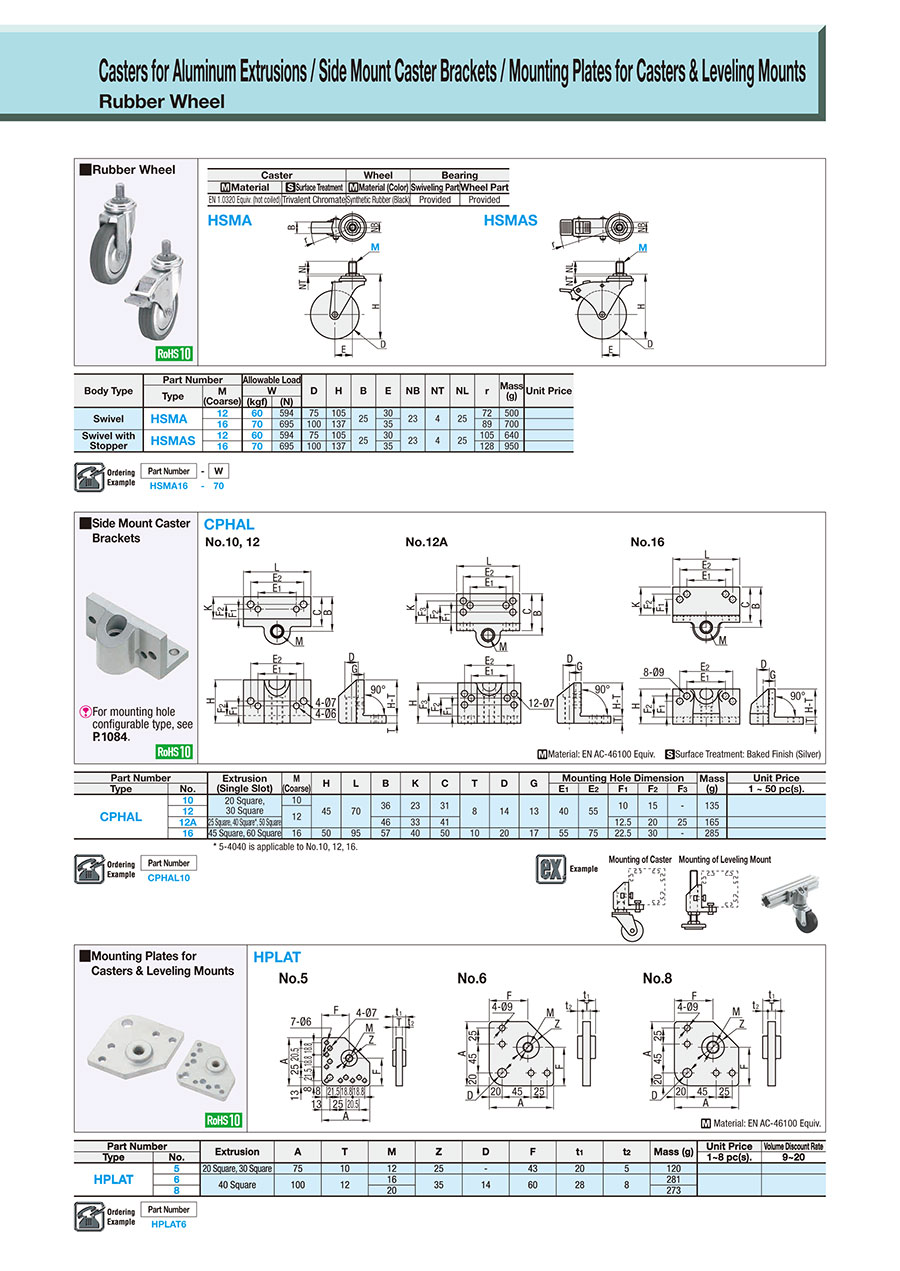

possible part numbers found.Outline drawing and specifications table
Material: EN AC-46100 Equiv.
Surface Treatment: Baked Finish (Silver)
Specifications
| Part Number |
| CPHAL10 |
| Part Number | Extrusion (Single Slot) | M (Coarse) | H | L | B | K | C | T | D | G | Mounting Hole Dimension | Mass (g) | Unit Price | |||||
| Type | No. | E1 | E2 | F1 | F2 | F3 | 1 ~ 50 pc(s). | |||||||||||
| CPHAL | 10 | 20 Square, 30 Square | 10 | 45 | 70 | 36 | 23 | 31 | 8 | 14 | 13 | 40 | 55 | 10 | 15 | - | 135 | |
| 12 | 12 | |||||||||||||||||
| 12A | 25 Square, 40 Square*, 50 Square | 46 | 33 | 41 | 12.5 | 20 | 25 | 165 | ||||||||||
| 16 | 45 Square, 60 Square | 16 | 50 | 95 | 57 | 40 | 50 | 10 | 20 | 17 | 55 | 75 | 22.5 | 30 | - | 285 | ||
Part number list
Number of items
More Information
Basic information
[Features] A fixed side roller mounting plate with flexible mounting holes. [Material] EN AC-46100 Equiv..
Outline and specifications
Example of Use
