Roller Carriers Zigzag Type

Mouse over image to enlarge

CatalogP.1-1174

Part number:

Still undefined. 96 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

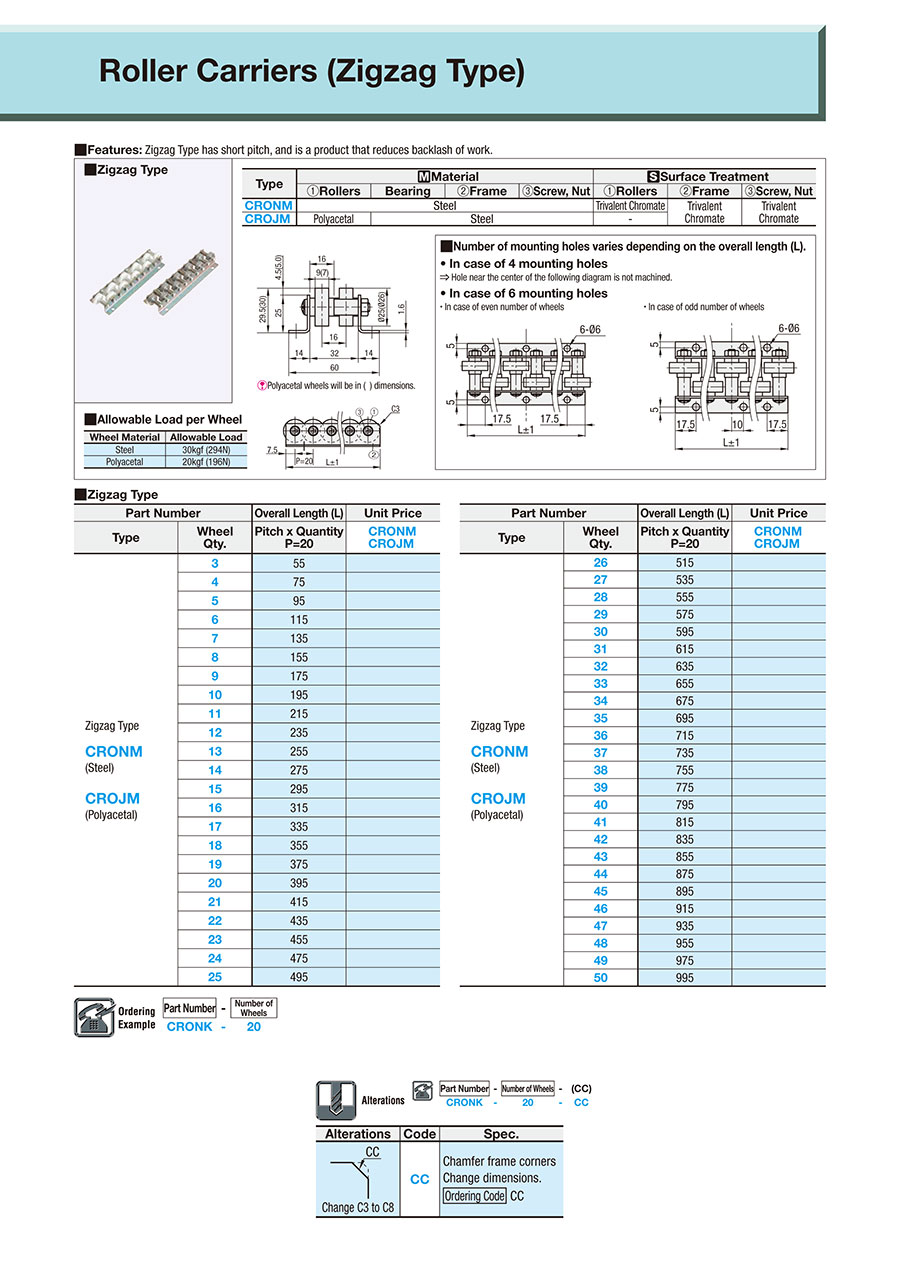

Outline drawing and specifications table

Roller Carriers, Zigzag Type: Related Image

Type	[M] Material				[S] Surface Treatment
	(1) Roller	Bearing	(2) Frame	(3) Screw, Nut	(1) Roller	(2) Frame	(3) Screw, Nut
CRONM	Steel				Trivalent Chromate	Trivalent Chromate	Trivalent Chromate
CROJM	Polyacetal	Steel			—

[ ! ] The end faces of the cut frames have not been surface treated.

Specification Table

Part Number	—	Number of Wheels
CRONK	—	20

■Allowable Load per Wheel

Wheel Material	Load Capacity
Steel	30 kgf (294 N)
Polyacetal	20 kgf (196 N)

Part Number		Overall Length (L)
Type	Wheel Qty.	Pitch × Quantity P = 20
Zigzag Type CRONM (Steel) CROJM Polyacetal	3	55
	4	75
	5	95
	6	115
	7	135
	8	155
	9	175
	10	195
	11	215
	12	235
	13	255
	14	275
	15	295
	16	315
	17	335
	18	355
	19	375
	20	395
	21	415
	22	435
	23	455
	24	475
	25	495

Part Number		Overall Length (L)
Type	Wheel Qty.	Pitch × Quantity P = 20
Zigzag Type CRONM (Steel) CROJM Polyacetal	26	515
	27	535
	28	555
	29	575
	30	595
	31	615
	32	635
	33	655
	34	675
	35	695
	36	715
	37	735
	38	755
	39	775
	40	795
	41	815
	42	835
	43	855
	44	875
	45	895
	46	915
	47	935
	48	955
	49	975
	50	995

Alterations

Part number list

Number of items

Part number

Wheel Width W

(mm)

Allowable Load for Wheel (per pc.)

(kgf)

Wheel O.D. D

(mm)

Wheel Surface Treatment

External Shape Height H

(mm)

Conveyer Length L

(mm)

Number of Wheels

RoHS?

Minimum order quantity

7	20	26	Not Provided	30	55	3	10	1 pieces
7	20	26	Not Provided	30	75	4	10	1 pieces
7	20	26	Not Provided	30	95	5	10	1 pieces
7	20	26	Not Provided	30	115	6	10	1 pieces
7	20	26	Not Provided	30	135	7	10	1 pieces
7	20	26	Not Provided	30	155	8	10	1 pieces
7	20	26	Not Provided	30	175	9	10	1 pieces
7	20	26	Not Provided	30	195	10	10	1 pieces
7	20	26	Not Provided	30	215	11	10	1 pieces
7	20	26	Not Provided	30	235	12	10	1 pieces
7	20	26	Not Provided	30	255	13	10	1 pieces
7	20	26	Not Provided	30	275	14	10	1 pieces
7	20	26	Not Provided	30	295	15	10	1 pieces
7	20	26	Not Provided	30	315	16	10	1 pieces
7	20	26	Not Provided	30	335	17	10	1 pieces
7	20	26	Not Provided	30	355	18	10	1 pieces
7	20	26	Not Provided	30	375	19	10	1 pieces
7	20	26	Not Provided	30	395	20	10	1 pieces
7	20	26	Not Provided	30	415	21	10	1 pieces
7	20	26	Not Provided	30	435	22	10	1 pieces
7	20	26	Not Provided	30	455	23	10	1 pieces
7	20	26	Not Provided	30	475	24	10	1 pieces
7	20	26	Not Provided	30	495	25	10	1 pieces
7	20	26	Not Provided	30	515	26	10	1 pieces
7	20	26	Not Provided	30	535	27	10	1 pieces
7	20	26	Not Provided	30	555	28	10	1 pieces
7	20	26	Not Provided	30	575	29	10	1 pieces
7	20	26	Not Provided	30	595	30	10	1 pieces
7	20	26	Not Provided	30	615	31	10	1 pieces
7	20	26	Not Provided	30	635	32	10	1 pieces
7	20	26	Not Provided	30	655	33	10	1 pieces
7	20	26	Not Provided	30	675	34	10	1 pieces
7	20	26	Not Provided	30	695	35	10	1 pieces
7	20	26	Not Provided	30	715	36	10	1 pieces
7	20	26	Not Provided	30	735	37	10	1 pieces
7	20	26	Not Provided	30	755	38	10	1 pieces
7	20	26	Not Provided	30	775	39	10	1 pieces
7	20	26	Not Provided	30	795	40	10	1 pieces
7	20	26	Not Provided	30	815	41	10	1 pieces
7	20	26	Not Provided	30	835	42	10	1 pieces
7	20	26	Not Provided	30	855	43	10	1 pieces
7	20	26	Not Provided	30	875	44	10	1 pieces
7	20	26	Not Provided	30	895	45	10	1 pieces
7	20	26	Not Provided	30	915	46	10	1 pieces
7	20	26	Not Provided	30	935	47	10	1 pieces
7	20	26	Not Provided	30	955	48	10	1 pieces
7	20	26	Not Provided	30	975	49	10	1 pieces
7	20	26	Not Provided	30	995	50	10	1 pieces
9	30	25	Trivalent Chromate	29.5	55	3	10	1 pieces
9	30	25	Trivalent Chromate	29.5	75	4	10	1 pieces
9	30	25	Trivalent Chromate	29.5	95	5	10	1 pieces
9	30	25	Trivalent Chromate	29.5	115	6	10	1 pieces
9	30	25	Trivalent Chromate	29.5	135	7	10	1 pieces
9	30	25	Trivalent Chromate	29.5	155	8	10	1 pieces
9	30	25	Trivalent Chromate	29.5	175	9	10	1 pieces
9	30	25	Trivalent Chromate	29.5	195	10	10	1 pieces
9	30	25	Trivalent Chromate	29.5	215	11	10	1 pieces
9	30	25	Trivalent Chromate	29.5	235	12	10	1 pieces
9	30	25	Trivalent Chromate	29.5	255	13	10	1 pieces
9	30	25	Trivalent Chromate	29.5	275	14	10	1 pieces
