Conveyor Stands / H Type
Click on this image to zoom in.
Click on this image to zoom in.

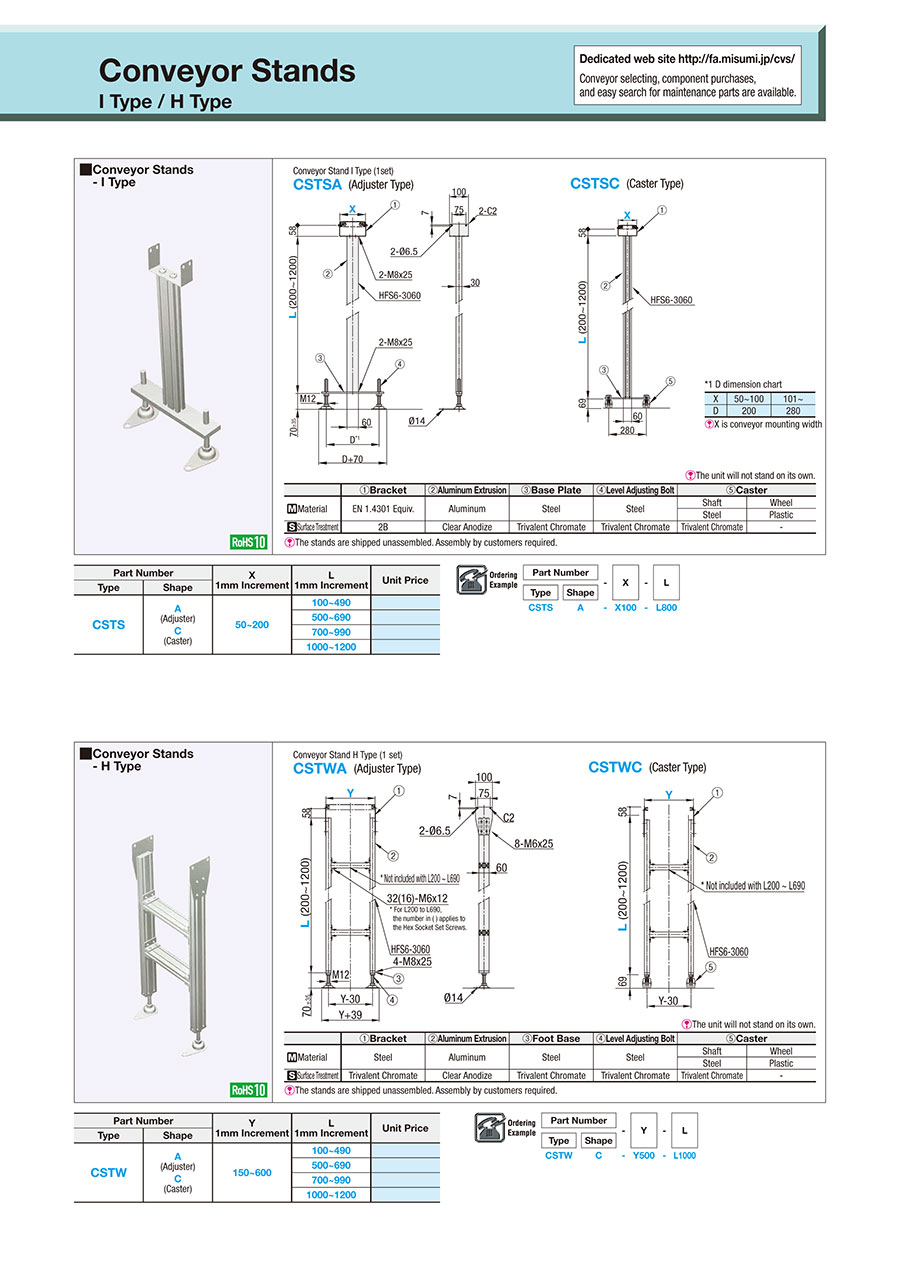

[Features] This is a stand specifically for conveyor belts. -It is an H-shaped stand.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
| Bracket | Aluminum Extrusion | Foot Base | Level Adjusting Bolt | Caster | ||
| Material | Steel | Aluminum | Steel | Steel | Shaft | Wheel |
| Steel | Plastic | |||||
| Surface Treatment | Trivalent Chromate | Clear Anodize | Trivalent Chromate | Trivalent Chromate | Trivalent Chromate | - |
Specifications
| Part Number | - | Y | - | L | ||
| Type | Shape | |||||
| CSTW | C | - | Y500 | - | L1000 | |
| Part Number | Y 1mm Increment | L 1mm Increment | Unit Price | |
| Type | Shape | |||
| CSTW | A (Adjuster) C (Caster) | 150~600 | 100~490 | |
| 500~690 | ||||
| 700~990 | ||||
| 1000~1200 | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| CSTWA-Y[150-600/1]-L[100-1200/1] |
| CSTWC-Y[150-600/1]-L[200-1200/1] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Type | Length [L] (mm) | Width [Y] (mm) | |
|---|---|---|---|---|---|---|---|
| 1 | 7 Days | 10 | Adjuster Type (A) | 100 ～ 1200 | 150 ～ 600 | ||
| 1 | 7 Days | 10 | Caster Type (C) | 200 ～ 1200 | 150 ～ 600 |
Loading...
Basic information
| Applicable Conveyor Type | Flat Belt Conveyors |
|---|
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
