    [Simplified Adjustments] Rotational Adjustment Units

    [Simplified Adjustments] Rotational Adjustment Units

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

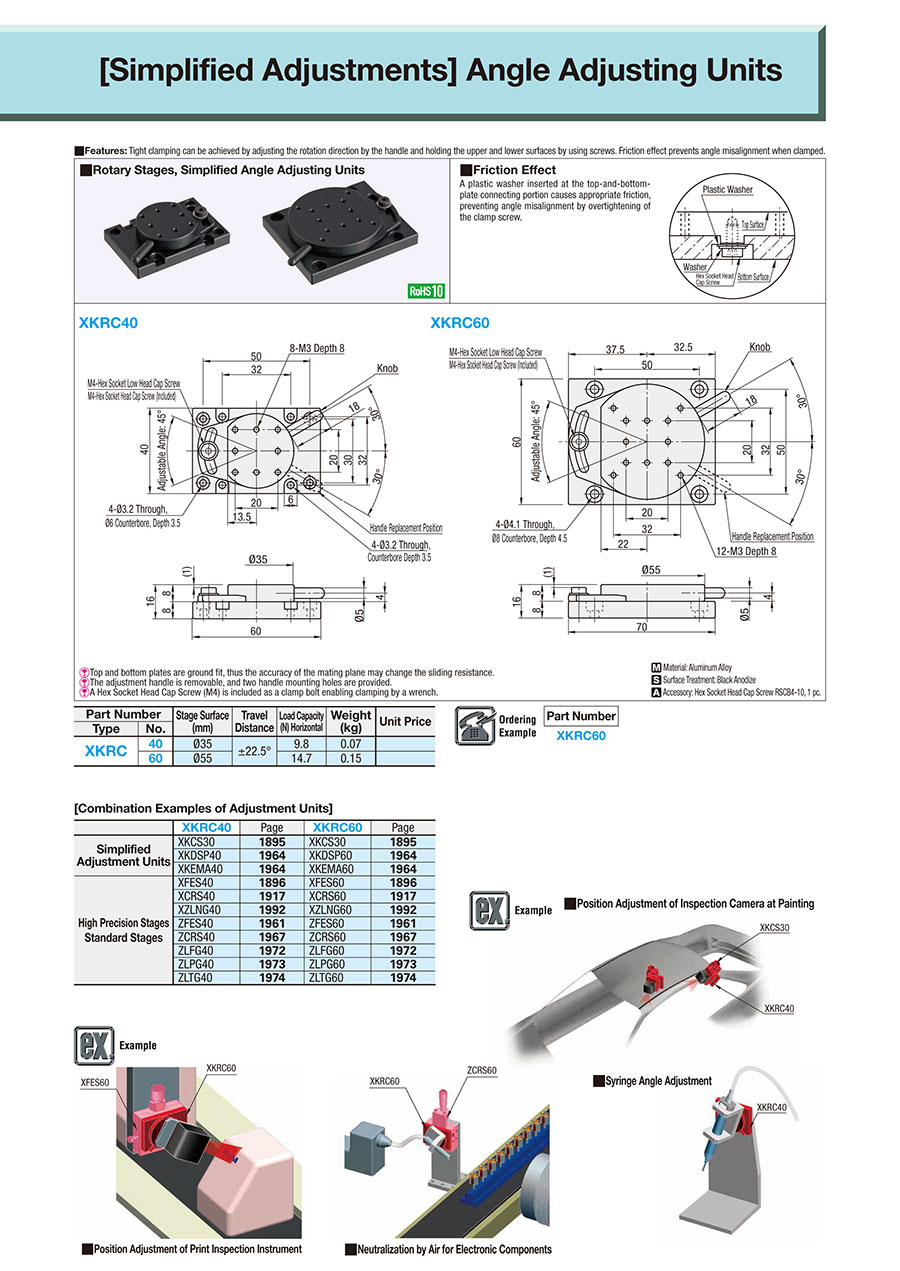

    Outline drawing and specifications table

    XKRC40
    XKRC60
    [ ! ] Top and bottom plates are ground fit, thus the accuracy of the mating plane may change the sliding resistance.
    [ ! ] The adjustment knob is removable, and two knob mounting holes are provided.
    [ ! ] A Hex Socket Head Cap Screw (M4) is included as a clamp bolt enabling clamping by a wrench.
    Accessory: Hex Socket Head Cap Screw RSCB4-10, 1 pc.
    Material: Aluminum Alloy
    Surface Treatment: Black Anodize


    Specification Table

    Part Number
    XKRC60
    Part NumberStage Surface (mm)Travel DistanceLoad Capacity (N) HorizontalWeight
    (kg)
    TypeNo.
    XKRC40⌀35±22.5°9.80.07
    60⌀5514.70.15
    [Combination Examples of Adjustment Units]
     XKRC40XKRC60
    Simplified Adjustment UnitsXKCS30XKCS30
    XKDSP40XKDSP60
    XKEMA40XKEMA60
    High Precision Stages
    Standard Stages    		XFES40XFES60
    XCRS40XCRS60
    XZLNG40XZLNG60
    ZFES40ZFES60
    ZCRS40ZCRS60
    ZLFG40ZLFG60
    ZLPG40ZLPG60
    ZLTG40ZLTG60

    Part number list

    Number of items
  • 1
    • Part number
    XKRC40
    XKRC60

    Table Size (Length) L

    (mm)

    Table Size (Width) W

    (mm)

    		RoHS?Minimum order quantity
    31
    35
    10
    1 pieces
    49.5
    55
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    56.68 €
    ( 67.45 € )
    5 working days
    69.27 €31.86 €
    ( 37.91 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    Technical information

    Outline and specifications

    Specifications/Overview

    ■Friction Effect:
    A plastic washer inserted at the top-and-bottom-plate connecting portion causes
    appropriate friction, preventing angle misalignment by overtightening of the clamp screw
    .

    App. Example

    ■Position Adjustment of Inspection Camera at Painting
    ■Syringe Angle Adjustment
    ■Position Adjustment of Print Inspection Instrument
    ■Neutralization by Air for Electronic Components
