[Standard] Horizontal Z-Axis / Linear Ball / Micrometer Head
![[Standard] Horizontal Z-Axis / Linear Ball / Micrometer Head](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/10302463850.jpg?$product_main$)
- Promotional pricing
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information

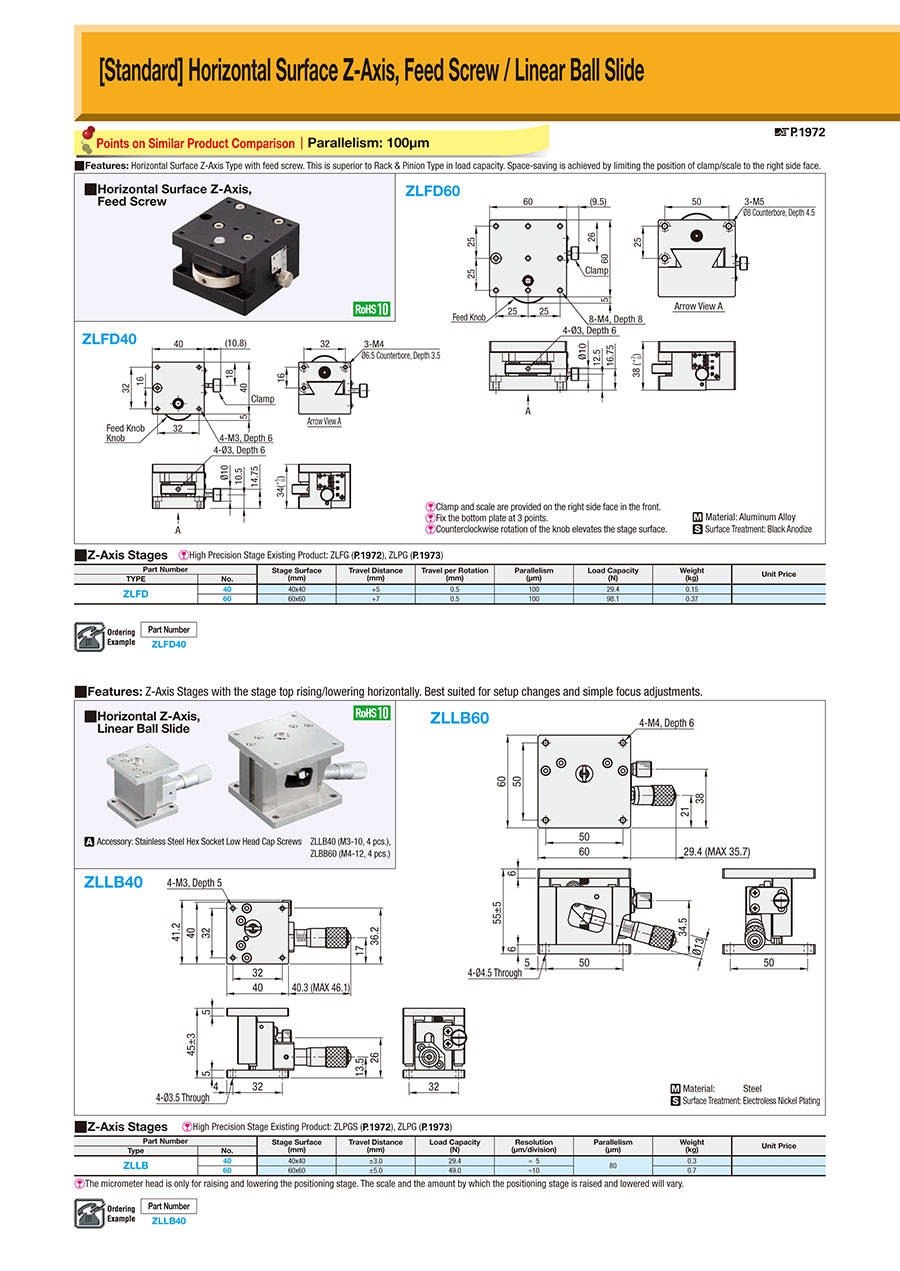

![[Standard] Horizontal Z-Axis/Linear Ball/Micrometer Head:Related Image](http://uk.misumi-ec.com/linked/item/10302463850/img/drw_01.gif)
Material: Steel
Surface Treatment: Electroless Nickel Plating
ZLBB60 (M4-12, 4 pcs.)
Specifications
| Part Number |
| ZLLB40 |
High Precision Stage Existing Product: ZLPGS (P.1972), ZLPG (P.1973)
| Part Number | Stage Surface (mm) | Travel Distance (mm) | Load Capacity (N) | Resolution (µm/division) | Parallelism (µm) | Weight (kg) | Unit Price | |
| Type | No. | |||||||
| ZLLB | 40 | 40x40 | ±3.0 | 29.4 | ≈ 5 | 80 | 0.3 | |
| 60 | 60x60 | ±5.0 | 49.0 | ≈10 | 0.7 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| ZLLB40 |
| ZLLB60 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Table Size (Length) L (Range Selectable) (mm) | Table Size (Width) W (Range Selectable) (mm) | Load Capacity (Range Selectable) (N) | Table Size (Thickness) H (Range Selectable) (mm) | Table Size (Length) L (mm) | Table Size (Width) W (mm) | Allowable Load (N) | Travel Distance (Z-Axis) (mm) | Table Size (Thickness) H (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
409.30 € 176.00 € | 1 |
Same day
Stock | 10 | 26 to 40 | 26 to 40 | 5 to 30 | 40.1 to 50 | 40 | 40 | 29.4 | ±3 | 48 | ||
433.86 € | 1 | 5 Days | 10 | 41 to 60 | 41 to 60 | 30.1 to 50 | 50.1 to 60 | 60 | 60 | 49 | ±5 | 60 |
Loading...
Basic information
| Type | Horizontal Surface Z-Axis | Travel Distance (Range Selectable) | Up to ±10mm | Table Material | EN 1.4125 Equiv. |
|---|---|---|---|---|---|
| Table Surface Treatment | Electroless Nickel Plating | Guiding Mechanism | Linear Ball | Z-Axis Stage Surface | Horizontal Surface Z-Axis |
| Through Hole (Table Center Hole) | Not Provided | Table Parallelism(µm) | 80 | Feed Knob Position | Center |
| Clamp | Standard | Reversed | Standard | Feeding Method (Micrometer Type) | Standard |
| Feeding Method (Feeding Pitch)(mm) | 0.5 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Table Size (Length) L (Range Selectable)(mm)
-
Table Size (Width) W (Range Selectable)(mm)
-
Load Capacity (Range Selectable)(N)
- 5 to 30
- 30.1 to 50
-
Table Size (Thickness) H (Range Selectable)(mm)
-
Table Size (Length) L(mm)
-
Table Size (Width) W(mm)
-
Allowable Load(N)
-
Travel Distance (Z-Axis)(mm)
-
Table Size (Thickness) H(mm)
-
Type
- ZLLB
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
- Technical Support
- Tel：+49 69 668173-0 / FAX：+49 69 668173-360
- Technical Inquiry
