      One-Sided Rollers

      One-Sided Rollers

      Part number:

      Still undefined. 7 possible part numbers found.
      Quantity:

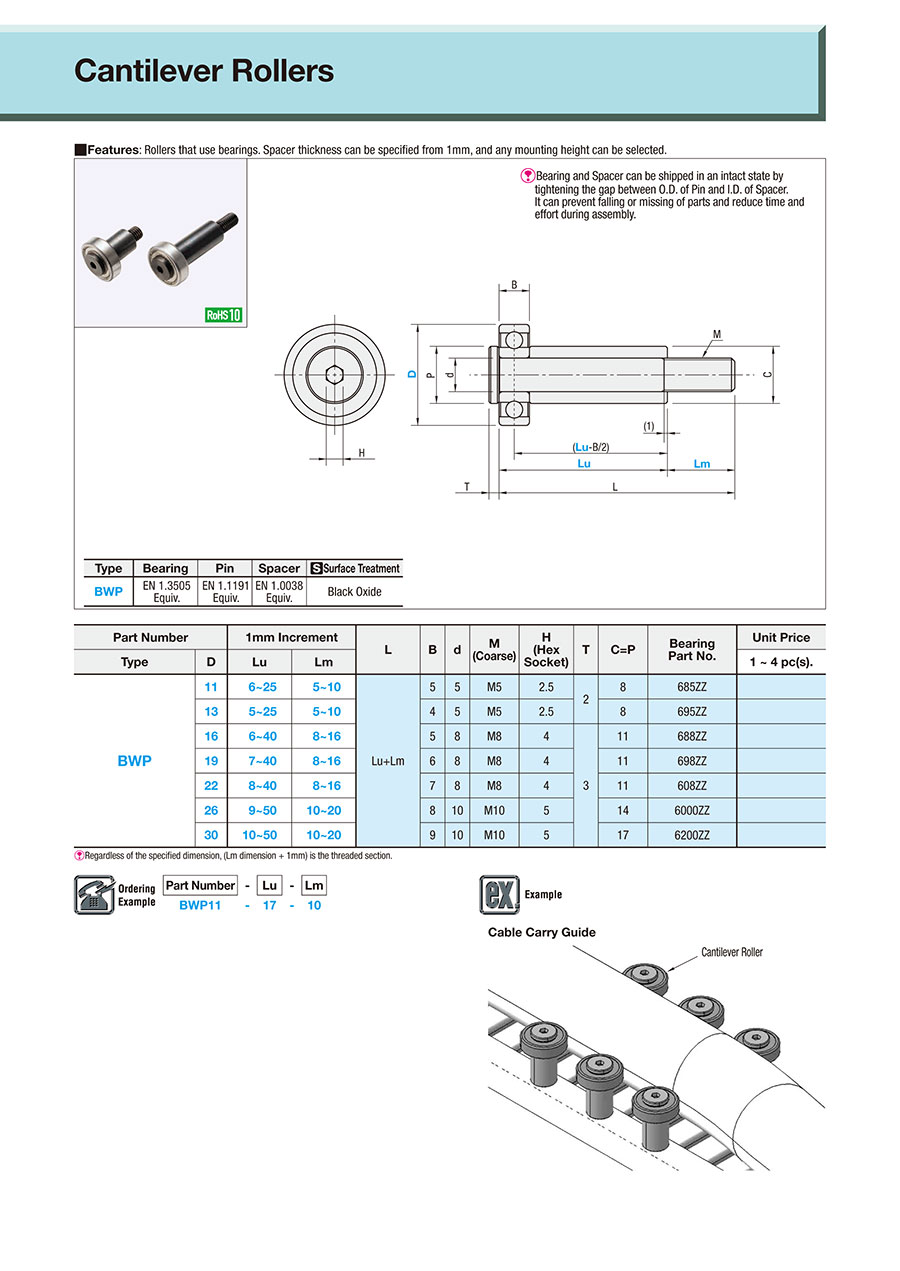

      Outline drawing and specifications table

      Cantilever Rollers: Related Image
       BearingPinSpacer
      MaterialEN 1.3505 Equiv.EN 1.1191 Equiv.EN 1.0038 Equiv.
      Surface Treatment—Black OxideBlack Oxide

      Specification Table

      Part Number—Lu—Lm
      BWP11—17—10
      Part Number1 mm IncrementsLBdM
      (Coarse)      		H
      (Hex Socket)      		TC=PBearing
      Part No.
      TypeDLuLm
      BWP11 6 to 25 5 to 10Lu + Lm55M52.528685ZZ
      13 5 to 25 5 to 1045M52.58695ZZ
      16 6 to 40 8 to 1658M84311688ZZ
      19 7 to 40 8 to 1668M8411698ZZ
      22 8 to 40 8 to 1678M8411608ZZ
      26 9 to 5010 to 20810M105146000ZZ
      3010 to 5010 to 20910M105176200ZZ
      [ ! ] Regardless of the specified dimension, (Lm dimension + 1 mm) is the threaded section.

      Part number list

      Number of items
    • 1
      • Part number
      BWP11-[6-25/1]-[5-10/1]
      BWP13-[5-25/1]-[5-10/1]
      BWP16-[6-40/1]-[8-16/1]
      BWP19-[7-40/1]-[8-16/1]
      BWP22-[8-40/1]-[8-16/1]
      BWP26-[9-50/1]-[10-20/1]
      BWP30-[10-50/1]-[10-20/1]

      O.D.

      (Ø)

      I.D. d

      (mm)

      B

      (mm)

      M (Coarse)

      (Ø)

      C

      Lm

      (mm)

      Lu

      (mm)

      		RoHS?Minimum order quantity
      11
      5
      5
      M5
      8
      5 ～ 10
      6 ～ 25
      10
      1 pieces
      13
      5
      4
      M5
      8
      5 ～ 10
      5 ～ 25
      10
      1 pieces
      16
      8
      5
      M8
      11
      8 ～ 16
      6 ～ 40
      10
      1 pieces
      19
      8
      6
      M8
      11
      8 ～ 16
      7 ～ 40
      10
      1 pieces
      22
      8
      7
      M8
      11
      8 ～ 16
      8 ～ 40
      10
      1 pieces
      26
      10
      8
      M10
      14
      10 ～ 20
      9 ～ 50
      10
      1 pieces
      30
      10
      9
      M10
      17
      10 ～ 20
      10 ～ 50
      10
      1 pieces
      Unit price (excluding VAT)(Unit price including VAT)
      Standard shipping days
      -
      ( - )
      7 working days
      -
      ( - )
      7 working days
      -
      ( - )
      7 working days
      -
      ( - )
      7 working days
      -
      ( - )
      7 working days
      -
      ( - )
      7 working days
      -
      ( - )
      7 working days
    • 1

      • More Information

      Outline and specifications

      Specifications / Overview

      [ ! ] Bearing and Spacer can be shipped in an intact state
      by tightening the gap between O.D. of Pin and I.D. of Spacer.
      It can prevent falling or missing of parts and reduce time and effort during assembly.

      App. Example

      Cable Carry Guide
      Cantilever Rollers: Related Image
